ADS7042EVM-PDK Initial Setup
Complete the following steps to install the software:
Step 1. Ensure that the microSD memory cards on both the Simple Capture Card and ADS7042 are
installed.
Step 2. Verify jumpers are in the factory-default positions and connect the hardware.
Step 3. Locate, copy and install the ADS7042EVM software to the PC.
Step 4. Complete the device driver installation.
Each of these steps is described in the following subsections.
5.2.1 Install the microSD Memory Cards on the Simple Capture Card Controller Board
As mentioned in the previous section, the ADS7042EVM-PDK includes two microSD memory cards. One
is installed on the microSD socket (P6) at the back of the Simple Capture Card as shown in
second microSD memory card is installed on the mircoSD socket (J2) at the back of the ADS7042EVM as
shown in Figure 4.

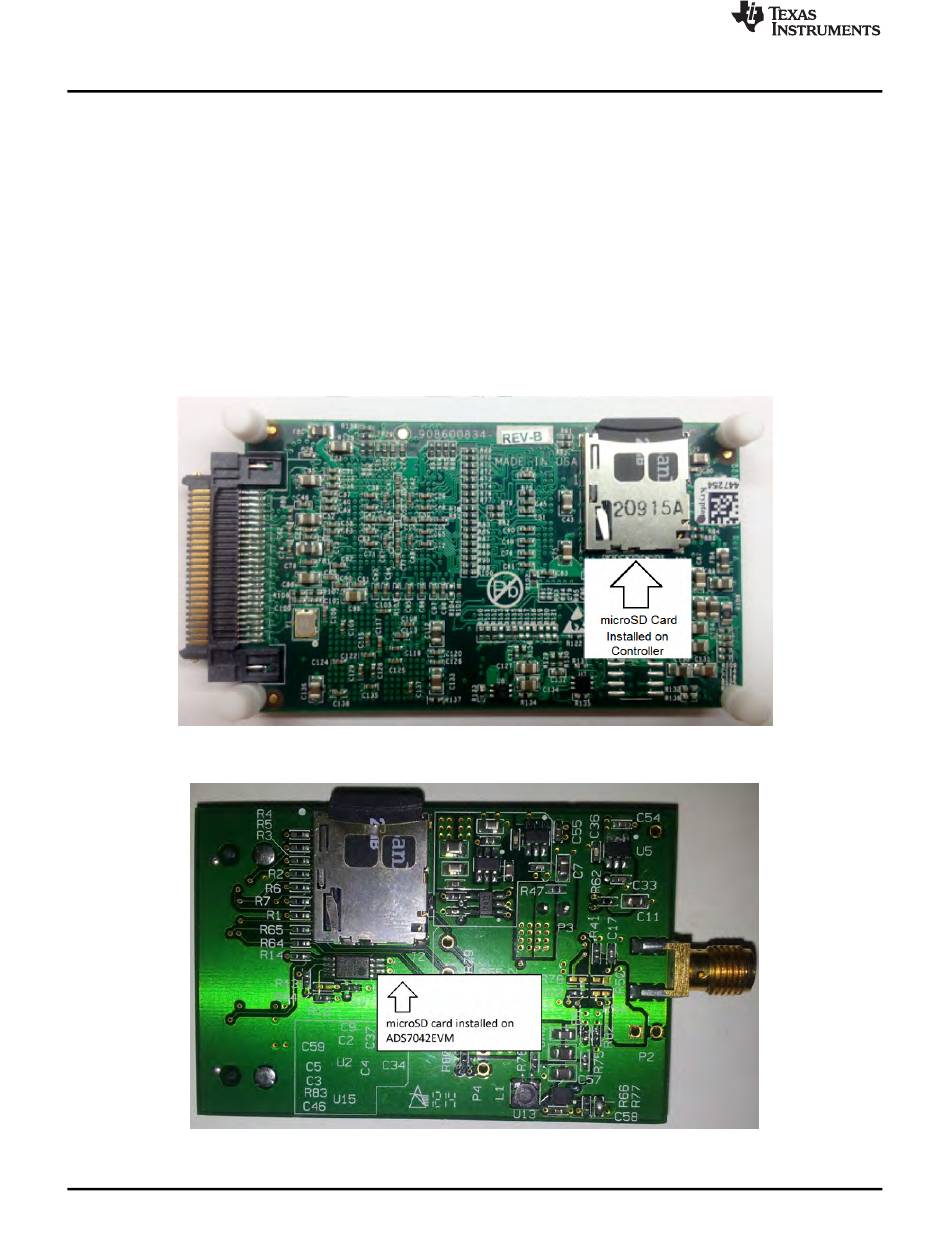

Figure 3. Bottom View of Simple Capture Card with microSD Memory Card Installed
Figure 4. Bottom View of ADS7042EVM Board with microSD Memory Card Installed
