www.ti.com
The microSD memory card is formatted at the factory with the necessary firmware files for the Simple
Capture Card to boot properly. In addition to this the microSD card on the EVM contain Simple Capture
Card firmware files (app and MLO files) and the ADS7042EVM-PDK software installation files inside the
ADS7042 EVM V#.#.# folder. <V#.#.#> refers to the installation software version number, and increments
with software installer releases.
5.2.2 Verify Jumpers are in the Factory-Default Position and Connect the Hardware
The ADS7042EVM-PDK includes both the ADS7042EVM and the Simple Capture Card; however, the
boards are shipped unconnected.
Follow these steps to verify that ADS7042EVM-PDK kit is configured and connected properly:
Step 1. Verify the ADS7042EVM jumpers are configured as shown in
Step 2. Verify the microSD card is installed on the back of the Simple Capture Card, as shown in
Figure
Step 3. Verify the microSD card is installed on the back of the EVM board, as shown in
Step 4. Connect the ADS7042EVM board to the Simple Capture Card as

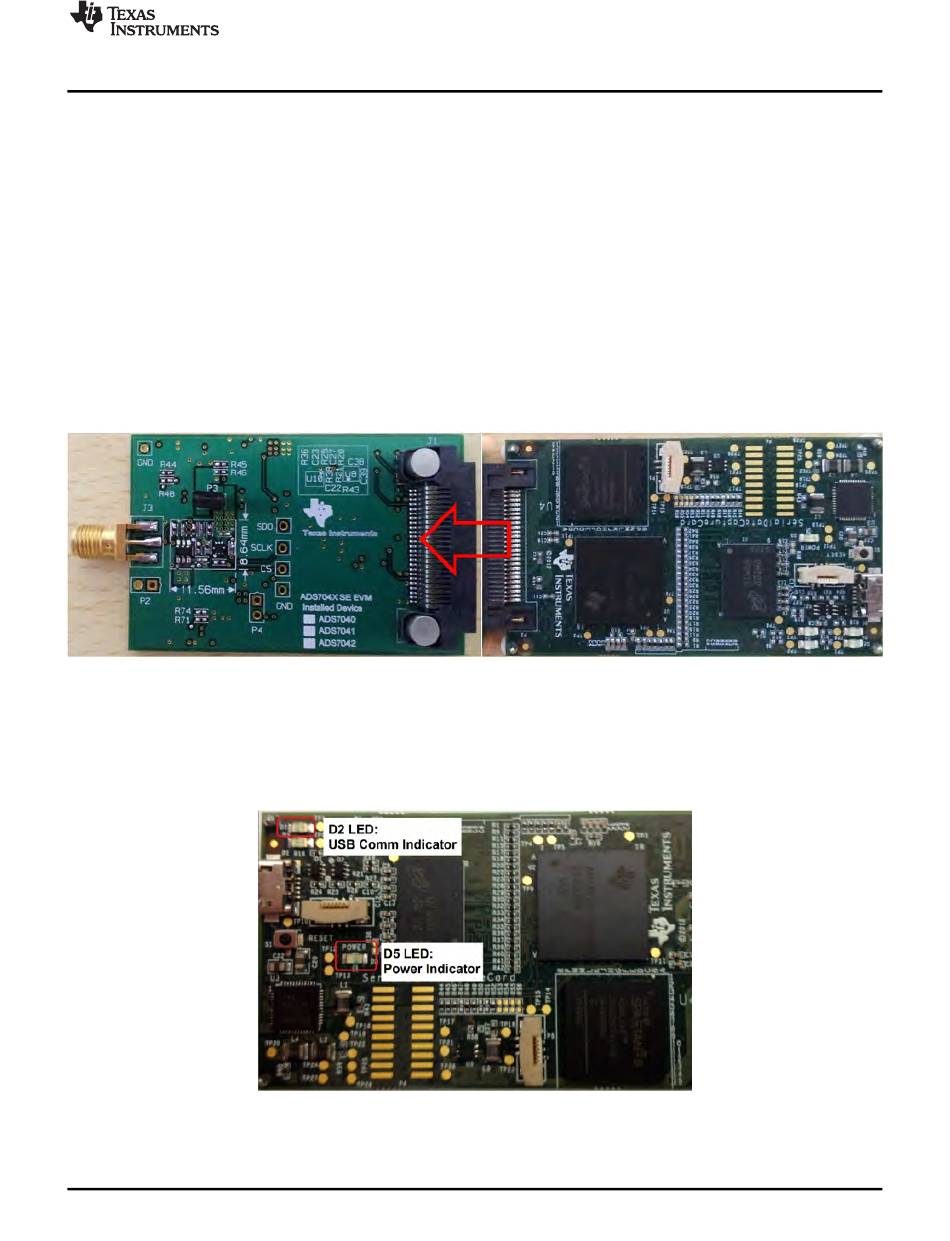

Figure 5. Connecting ADS7042EVM Board to Simple Capture Card
Step 5. Connect the Simple Capture Card to the PC through the micro USB cable.
Step 6. Verify that the LED D5 Power Good indicator is illuminated. Wait approximately ten seconds
and verify that diode D2 blinks, indicating that USB communication with the host PC is
functioning properly.
Card.
SBAU234A – October 2014 – Revised November 2014
Submit Documentation Feedback
3.
Figure 6 shows the location of the LED indicators in the Simple Capture
Figure 6. LED Indicators on the Simple Capture Card
Copyright © 2014, Texas Instruments Incorporated
ADS7042EVM-PDK Initial Setup
Figure 2.
Figure 4.
Figure 5 illustrates.
ADS7042EVM-PDK
7
