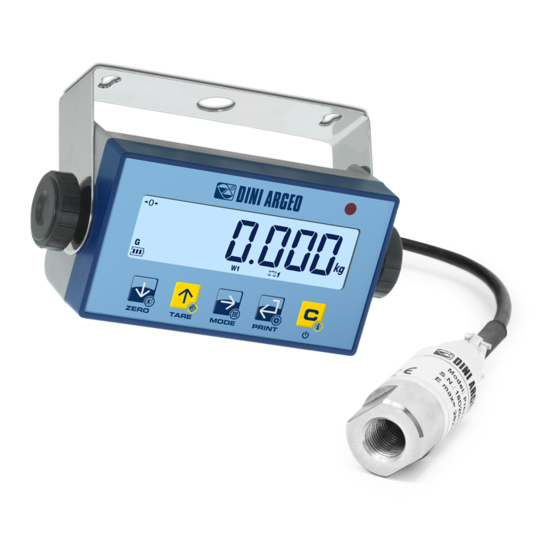

Dini Argeo LTP Operating Instructions Manual

Hydraulic weighing system for forklift truck
Hide thumbs Also See for LTP:
Table of Contents

Advertisement

Quick Links

Download this manual
LTP
Hydraulic weighing system for forklift truck
OPERATING INSTRUCTIONS
ENGLISH
www.diniargeo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dini Argeo LTP

Summary of Contents for Dini Argeo LTP

  • Page 1 Hydraulic weighing system for forklift truck OPERATING INSTRUCTIONS ENGLISH www.diniargeo.com...

  • Page 3: Table Of Contents

    Contents Introduction Warnings Display and keyboard Accuracy factors Weight reading Basic functions Ignition - On Switching off Zero Adjusting the display brightness Auto-weighted tare Tare cancellation Setting a known tare value (PT) Print Metric information Additional functions for models with numeric keypad Archive 30 tares Automatic tare cancellation Numeric IDs...

  • Page 4: Introduction

    • Please read this manual carefully before using the system. • Assistance must only be carried out by personnel authorized by Dini Argeo. • Dini Argeo is not responsible for any weighing errors resulting from improper use of the system. USER_MAN_ENG_LTP...

  • Page 5: Display And Keyboard

    Display and keyboard POS. ICON DESCRIPTION Indicates that the scale is unloaded (gross zero). Indicates that the weight is unstable. The net weight is displayed. note: there is a tare in memory. 4 / 5 The gross weight is displayed. Indicates the battery level: AND activates a locked tare.
  • Page 6 Button Description • Resets the weight value on the scale. • If pressed for a long time (2 sec), it allows you to set the brightness of the display. • Performs tare on the scale. • If pressed for a long time (2 sec) it allows you to insert a preset tare. •...

  • Page 7: Accuracy Factors

    (indicated by the stickers). The theoretical precision of the LTP system, correctly installed on suitable forklifts and used under optimal conditions, varies from 0.5% to 5% of the capacity (min. 20 kg).

  • Page 8: Weight Reading

    Weight reading Before turning on the indicator, make some lifting with empty forks (at least 5) to heat the oil temperature inside the hydraulic circuit. With the forks down (without touching the ground), turn on the weight indicator and wait for it to zero. During load acquisition the display shows: ---- At the end of the acquisition, the weight is shown.

  • Page 9: Switching Off

    Switching off Visualization Display: Visualization Display: -off- Press for 2 s Condition of the forklift truck: Condition of the forklift truck: Zero Visualization Display: Visualization Display: ZERO Condition of the forklift truck: Condition of the forklift truck: Adjusting the display brightness Visualization Display: Visualization Display: ZERO...

  • Page 10: Auto-Weighted Tare

    Auto-weighted tare ? kg ? kg Visualization Display: Visualization Display: TARE Condition of the forklift truck: Condition of the forklift truck: Visualization Display: Visualization Display: Condition of the forklift truck: Condition of the forklift truck: Tare cancellation Visualization Display: Visualization Display: TARE Condition of the forklift truck: Condition of the forklift truck:...

  • Page 11: Setting A Known Tare Value (Pt)

    Setting a known tare value (PT) 50 kg ? kg Visualization Display: Visualization Display: TARE 000050 Press for 2 s Condition of the forklift truck: Set the tare value: Increase/ decrease the value Visualization Display: Visualization Display: CONFIRM Condition of the forklift truck: Condition of the forklift truck: 200 kg 50 kg...

  • Page 12: Print

    Print Visualization Display: Visualization Display: PRINT print Condition of the forklift truck: Condition of the forklift truck: NUM. WEIGHED GROSS 15.000 kg TARA 3.000 kg 12.000 kg RECEIPT NO. 54321 15/11/2018 15:39:03 Metric information Visualization Display: Visualization Display: TARE INFo Press for 4 s Condition of the forklift truck:...

  • Page 13: Additional Functions For Models With Numeric Keypad

    Additional functions for models with numeric keypad Archive 30 tares Allows you to store the most used tares (up to 30), to simplify the activation through quick recall. Example 10 kg 20 kg 50 kg HOW TO STORE A TARE Visualization Display: Visualization Display: t.01...

  • Page 14: Automatic Tare Cancellation

    HOW TO RECALL A STORED TARE Visualization Display: Visualization Display: Visualization Display: Fun 1 t.01 Condition of the forklift truck: Select the memory: Increase / Decrease value Enter the value Visualization Display: PRINT Condition of the forklift truck: Automatic tare cancellation Visualization Display: Visualization Display: Visualization Display:...

  • Page 15: Numeric Ids

    Numeric IDs The instrument has 2 memories for the temporary recording of numerical codes that can be used to identify the product, the operator, the batch, etc.. These codes, if inserted, will be shown on the receipt at the time of printing. HOW TO INSERT THE ID Visualization Display: Visualization Display:...

  • Page 16: Date And Time

    HOW TO ACTIVATE THE AUTOMATIC DELETION OF THE ID Visualization Display: Visualization Display: Visualization Display: iidn Fun 4 Condition of the forklift truck: Select the memory: Enter the value Visualization Display: Visualization Display: iidn id1L Cancellation automatically deactivated. id1u Automatic deletion active: the entered ID will be deleted automatically once the forklift truck is unloaded.

  • Page 17: Printing (And Reprinting Of The Last Receipt)

    Printing (and reprinting of the last receipt) PRINT Visualization Display: Visualization Display: PRINT print Condition of the forklift truck: Condition of the forklift truck: NUM. WEIGHED GROSS 15.000 kg TARA 3.000 kg 12.000 kg RECEIPT NO. 54321 15/11/2018 15:39:03 REPRINTING THE LAST RECEIPT Visualization Display: PRINT print...

  • Page 18: Metric Information

    Metric information Press Visualization Display: Visualization Display: for 4s INFo Condition of the forklift truck: Condition of the forklift truck: Press for 2s 2000 USER_MAN_ENG_LTP...

  • Page 19: Advanced Scale Functions

    Advanced scale functions How to enter the functions menu Visualization Display: Visualization Display: MODE funCt Press for 5 s Condition of the forklift truck: The indicator has entered into the configuration menu: the currently active function will appear. Horizontal totalization total Sum of the weight of multiple objects to know the total weight...

  • Page 20: Horizontal Totalization

    Horizontal totalization HOW TO ADD UP THE WEIGHINGS Visualization Display: Visualization Display: PRINT Condition of the forklift truck: Condition of the forklift truck: NUM. WEIGHED 00000001 100 kg Visualization Display: Visualization Display: PRINT Condition of the forklift truck: Condition of the forklift truck: NUM.
  • Page 21 HOW TO MOMENTARILY READ THE TOTAL Visualization Display: MODE Number of weighings Total weight With the numeric keypad, the F + 7 key combination displays the current total without printing/resetting it. HOW TO END THE TOTALIZATION AND RESET THE TOTAL NUM.

  • Page 22: Exchange Between Net And Gross Weight

    Exchange between net and gross weight Visualization Display: Visualization Display: TARE Condition of the forklift truck: Condition of the forklift truck: Visualization Display: Visualization Display: Condition of the forklift truck: Condition of the forklift truck: Visualization Display: Visualization Display: MODE Condition of the forklift truck: Condition of the forklift truck: MODE...

  • Page 23: Unit Of Measure Conversion

    Unit of measure conversion HOW TO CONVERT THE UNIT OF MEASUREMENT TO POUNDS (STANDARD MODE) Visualization Display: Visualization Display: MODE 440.9 Condition of the forklift truck: Condition of the forklift truck: MODE By pressing at any time you can switch from weight in kg to weight in pounds. HOW TO CONVERT THE UNIT OF MEASURE WITH FREE CONVERSION FACTOR Visualization Display: Visualization Display:...
  • Page 24 Visualization Display: Visualization Display: MODE 101.2 Condition of the forklift truck: Condition of the forklift truck: MODE By pressing at any time, the unit of measurement can be converted with a free conversion factor. USER_MAN_ENG_LTP...

  • Page 25: Configuration Menu

    Configuration menu MENU CloCk - DATE AND TIME How to enter How to browse 5 Sec. month Clock month filter year div,zmk month year div,unf year hour tim,up hour tim,avG minute hour avG,dt Minute m.stab C.Corr Minute PreC. 10 sCreen tare filter - WEIGHING FILTERS autoff...
  • Page 26 MENU SENSOR adjustment How to enter How to browse Advanced configuration parameters. For manufacturer’s use only. 5 Sec. div.zmk div.unf Clock tim.up filter tim.avG div,zmk div,unf avG.dt tim,up tim,avG m.stab avG,dt C.Corr m.stab C.Corr Refer to the technical manual for more information. PreC.
  • Page 27 MENU SCreen - ADJUSTING THE DISPLAY How to enter How to browse Backlighting 5 Sec. bak.Lit Always on Clock On when weight is un- auto filter stable div,zmk briGht div,unf Brightness tim,up briGht tim,avG brGt 1 avG,dt m.stab C.Corr PreC. 10 brGt 5 sCreen bak.Lit...
  • Page 28 MENU TARE - TARE How to enter How to browse tare 5 Sec. loCk The tare is saved. Manual deletion. unloCk Tare automatically deleted when scale is unloaded. Clock Tare functions inhibited. filter div ,zmk auto Tare automatically carried out when weight is stable. div ,unf tim ,up autoff...
  • Page 29 MENU tik.res - TICKET NUMBER RESET How to enter How to browse sure? tik.res 5 Sec. reset Clock reset - FACTORY CONFIGURATION RESET filter sure? reset div,zmk diaG div,unf tim,up tim,avG avG,dt diaG - DIAGNOSTICS m.stab C.Corr diaG Reserved for technical staff. PreC.

  • Page 30: Maintenance

    Maintenance The results of the weighing system depend on the condition of the various parts of the lift truck. The weighing system does not require any special maintenance, but a poor condition of the various parts of the forklift truck can negatively affect the accuracy.
  • Page 32 Authorized service center stamp HEAD OFFICE Via Della Fisica, 20 41042 Spezzano di Fiorano, Modena - Italy Tel. +39 0536 843418 - Fax +39 0536 843521 SERVICE ASSISTANCE Via Dell’Elettronica, 15 41042 Spezzano di Fiorano, Modena - Italy Tel. +39 0536 921784 - Fax +39 0536 926654 www.diniargeo.com...
