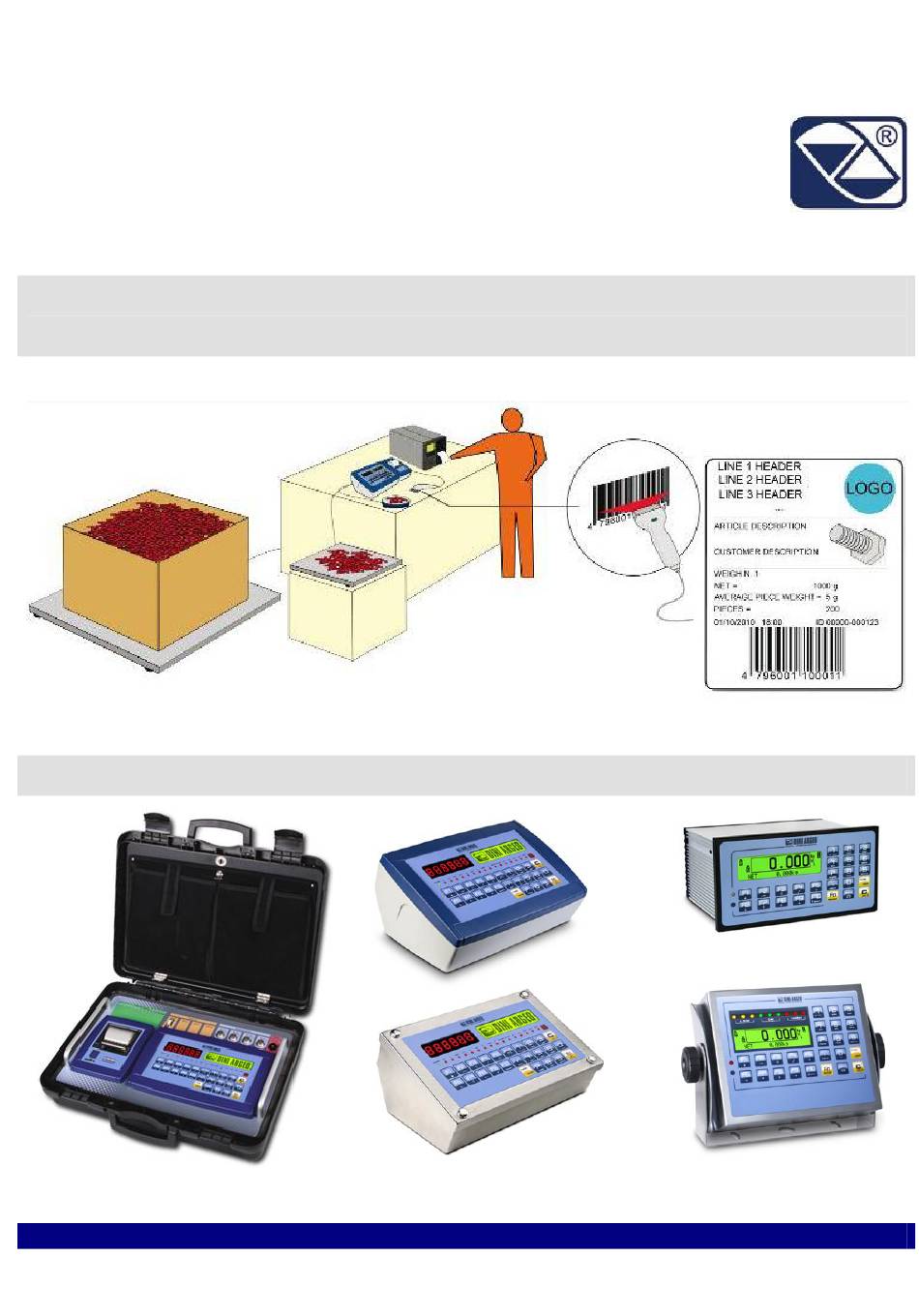

TECHNICAL MANUAL
WEIGHT INDICATOR
E-AF02: PROGRAM VERSION FOR QUANTITY (PIECES,
LITRES, ETC.) COUNTING SYSTEMS

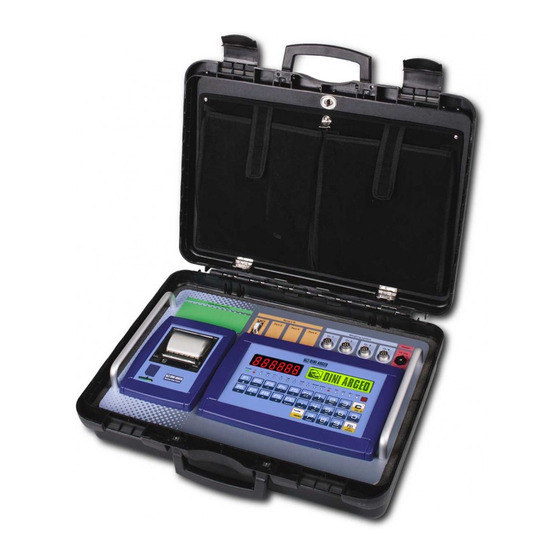

3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator
E-AF02_02.04_12.11_EN_T
