Onespace 50-2401ES Assembly Instructions Manual

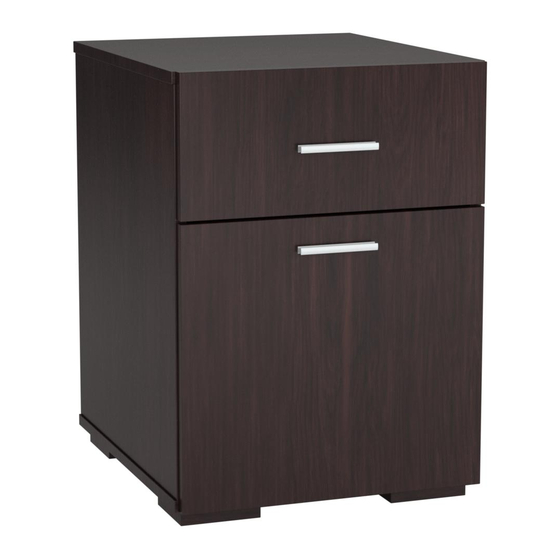

2 drawer cabinet, espresso
Hide thumbs Also See for 50-2401ES:

Advertisement

Quick Links

Download this manual
™
OneSpace is a Trademark of Comfort Products, Inc.
ASSEMBLY INSTRUCTIONS
MODEL # 50-2401ES
SUPPLIER CODE: PMEX
2 Drawer Cabinet, Espresso
CUSTOMER SERVICE
For fastest service on claims, requests for replacement parts, or
questions, please visit our website at
www.comfortproducts.net/support
e-mail: customerservice@comfortproducts.net
Keep your sales receipt as documentation of your ownership.
1 OF 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the 50-2401ES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onespace 50-2401ES

Summary of Contents for Onespace 50-2401ES

  • Page 1 ™ OneSpace is a Trademark of Comfort Products, Inc. ASSEMBLY INSTRUCTIONS MODEL # 50-2401ES SUPPLIER CODE: PMEX 2 Drawer Cabinet, Espresso CUSTOMER SERVICE For fastest service on claims, requests for replacement parts, or questions, please visit our website at www.comfortproducts.net/support e-mail: customerservice@comfortproducts.net...

  • Page 2: Cleaning And Care

    *Please look for part number on the side of the part. It either is stamped or has a labeled sticker. DESCRIPTION DESCRIPTION PART STOCK NO. QTY. PART STOCK NO. QTY. Left side SM left side 51-2401ESH 51-2401ESA panel panel SM right side 51-2401ESI panel Right side...
  • Page 4 STEP 1 Fix sixteen wooden dowels (1) to panels (A), (B), (H), (I), (K) & (L) using a rubber mallet. STEP 2...
  • Page 5 Step 3: Screw two drawer slides (3-CL) on to the left side panel (A) using four euro screws (4). Then Screw two drawer slides (3-CR) on to the right side panel (B) using four euro screws (4). (Make sure all rollers are towards the bottom of panels A and B.) DRAWER SLIDE - CL) DRAWER SLIDE - CR) Part # 3-CL (...
  • Page 6 Step 4: Screw bottom panel (D) to left side panel (A) & right side panel (B) with four Unitar screw (5) using predrilled holes. (Make sure the un shed side of panel D is faceing back). Part # 5 Step 5: Attach four bottom legs (E) to bottom panel (D) using eight CSK screws (6) in predrilled holes.
  • Page 7 Step 6: Attach desktop to cabinet by aligning the Mini x bolts (2) into predrilled holes. Then press four Cams (7) to the bottom of the holes and making sure the arrow on top of each Cam (7) is pointing up. Turn the Cam clockwise to lock the cam into the Mini x bolt (2). Part # 7 X 4pcs Caution:...
  • Page 8 Step 8: Small drawer assembly : Attach two SM side drawer panels (H and I) to SM drawer front (F) aligning Mini x bolts, then press Cams (7) to the bottom of the holes and making sure the arrow on top of each Cam (7) is pointing towards the Mini x bolt.
  • Page 9 Step 10: Attach Aluminum handle and two handle screws (9) to each drawer. Part # 9 X 4pcs Part # 9 X 2pcs 9 OF 12...
  • Page 10 Step 11: Attach two drawer slides (10-DR and 10-DL) to the bottom of each drawer using eight short screws (11) DRAWER SLIDE - DR) DRAWER SLIDE - DL) Part # 10-DR ( X 2pcs Part # 10-DL ( X 2pcs X 8pcs Part # 11 THIRD...
  • Page 12 United States. All warranties are limited to the original purchaser for normal use. The weight capacity is de ned as 100 pound s for the table and 20 pounds for the shelves. For claims or questions concerning this warranty, please visit: www.comfortproducts.net or e-mail us at: customerservice@comfortproducts.net MODEL: # 50-2401ES Comfort Products, Inc. P.O. Box 999 Memphis, TN 38101 www.comfortproducts.net...
