OneSpace is a Trademark of Comfort Products, Inc.
ASSEMBLY INSTRUCTIONS
MODEL 50-CS01
SUPPLIER CODE: HMOF

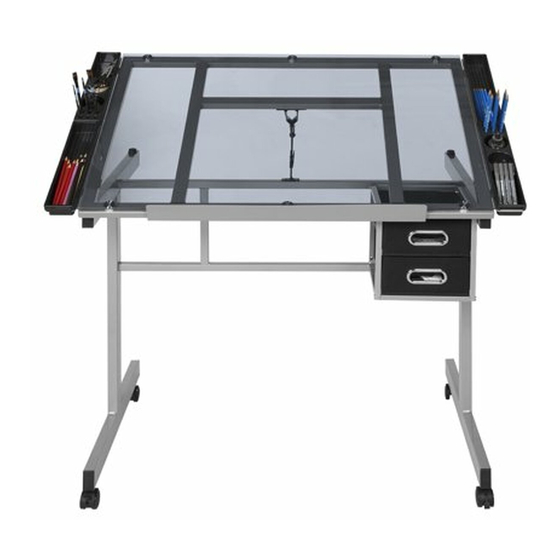

CRAFT STATION IN SILVER WITH BLUE GLASS
CUSTOMER SERVICE
For fastest service on claims, requests for replacement parts,
or questions, please visit our website at:
www.comfortproducts.net/support
e-mail: customerservice@comfortproducts.net
Keep your sales receipt as documentation of your ownership.
7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Onespace 50-CS01
Summary of Contents for Onespace 50-CS01
- Page 1 ™ OneSpace is a Trademark of Comfort Products, Inc. ASSEMBLY INSTRUCTIONS MODEL 50-CS01 SUPPLIER CODE: HMOF CRAFT STATION IN SILVER WITH BLUE GLASS CUSTOMER SERVICE For fastest service on claims, requests for replacement parts, or questions, please visit our website at: www.comfortproducts.net/support...
- Page 2 ASSEMBLY OVERVIEW (50-CS01) THE DRAWING BELOW SHOWS THE BACK OF THE DESK. Desktop maximum weight capacity = 130 lbs r maximum weight capacity s b l 2 of 10...
- Page 3 PARTS LIST 1 OF 2 (50-CS01) # DESCRIPTION SIDE 1 SIDE 2 STOCK # QTY. THE PART NUMBER CAN BE FOUND ON THE SIDE OF THE PART, EITHER STAMPED OR ON A STICKER. ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTION STOCK # QTY.
- Page 4 PARTS LIST 2 OF 2 (50-CS01) # DESCRIPTION SIDE 1 SIDE 2 STOCK # QTY. ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTION STOCK # QTY. Right Drawer 51-CS01DFR Frame Left Drawer 51-CS01DFL Frame Crossbar 51-CS01CR Drawer with 51-CS01DWR Bottom Piece...
- Page 5 HARDWARE LIST (50-CS01) EXTRA HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. HARDWARE KIT STOCK # 51-CS01HA PART DESCRIPTION QTY. - READ THE INSTRUCTION MANUAL BEFORE ASSEMBLING. - REMOVE ALL PIECES BEFORE BEGINNING INSTALLATION. M6 x 45MM - OPEN THE HARDWARE AS NEEDED .
- Page 6 ASSEMBLY INSTRUCTIONS (50-CS01) NOTE: THE DRAWINGS BELOW SHOW THE BACK OF THE DESK. STEP 1 2 (Left) Screw in the two Non-locking Casters (4) at the back of the Right (1) and Left (2) Legs and screw in the Locking Casters (5) at the front of the Legs. You may alternately screw in the four Glides (6) in place of the Casters.
- Page 7 ASSEMBLY INSTRUCTIONS (50-CS01) STEP 3 Attach the Desktop Frame (8) to the Legs using two Screws (D). Attach the Lift (7) to the Desktop Frame using two Screws (C). D x 2 C x 2 STEP 4 Use six Screws (E) to attach the Right Drawer Frame (9) and the Left Drawer Frame (10) to the four Crossbars (11). The top holes of the Right Drawer Frame will be used later to attach the entire frame to the desk.
- Page 8 ASSEMBLY INSTRUCTIONS (50-CS01) NOTE: THE DRAWINGS BELOW NOW SHOW THE FRONT OF THE DESK. STEP 5 Attach the Tray Frames (13) to the Desktop Frame (8) using four Screws (C). Attach the Right Drawer Frame (9) and the two top Crossbars (11) to the Right Leg (1) using two Screws (A).
- Page 9 ASSEMBLY INSTRUCTIONS (50-CS01) STEP 7 Attach the Glass Desktop (16) to the Desktop Frame (8) using six Screws (E). Attach the Lip (17) to the Desktop Frame (8) using two Screws (C). E x 6 C x 2 9 of 10...
- Page 10 130 pounds and the weight capacity of the drawers is 10 pounds. For claims or questions concerning this warranty, please visit: www.comfortproducts.net or email us at: customerservice@comfortproducts.net MODEL: 50-CS01 Comfort Products, Inc. P.O. Box 999 Memphis, TN 38101 www.comfortproducts.net customerservice@comfortproducts.net ™ OneSpace is a Trademark of Comfort Products, Inc. 10 OF 10...
