Download
Share
Print this page
Onespace 50-612ES Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Onespace Manuals
  4. Indoor Furnishing
  5. 50-612ES
  6. Assembly instructions manual

Onespace 50-612ES Assembly Instructions Manual

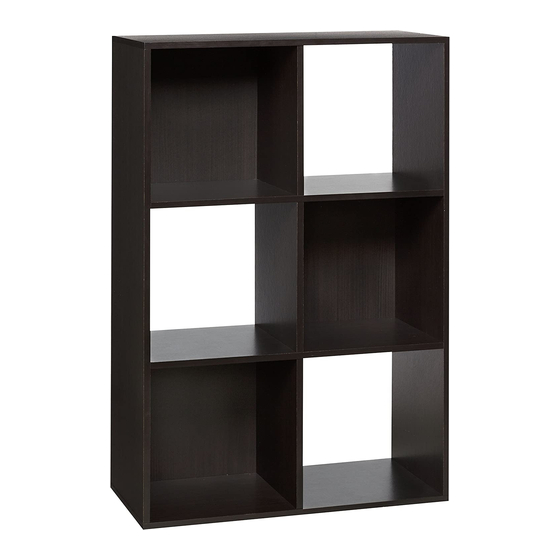

6 cube organizer, espresso
Hide thumbs Also See for 50-612ES:

Advertisement

Quick Links

Download this manual
™
OneSpace is a Trademark of Comfort Products, Inc.
ASSEMBLY INSTRUCTIONS
MODEL # 50-612ES
SUPPLIER CODE: PMEX
6 Cube Organizer, Espresso
CUSTOMER SERVICE
For fastest service on claims, requests for replacement parts, or
questions, please visit our website at
www.comfortproducts.net/support
e-mail: customerservice@comfortproducts.net
Keep your sales receipt as documentation of your ownership.
1 OF 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the 50-612ES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onespace 50-612ES

Summary of Contents for Onespace 50-612ES

  • Page 1 ™ OneSpace is a Trademark of Comfort Products, Inc. ASSEMBLY INSTRUCTIONS MODEL # 50-612ES SUPPLIER CODE: PMEX 6 Cube Organizer, Espresso CUSTOMER SERVICE For fastest service on claims, requests for replacement parts, or questions, please visit our website at www.comfortproducts.net/support e-mail: customerservice@comfortproducts.net...
  • Page 2 Top maximum weight capacity =40lbs Shelf maximum weight capacity =10lbs 2 OF 11...

  • Page 3: Cleaning And Care

    PART DESCRIPTION PART DESCRIPTION STOCK NO STOCK NO Side Panel Left 51-612ESA Lower Shelf Panel 51-612ESF Center Panel Top Side Panel Right 51-612ESB 51-612ESG and Bottom Top Panel 51-612ESH 51-612ESC Center Panel Middle Back Panel Bottom Panel 51-612ESJ 51-612ESD Upper Shelf 51-612ESE Panel HARDWARE KIT...
  • Page 4 Start assembling by xing the Dowels (C) to Side Panel Left (1), Side Panel Right (2), Upper Shelf Panel (5) & Lower Shelf Panel (6), Center Panel Top and Bottom (7) and Center Panel Middle (8). Part # C x 14 Using a phillips head screwdriver x the Mini x Bolts (A) to Side Panel Left (1), Side Panel Right (2), Top Panel (3), Upper Shelf Panel (5) and Lower Shelf Panel (6).
  • Page 5 Use two CSK Screws (D) to attach the Upper Shelf Panel (5) and Center Panel Top (7). Make sure that the grooves for the Back Panel are aligned. Part # D x 2pcs Insert the Mini x Cams (B) into the Center Panel Middle (8). Attach the Center Panel Middle (8) to the Upper Shelf Panel (5).
  • Page 6 Use two CSK Screws (D) to attach the Lower Shelf Panel (6) to Center Panel Middle (8). Make sure that the grooves for the Back Panel are aligned. Part # D x 2pcs Insert the Mini x Cams (B) into the Center Panel Bottom (7). Attach the Center Panel Bottom (7) to Lower Shelf Panel (6).
  • Page 7 Step 7: Slide in one Back Panel (9) with the nished side facing inside the cube. Step 8: Insert the Mini x Cams (B) into the Upper Shelf Panel (5) and Lower Shelf Panel (6). Attach the Side Panel Right (2) to the Upper Shelf Panel (5) and Lower Shelf Panel (6). While doing this make sure that the groove in the Side Panel Right (2) is aligned with the panel which you have inserted.
  • Page 8 Step 9: Insert the Mini x Cams (B) into the Upper Shelf Panel (5) and Lower Shelf Panel (6). Attach the Side Panel Left (1) to the Upper Shelf Panel (5) and Lower Shelf Panel (6). Tighten the four Mini x Cams (B) clockwise and then cover them with Cam Caps (E).
  • Page 9 Step 11: Use six CSK Screws (D) to attach the Bottom Panel (4) to Side panel Left (1), Side panel Right (2) and Center Panel Bottom (7). Make sure that the groove in the Bottom Panel (4) is aligned with the panel which you have just inserted.
  • Page 10 Step 13: Insert six Mini x Cams (B) into the Side Panel Left (1), Side Panel Right (2) and Center Panel Top (7). Attach the Top Panel (3) to the Side Panel Left (1), Side Panel Right (2) and Center Panel Top (7). While doing this make sure that the groove is aligned with the Back Panel.
  • Page 11 10 pounds for the shelves and 40 pounds for the top panel. For claims or questions concerning this warranty, please visit: www.comfortproducts.net or email us at: customerservice@comfortproducts.net MODEL: # 51-612ES Comfort Products, Inc. P.O. Box 999 Memphis, TN 38101 www.comfortproducts.net customerservice@comfortproducts.net ™ OneSpace is a Trademark of Comfort Products, Inc. 11 OF 11...
