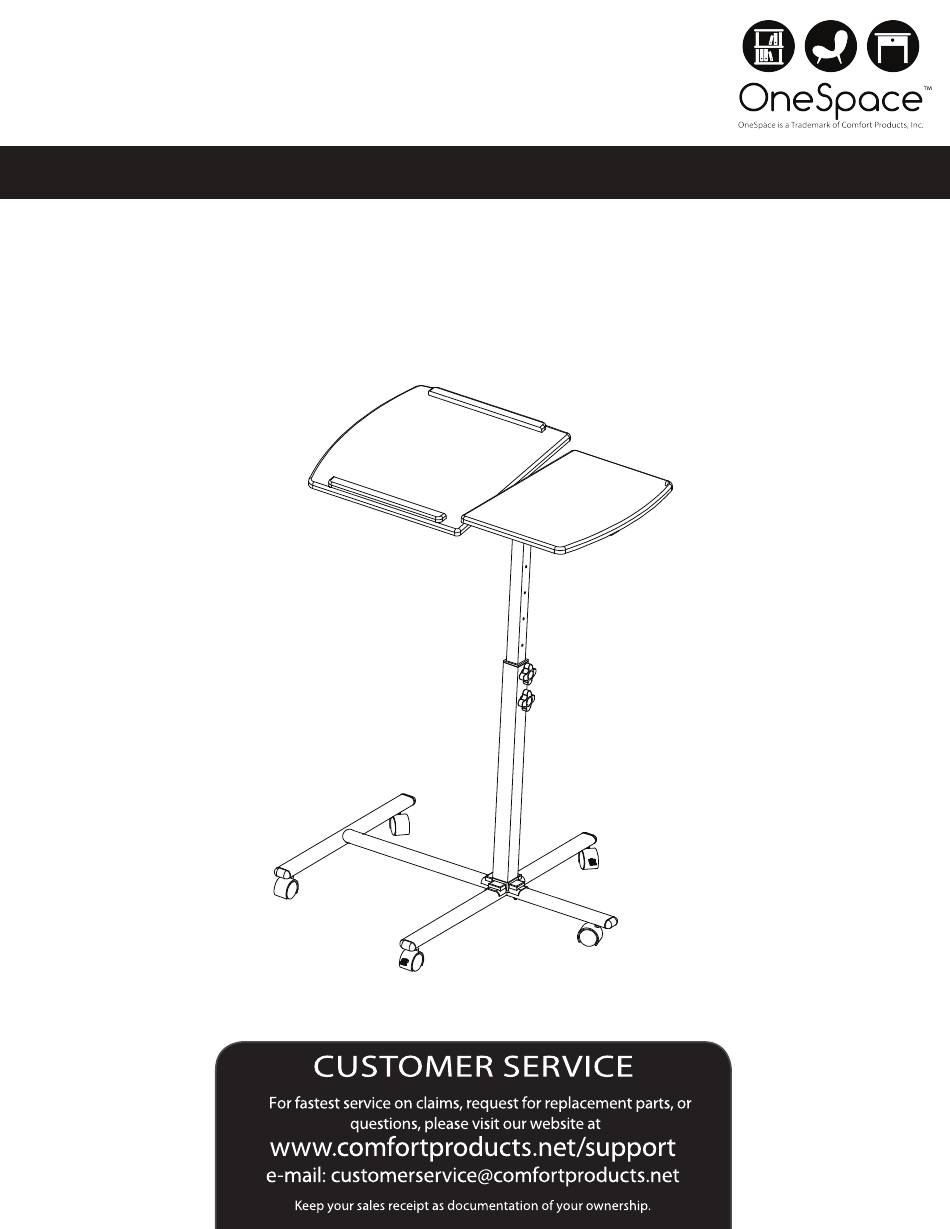

- Page 1 ASSEMBLY INSTRUCTIONS MODEL # 50-JN01ES SUPPLIER CODE: JNFF MOBILE LAPTOP COMPUTER DESK, DUAL SURFACE, ESPRESSO...
- Page 2 weight capacity = 10lbs weight capacity = 15lbs 2 OF 7...
-
Page 3: Cleaning And Care
PARTS AND HARDWARE LIST EXTRA HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTION DESCRIPTION PART STOCK NO PART STOCK NO 51-JN01CV Base Cover 51-JN01ESLB Laptop Board 51-JN01PA Pivot Anchor 51-JN01ESMB Mouse Pad Board U Bracket 51-JN01UB Base 51-JN01BS 51-JN01TK... -
Page 4: Assembly Instruction
ASSEMBLY INSTRUCTION DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 1 Screw the Locking Casters (H) into the middle legs of the Base (C). Screw the Non-locking Casters (G) into the outer legs of the Base. Attach the Center Bar (D) to the Base using four Screws (1). NOTE: The holes at the top of the Center Bar should be facing the shorter end of the Base. - Page 5 ASSEMBLY INSTRUCTION DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 3 Attach the Pivot Anchor (J) to the Laptop Board (A) using two Screws (3). Attach the Top Support (E) to the Laptop Board (A) using the U Bracket (K) and two Screws (3). 4 pcs STEP 4 Attach the Support Bars (F) to the Mouse Pad Board (B) using four Screws (2).
- Page 6 ASSEMBLY INSTRUCTION DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 5 Insert the Top Support (E) into the Center Bar (D). Secure it at the desired height using the Support Knobs (N) . 6 OF 7...
- Page 7 The weight capacity of the laptop table is 15 pounds and the capacity of the mousepad table is 10 pounds. For claims or questions concerning this warranty, please visit www. comfortproducts.net /support or e-mail us at customerservice@comfortproducts.net MODEL : # 50-JN01ES Comfort Products, Inc. 122 Gayoso Avenue, Suite 101 Memphis, TN 38103 www.comfortproducts.net...
