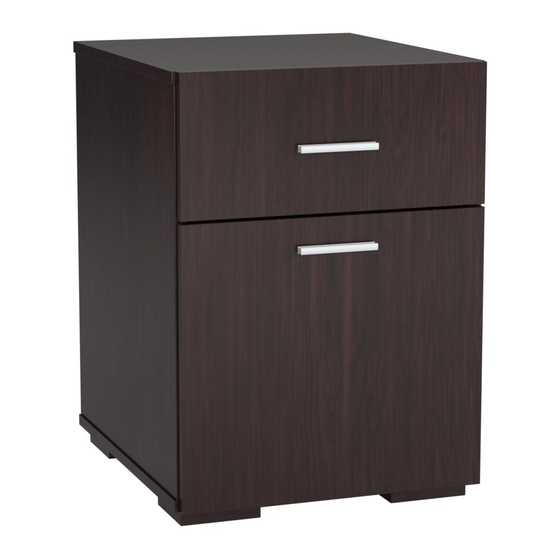

2 drawer cabinet
Hide thumbs Also See for 50-2401ES:

Advertisement

Quick Links

OneSpace is a Trademark of Comfort Products, Inc.

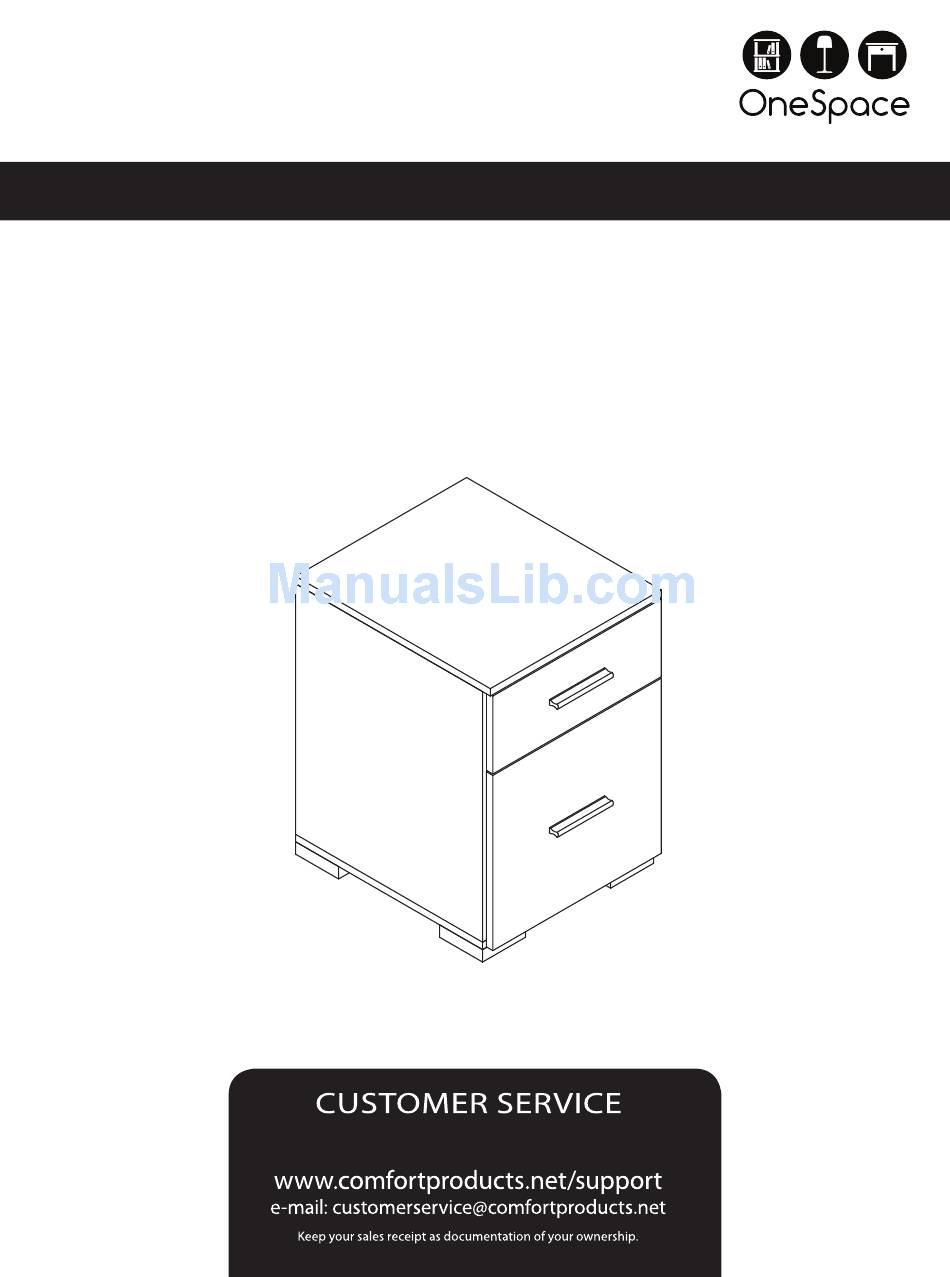

ASSEMBLY INSTRUCTIONS
MODEL 50-2401ES
SUPPLIER CODE: PMEX
2 Drawer Cabinet
For fastest service on claims, requests for replacement parts, or
questions, please visit our website at

Advertisement

loading
Need help?

Need help?

Do you have a question about the 50-2401ES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Onespace 50-2401ES

  • Page 1 ™ OneSpace is a Trademark of Comfort Products, Inc. ASSEMBLY INSTRUCTIONS MODEL 50-2401ES SUPPLIER CODE: PMEX 2 Drawer Cabinet For fastest service on claims, requests for replacement parts, or questions, please visit our website at...
  • Page 2 Cabinet top maximum weight capacity =40lbs Drawer maximum weight capacity =20lbs 2 OF 12...
  • Page 3: Cleaning And Care

    - READ THE INSTRUCTION MANUAL BEFORE ASSEMBLING. - REMOVE ALL PIECES BEFORE BEGINNING INSTALLATION. - OPEN THE HARDWARE AS NEEDED. - ASSEMBLE IN AN AREA WITH PLENTY OF SPACE. - READ EACH STEP BEFORE BEGINNING CONSTRUCTION. - HAVE THE TOOLS BELOW BEFORE YOU BEGIN ASSEMBLING. - NEVER FORCE THE SCREWS OR FITTINGS.
  • Page 4 Fix sixteen Wood Dowels (1) to Panel (A), Panel (B), Panel (H), Panel (I), Panel (K) & Panel (L) using rubber hammer. into predrilled holes . 4 OF 12...
  • Page 5 Screw two Drawer Slides (3-CL) to the Left Side Panel (A) using four Euro Screws (4). Then screw two Drawer Slides (3-CR) on to the Right Side Panel (B) using four Euro Screws (4).
  • Page 6 Screw bottom Panel (D) to Left Side Panel (A) & Right Side Panel ( B) with four Unitar Screws (5) using predrilled holes. Attach four Bottom Legs (E) to Bottom Panel (D) with eight CSK Screws (6) using predrilled holes.
  • Page 7 Press four Cams (7) into the holes as shown, making sure the arrows are pointing up. Attach Desktop (C) to cabinet by aligning the Mini x Bolts (2) into predrilled holes. Turn the cams clockwise half a turn to lock into place. Attach the Back Panel (N) to the cabinet by aligning Back Panel with edges of the top and Panel (N) to the cabinet.
  • Page 8 Small drawer assembly : then press Cams (7) to the bottom of the holes and making sure the arrow on the top each Large drawer assembly : Next attch two LG side Drawer Panel (K) and Panel (I) to LG Drawer Front (G) aligning Slide drawer Bottom Panel (Z) into both big and small drawers using the grooves Small drawer assembly : Attach SM back Panel (J) to SM side drawer Panels (H) and Panel (I) by aligning grooves...
  • Page 9 Attach aluminium handle and two Handle Screw (10) to each drawer.
  • Page 10 Attach two Drawer Slide (11-DR) and Drawer Slide (11-DL) to the bottom of each drawer using eight Short Screws (12).
  • Page 11 Aligning the sliders, insert the large drawer into the bottom slot of the cabinet and the small drawer into the upper slot.
  • Page 12 20 pounds. For claims or questions concerning this warranty, please visit www.comfortproducts.net or email us at customerservice@comfortproducts.net MODEL: 50-2401ES Comfort Products, Inc. P.O. Box 999 Memphis, TN 38101 www.comfortproducts.net customerservice@comfortproducts.net ™ OneSpace is a Trademark of Comfort Products, Inc. 12 OF 12...
