Onespace Eleanor 50-161705 Assembly Instructions Manual

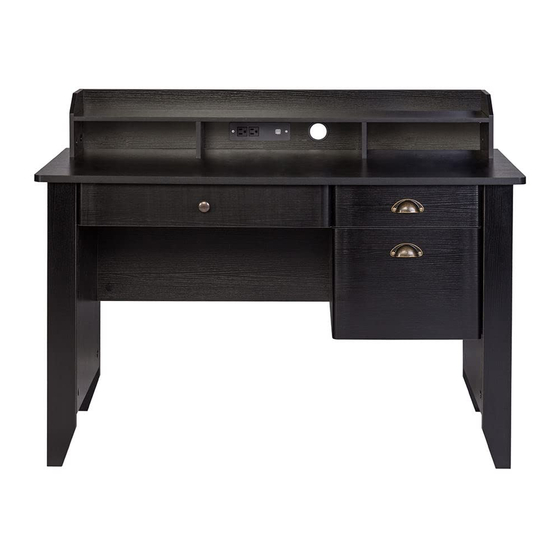

Executive desk with hutch, usb and charger hub, sleek black
Hide thumbs

Advertisement

Quick Links

Download this manual
™
OneSpace is a Trademark of Comfort Products, Inc.
ASSEMBLY INSTRUCTIONS
MODEL 50-161705
SUPPLIER CODE: SPRG
Eleanor Executive Desk with Hutch, USB and Charger Hub, Sleek Black
CUSTOMER SERVICE
For fastest service on claims, requests for replacment parts,
or questions, please visit our website at:
www.comfortproducts.net/support
e-mail: customerservice@comfortproducts.net
Keep your sales receipt as documentation of your ownership.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Eleanor 50-161705 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onespace Eleanor 50-161705

Summary of Contents for Onespace Eleanor 50-161705

  • Page 1 ™ OneSpace is a Trademark of Comfort Products, Inc. ASSEMBLY INSTRUCTIONS MODEL 50-161705 SUPPLIER CODE: SPRG Eleanor Executive Desk with Hutch, USB and Charger Hub, Sleek Black CUSTOMER SERVICE For fastest service on claims, requests for replacment parts, or questions, please visit our website at: www.comfortproducts.net/support...

  • Page 2: Assembly Overview

    ASSEMBLY OVERVIEW Hutch maximum weight capacity = 22 lbs Desktop maximum weight capacity = 132 lbs Drawers maximum weight capacity = 20 lbs 2 of 16...
  • Page 3 PARTS LIST 1 OF 3 (50-161705) THE PART NUMBER CAN BE FOUND ON THE SIDE OF THE PART, EITHER STAMPED OR ON A STICKER. ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTION STOCK # QTY. Left Corner 51-161705A Board, Front 51-161705B Left Board Left Corner 51-161705C...
  • Page 4 PARTS LIST 2 OF 3 (50-161705) THE PART NUMBER CAN BE FOUND ON THE SIDE OF THE PART, EITHER STAMPED OR ON A STICKER. ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTION STOCK # QTY. Desktop 51-161705DT 51-161705J Hutch Back Hutch Shelf 51-161705K Hutch Left 51-161705L...
  • Page 5 PARTS LIST 3 OF 3 (50-161705) THE PART NUMBER CAN BE FOUND ON THE SIDE OF THE PART, EITHER STAMPED OR ON A STICKER. ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTION STOCK # QTY. Drawer Bottom A 51-161705S 51-161705T Small Drawer, Front Board �...

  • Page 6: Hardware List

    HARDWARE LIST (50-161705) EXTRA HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. HARDWARE KIT STOCK # 51-161705HA PART DESCRIPTION QT Y. - READ THE INSTRUCTION MANUAL BEFORE ASSEMBLING. Bolt - REMOVE ALL PIECES BEFORE BEGINNING INSTALLATION. - OPEN THE HARDWARE AS NEEDED . - ASSEMBLE IN AN AREA WITH PLENTY OF SPACE.
  • Page 7 (50-161705) Insert twenty Dowels (C) into the boards shown below. Refer to the drawings for which holes in the rollers to use. DX12 7 of 16...
  • Page 8 ASSEMBLY INSTRUCTIONS (50-161705) STEP 3 Fix eighteen Bolts (A) to the Boards shown below. A x 18 30 Right 30 Left STEP 4 Insert twelve Large Cams (B1) into the Left (2) and Right (6) Boards. Make sure the arrows are pointing toward the holes where the bolts go in.
  • Page 9 ASSEMBLY INSTRUCTIONS (50-161705) Fix two Bolts (A) to the Back Board (8). Insert two Large Cams (B1) into the...
  • Page 10 ASSEMBLY INSTRUCTIONS (50-161705) Fix ten Bolts (A) to the underside of the Desktop (11). shown. Align the Bolts in the Desktop (11) with the holes and the Dowels in the lower part of the desk. Lower the Desktop making sure all Bolts and...
  • Page 11 ASSEMBLY INSTRUCTIONS (50-161705) STEP 9 Fix one Bolt (A) to the center of the Hutch Back (12). Insert the Grommet (J) into the round hole. Insert the USB, Charger Hub (29) into the opening and fasten it with two Screws (D). D x 2 A x 1 STEP 10...
  • Page 12 ASSEMBLY INSTRUCTIONS (50-161705) Fix eight Bolts (A) to the Hutch Right (15) and Left (14) Boards. Insert eight Small Cams (B2) into the Hutch Back (12) and...
  • Page 13 ASSEMBLY INSTRUCTIONS (50-161705) STEP 13 Fix two Bolts (A) to the Medium Drawer Front (17), four Bolts to the Large Drawer Front (25), and two Bolts to the Small Drawer Front (22). A x 8 STEP 14 Insert one Small Cam (B2) into the Slide Drawer Bottom A (21) into Attach the Small Handle (H) to the Drawer Right Board (19) and one into...
  • Page 14 ASSEMBLY INSTRUCTIONS (50-161705) STEP 15 Insert one Small Cam (B2) into the Slide Drawer Bottom B (24) into the Attach a Large Handle (I) to the Drawer Right Board (19) and one grooves. Align the groove in the Drawer Front (22) using two into the Drawer Left Board (18).
  • Page 15 ASSEMBLY INSTRUCTIONS (50-161705) Flip over the assembled drawer and attach a...
  • Page 16 132 pounds, the weight capacity of the drawers is 20 pounds, and the weight capacity of the hutch is 22 pounds. For claims or questions concerning this warranty, please visit: www.comfortproducts.net or email us at: customerservice@comfortproducts.net MODEL: 50-161705 Comfort Products, Inc. 122 Gayoso Avenue, Suite 101 Memphis, TN 38103 www.comfortproducts.net email: customerservice@comfortproducts.net ™ OneSpace is a Trademark of Comfort Products, Inc. 16 OF 16...
