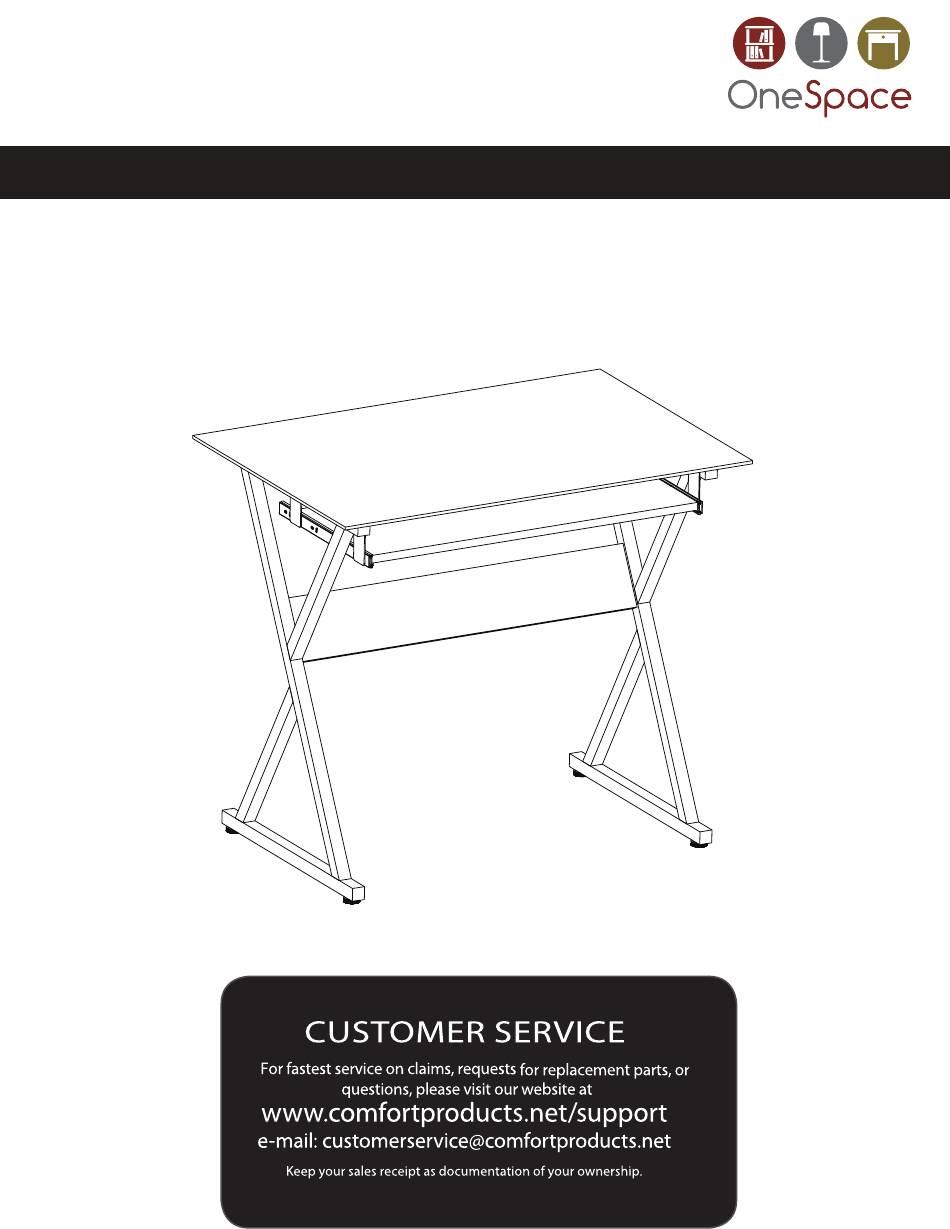

- Page 1 ™ OneSpace is a Trademark of Comfort Products, Inc. ASSEMBLY INSTRUCTIONS MODEL # 50-JN1205 SUPPLIER CODE: JNFF ULTRAMODERN GLASS COMPUTER DESK...
- Page 2 weight capacity = 8 8 lbs weight capacity = 33lbs 2 OF 7...
-
Page 3: Cleaning And Care
PARTS AND HARDWARE LIST (50-JN1205) EXTRA HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. PART DESCRIPTION STOCK NO Hardware Kit STOCK#50-JN1205HA PART DESCRIPTION QTY. 51-JN1205DT Desktop M6X30MM M5.5X55MM Keyboard Tray M6X12MM 51-JN1205KT M4X14MM M4X6MM Back Board 51-JN1205BB... -
Page 4: Assembly Instruction
ASSEMBLY INSTRUCTION (50-JN1205) DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 1 Attach Steel Plates (H) to Tray Slide (F) using four screws (5) and four nuts (6). 4Pcs Here the back of the slide is shown. In each slide, place screws in the holes indicated above. - Page 5 ASSEMBLY INSTRUCTION (50-JN1205) DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 3 Attach back board (C) to left stand (D) and right stand (E) using four screws (2). 4Pcs STEP 4 Attach the keyboard shelf (B) to drawer slide (F) using four screws (4).
- Page 6 ASSEMBLY INSTRUCTION (50-JN1205) DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 5 Attach Desktop (A) to Left Stand (D) and Right Stand (E) using four screws (1). 4Pcs 6 OF 7...
- Page 7 The weight capacity of the tabletop is 88 pounds and the weight capacity of the keyboard tray is 33 pounds. For claims or questions concerning this warranty, please visit www.comfortproducts.net or email us at customerservice@comfortproducts.net MODEL#: 50-JN1205 Comfort Products, Inc. P.O. Box 999 Memphis, TN 38101 www.comfortproducts.net customerservice@comfortproducts.net ™ OneSpace is a Trademark of Comfort Products, Inc. 7 OF 7...
