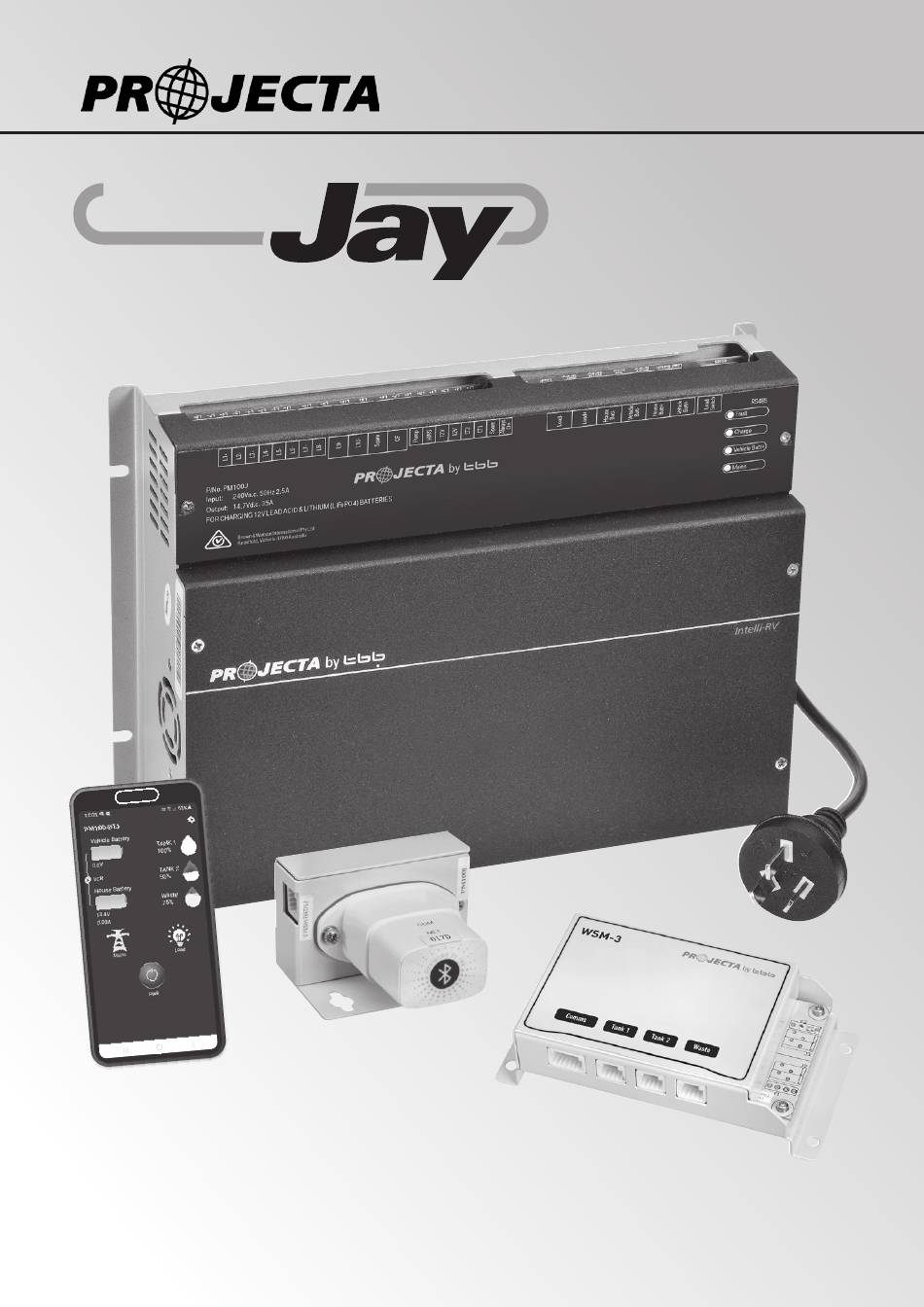

- Page 1 INTELLI 12V POWER MANAGEMENT SYSTEM PM100J Transformer Unit PMBTJ-02 Bluetooth Node Phone App WSM-3 Water Sensor Module P/No. PM100-BTJ Need technical help? Contact Projecta on 1800 294 294...
- Page 2 IMPORTANT SAFETY INFORMATION Please read this manual thoroughly before use and store in a safe place for future reference. WARNINGS • Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charging • Before charging, read the instructions • For indoor use. Do not expose to rain batteries only (of the size &...
-
Page 3: Table Of Contents
CONTENTS 1. SYSTEM INTRODUCTION PM100-BTJ 1.1 Features 1.2 Battery charger of house battery 1.3 Battery low voltage protection 1.4 Voltage charging relay (VCR) 1.5 Specification 2. STRUCTURE . OPERATION 3.1 Configuration 3.2 Wiring 3.3 LED diagnostic codes 3.4 Connecting to a Smart Device (Bluetooth) 3.5 Using the PM100-BTJ Remote App 4. -
Page 4: System Introduction Pm100-Btj
1. System Introduction PM100-BTJ PM100-BTJ is designed for use in caravans or motor homes. The PM100-BTJ is designed for an easy installation and a user-friendly interface without the need for a highly tailored cable harness. 1.1 Features • Smart battery charger 12V 30A –... -
Page 5: Battery Charger Of House Battery
1.2 Battery Charger of House Battery The charger automatically starts when the power is connected, either from AC mains or generator. With multiple charging stages (soft start, bulk, absorption, float, recycle), PM100J transformer is designed to fully charge the battery quickly when connected to AC power. To guarantee the optimal charging for batteries of different states, the transformer features a Microprocessor-controlled charging algorithm. -
Page 6: Specification
1.5 Specification MODEL PM100J ELECTRICAL SPECIFICATIONS Nominal input voltage (V) 240±10%VAC 50/60Hz Mains Power factor 0.95 Input current at full load 2.5A Vehicle battery 12VDC Vehicle battery voltage range 12.8-16VDC Battery House battery 12VDC House battery voltage range 10.5-16VDC Relay specification 12Vdc 60A Continuous, Peak current 100A, 30min Connect voltage 13.4V (Lead Acid) / 13.7V (Lithium) -
Page 7: Structure
2. Structure 38.5 4-Ø5 196.9 PM100J Transformer Unit Ø5 79.5 PMBTJ-02 Bluetooth Node 133.4 13.3 43.2 WSM-3 Water Sensor Module 161.3 151.6 43.2 4-Ø6... -
Page 8: Operation
3. Operation 3.1 Configuration SIDE PANEL 3 4 5 6 7 8 9 11121314 LABEL DEFINITION DESCRIPTION Power AC cable Kettle /computer/IEC type plug RS485 Communication Connect to PMBTJ-02 Load Switch Low power consumption Connect external switch Vehicle Bat+ Connect to vehicle battery+ Vehicle battery terminal Vehicle Bat- Connect to vehicle battery-... -
Page 9: Led Diagnostic Codes
3.3 LED Diagnostic Codes Illuminating Flash COLOUR STATUS DESCRIPTION AC input ok Mains Green AC disconnected VCR connected Slow flashing (flash once every The voltage of vehicle battery is normal but the second) house battery is charged by the AC Vehicle Battery Green Quick flashing (flash twice every... -
Page 10: Connecting To A Smart Device (Bluetooth)
3.4 Connecting to a Smart Device (Bluetooth) 1. Go to your smart device’s App Store (iPhone/iPad) or Play Store (Android) and search for the Jayco “IntelliJay PM100-BTJ” app. Download this app to your smart device. 2. Ensure Bluetooth is enabled on your smart device and that permission is granted for the app to use Bluetooth and discover new connections. -
Page 11: Using The Pm100-Btj Remote App
3.5 Using the PM100-BTJ Remote App 1. Once you have established a paired connection with your smart device, the app will take you to its home screen where you may see a variety of system parameters. 2. It is now important to select your battery type, to ensure ideal charging and system operation. To do this, tap the white settings cog/gear in the top right corner of the screen, then tap the down arrow under “Battery Type”. -
Page 12: Display Explanation And Troubleshooting
4 Display Explanation and Troubleshooting 4.1 Display Explanation * When the PM100J detects the voltage of the vehicle battery is below 2V, it assumes that the vehicle battery is not connected to our system. MAINS. VEHICLE CHARGE FAULT DESCRIPTION BATTERY POWER SUPPLY MODE (PS MODE) AC grid is working as the source of power supply. -
Page 13: Troubleshooting
If the fault still exists, please contact the PM100J unit over temp alarm. distributor, installer or PROJECTA PM100J is working under CHG mode. “FAULT” flashes 4 times every cycle. 1. Check the setting of the battery “Charge”flashes as 1 sec on then 2... - Page 14 Notes...
- Page 15 Notes...
- Page 16 WARRANTY STATEMENT Applicable only to product sold in Australia Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic.,telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of three (3) years (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked on the invoice.
