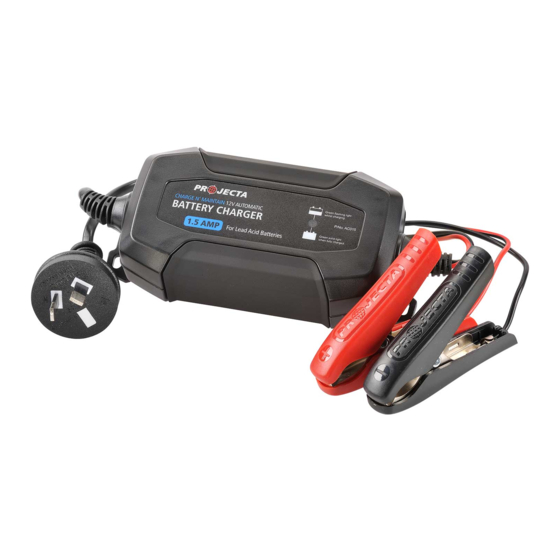

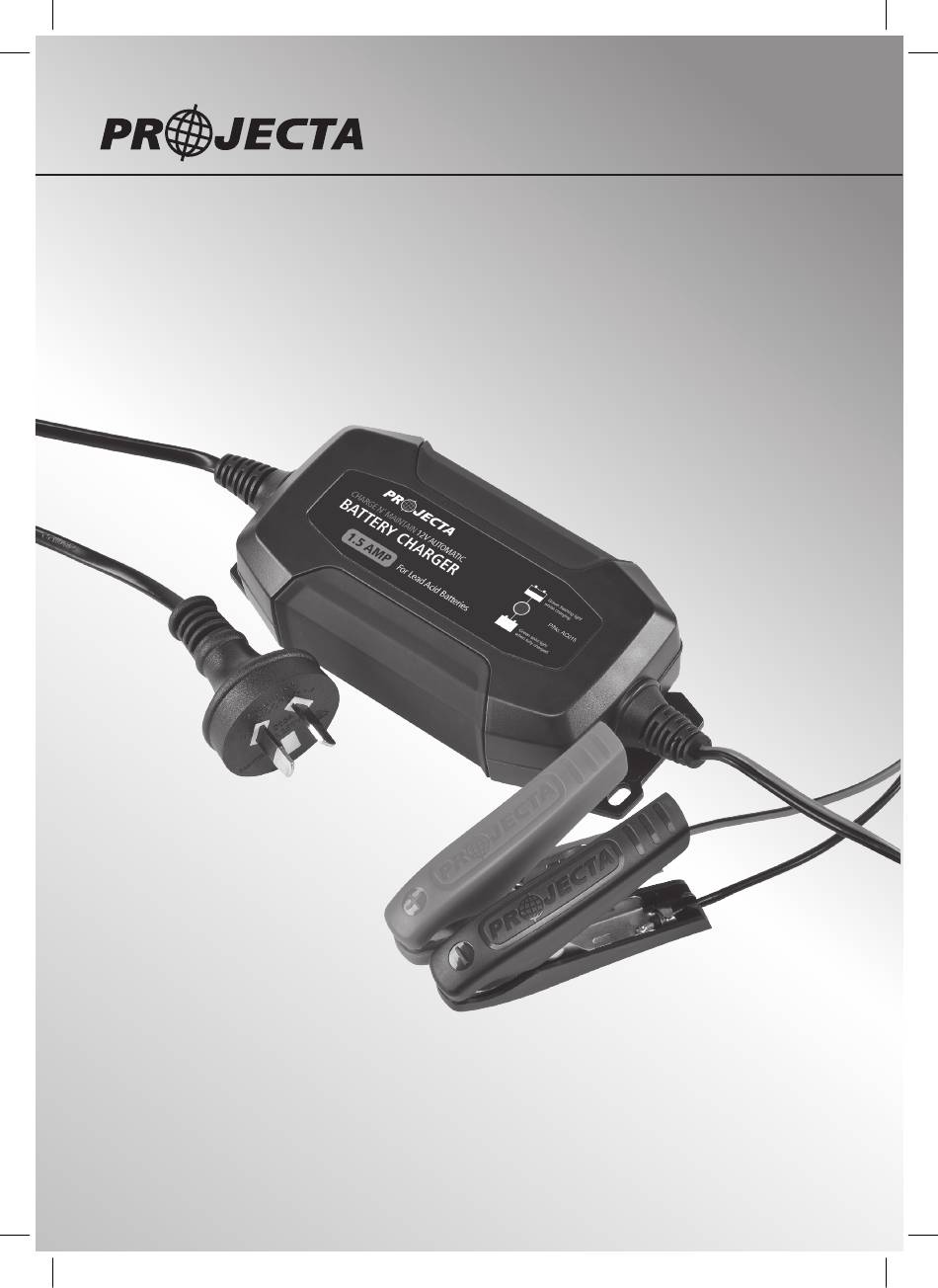

- Page 1 CHARGE N’ MAINTAIN BATTERY CHARGER 4 STAGE SWITCHMODE P/No’s. AC008, AC015...
- Page 2 IMPORTANT SAFETY INFORMATION Please read this manual thoroughly before use and store in a safe place for future reference. WARNINGS • Explosive gases may escape from the battery during charging. Prevent flames and sparks. Provide adequate ventilation • Before charging, read the instructions •...
- Page 3 This allows the charger to be lightweight and compact without sacrificing on performance. SPARK-FREE AND POLARITY PROTECTED All Projecta Charge ‘N’ Maintain battery chargers are spark-free and are protected against accidental reverse connection making them safer to use around batteries. WEATHER PROOF IP65 The chargers are IP65 rated which means they can be used outside without getting damaged.
- Page 4 CHARGING INSTRUCTIONS STEP 1 – CHECK THE ELECTROLYTE LEVEL Prior to charging the battery, remove the vent caps and check the electrolyte level (not required on sealed & maintenance free batteries). The electrolyte should be 6mm (1/4”) above the battery’s plates. If low, top up with distilled water to the correct level and refit the vent caps.
- Page 5 Positively earthed Connect the BLACK lead (battery clip) from the charger to the Negative (-) battery terminal. Connect the RED lead (battery clip) from the charger to the vehicle’s chassis away from the fuel line or moving parts. Connection in vehicle (positively earthed) STEP 2C –...
- Page 6 STEP 5 – DISCONNECTION Ensure the 240V mains switch is turned off and the charger is disconnected from the 240V mains power. Battery out of vehicle Remove the BLACK lead (battery clip) from the battery. Remove the RED lead (battery clip) from battery. Battery in vehicle Remove the chassis connection.
- Page 7 This can occur if a small amount of power is used for a long time, for example a map reading light is left on for a week or more. Projecta Charge N’ Maintain battery chargers are designed to charge from 2.0 Volts.
- Page 8 WARRANTY STATEMENT APPLICABLE ONLY TO PRODUCT SOLD IN AUSTRALIA Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue will under normal use and service be free of failures in material and workmanship for a period of one (1) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked on the invoice.
