Avipas AV-1563 User Manual
30x full hd ptz camera with poe
Hide thumbs
Also See for AV-1563:
- User manual (49 pages) ,
- Quick start manual (5 pages) ,
- How to connect (5 pages)
Subscribe to Our Youtube Channel
Related Manuals for Avipas AV-1563
Summary of Contents for Avipas AV-1563

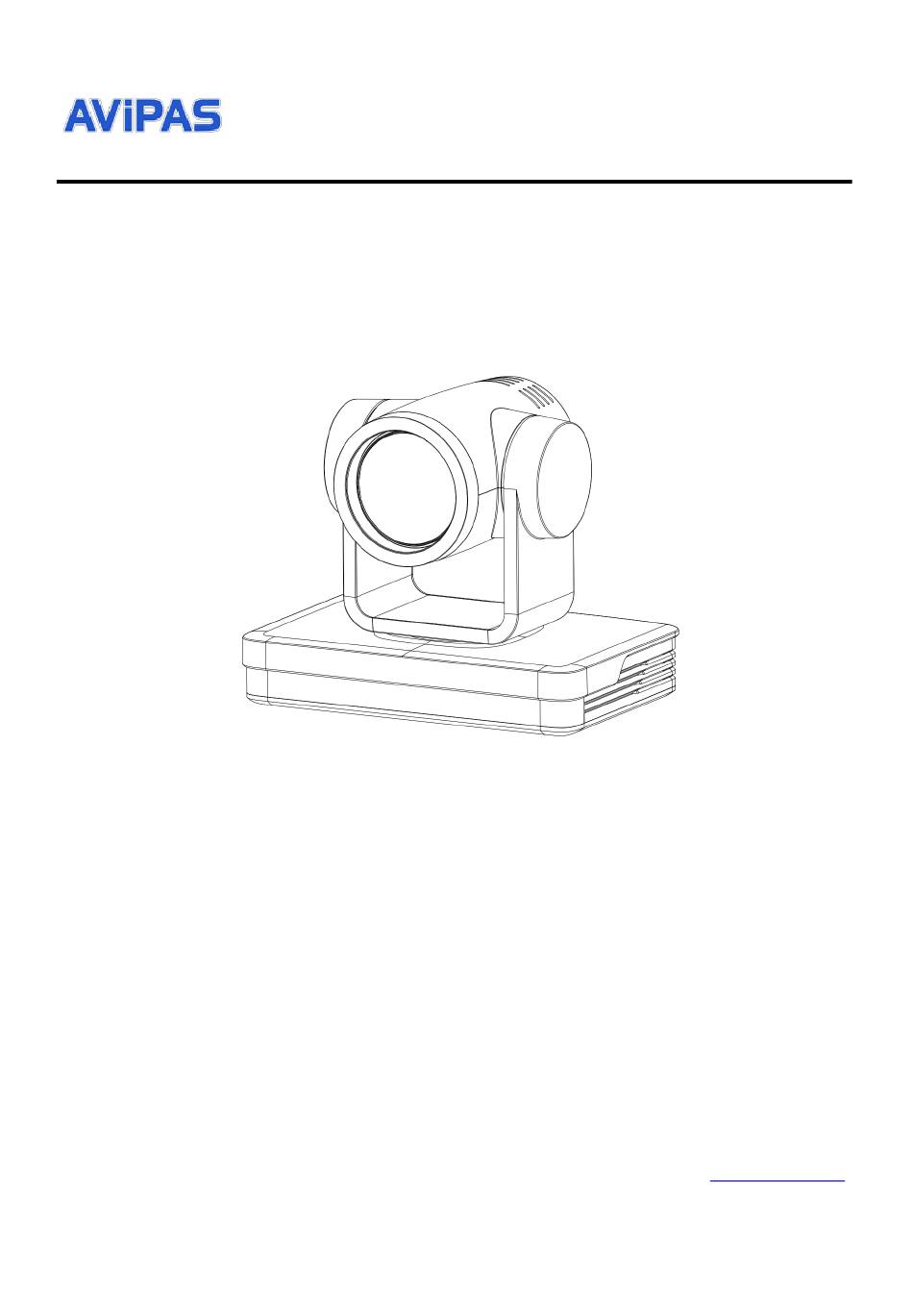

- Page 1 Model: AV-1563 30x Full HD PTZ Camera with PoE User Manual V1.0 Please read this user manual thoroughly before using. www.avipas.com...
- Page 2 Preface Thanks for using this HD Video Conferencing Camera. This manual introduces the functions, installation process and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product should only be used under the specified conditions in order to avoid any damage to the camera: ◼...
-
Page 3: Table Of Contents
Content 1. Camera Installation…………………………………………………………………...……………………….…………4 1.1 Camera Introduction……………………………………………………………………..…….………...….5 1.2 Interfaces and Connection…………………………………………………………….………..…………...5 1.3 Mounting Brackets………………………………………………………………………………….……..5 2. Product Overview…………………………………………………………………………...……………………..8 2.1 Dimensions..…………………...………………………………………………………...……...…………..8 2.2 RS-232 Interface……………………………………...……………………………...………...……………9 2.3 Rotary DIP Switch………………………………………………………………………………...……..10 2.4 Main Features……………………………………………………………………………………………...11 2.5 Specifications………………………………………………………………………………..………….….11 3. Remote Control……………………………………………………………………………………...……………13 3.1 Fuctions for IR Remote Control……………………………………………….………………………..13 3.2 Camera Menu ……..………………………………………...………………………..…………………...14 4. - Page 4 Attentions ⚫ Electric Safety Installation and operation must accord with electric safety standard. ⚫ Use caution to transport Avoid stress, vibration or soakage in transport, storage and installation. ⚫ Polarity of power supply The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power supply plug is shown in the drawing below.
-
Page 5: Camera Installation
1. Camera Installation 1.1 Camera Interface Illustration Figure 1.1 Interface of SU Model 10. Audio Input Interface (Line-in) 1. Camera Lens 11. Rotary DIP Switch 2. Camera Base 12. RS232 Control Interface (input) 3. Remote Control Receiving Indicator 13. RS232 Control Interface (output) 4. -
Page 6: Camera Introduction
1.2 Interface and Connection Figure 1.2 Wiring Diagram 1) After powering on and initialization, camera will automatically go to preset position 0 (Center position as default). 2) The default cam address for the IR remote control is #1. 1.3 Mounting Brackets Note: Ceiling or wall mounting brackets can only be mounted on a template and concrete wall. - Page 8 2) Ceiling Mounting...
-
Page 9: Product Overview
2. Product Overview 2.1 Dimensions Figure 2.2 Product Dimensions... -
Page 10: Rs-232 Interface
2.2 RS-232 Interface 1). RS-232 Interface Definition Connection to PC or Camera Controller Camera WindowsDB-9 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI 2). RS232 Mini-DIN 8-pin: Port Definition Port Definition Data Terminal Ready Data Set Ready... -
Page 11: Rotary Dip Switch
4). VISCA networking as shown below: Camera cascade connection Camera 1 Camera 2 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.OPEN 8. NC 8.OPEN 2.3 Rotary DIP Switch Dial-up video format Dial-up video format 1080P60 720P30 1080P50... -
Page 12: Main Features
2.4 Main Features AV-1563 camera features advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition. It supports H.265/H.264 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions. - Page 13 Minimum Illumination 0.5Lux (F1.8, AGC ON) 2D & 3D DNR White Balance Auto / Manual/ One Push/ Specify color temperature (range: 2400k-7100k) Focus/Aperture/ Auto/Manual/One Push Focus Electronic Shutter Iris Auto/Manual Shutter Auto/Manual ON/OFF OFF/ Dynamic level adjustment Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve >50dB Input/output Interface Video Output...
-
Page 14: Remote Control
3. Remote Control 3.1 Functions for IR Remote Control 1). In this manual, “press the key” means a short press rather than a long-press and hold. A note will be given if a long-press for more than one second is required. 2). -
Page 15: Camera Menu
11. Key Combination Functions 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【9】: Flip switch 4) 【*】+【#】+【AUTO】: Enter the auto mode 5) 【*】+【#】+【3】: Set language to Chinese 6) 【*】+【#】+【4】: Set language to English 7) 【*】+【#】+【MANUAL】: Restore the default user 8) 【#】... -
Page 16: Network Configuration
4. Network Configuration 4.1 Network Connection Direct connection: Connect the camera and computer via an Ethernet cable directly. Internet connection mode: Connect the camera to Internet (via a Router or a Switch). The computer must be assigned to the network segment where the camera IP address belongs to. The device will not be accessible otherwise. -
Page 17: Ie Login
Note: please make sure the IP address to be added is not the same as any other device connected to your computer. To verify the network segment has been successfully added, click “Search” icon and input “cmd”. Then click “Command Prompt” and open DOS command window. Ping 192.168.5.26 and press Enter key to display information as shown below: Connect the camera to your computer, power on. -
Page 18: Streaming
please download and install!”. Click on this message, download and install MRWebXinstall.exe following the information. 4.3 Video Encode 1). Video Stream Capture Configurations -> Video Configure-> Video Encode Configure the parameters according to the network settings. Note: stream name live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. -
Page 19: Software Upgrade
For connection details, please refer to: avipas.com-> SUPPORT -> HOW TO MATERIALS -> How to live stream. Host address: server address. Can be a domain name or an IP address... -
Page 20: Serial Port Communication And Control
192.168.5.163, user name: admin; password admin). 5. Serial Port Communication and Control AV-1563 could be controlled through RS232/RS485 interface; RS232C serial parameters are as below: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None. - Page 21 Command Function Command packet Note CAM _Focus Far(Standard) 8x 01 04 08 02 FF Near(Standard) 8x 01 04 08 03 FF Far(Variable) 8x 01 04 08 2p FF p = 0(low) - F(high) Near (Variable) 8x 01 04 08 3p FF Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position...
- Page 22 Command Function Command packet Note Reset 8x 01 04 0D 00 FF 8x 01 04 0D 02 FF Bright Setting CAM_Bright Down 8x 01 04 0D 03 FF Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright Positon 8x 01 04 3E 02 FF Exposure Compensation ON/OFF 8x 01 04 3E 03 FF...
-
Page 23: Visca Protocol Inquiry Command
Command Function Command packet Note CAM_SettingReset Reset 8x 01 04 A0 10 FF Reset Factory Setting CAM_Brightness Direct 8x 01 04 A1 00 00 0p 0q FF pq: Brightness Position CAM_Contrast Direct 8x 01 04 A2 00 00 0p 0q FF pq: Contrast Position 8x 01 04 A4 00 FF Flip-H... - Page 24 y0 50 00 FF CAM_AWBSensitivityInq 8x 09 04 A9 FF y0 50 01 FF Normal y0 50 02 FF High CAM_RGainInq 8x 09 04 43 FF y0 50 0B FF 7000K CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain y0 50 00 FF Full Auto...
-
Page 25: Pelco-D Protocol Command List
CAM_BrightnessInq 8x 09 04 A1 FF y0 50 00 00 0p 0q FF pq: Brightness Position CAM_ContrastInq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF pq: Contrast Position y0 50 00 FF y0 50 01 FF Flip-H CAM_FlipInq 8x 09 04 A4 FF... -
Page 26: Pelco-P Protocol Command List
Query Pan Position 0xFF Address 0x00 0x51 0x00 0x00 Query Pan Position Response 0xFF Address 0x00 0x59 Value High Byte Value Low Byte Query Tilt Position 0xFF Address 0x00 0x53 0x00 0x00 Query Tilt Position Response 0xFF Address 0x00 0x5B Value High Byte Value Low Byte Query Zoom Position... -
Page 27: Maintenance And Troubleshooting
First-time use, please connect the camera directly to your PC. b. Check if the computer is set to the network segment that is consistent with the IP address of the camera. For details, please refer to: avipas.com-> SUPPORT -> HOW TO MATERIALS -> Access camera via IP. - Page 28 This Limited Warranty does not cover problems including but not limited to: improper handling, malfunction or damage not resulting from defects in material. To receive warranty service, please contact AVIPAS Inc. first. We will decide whether a repair or replacement is needed and will advise you of the cost of such repair or replacement.
