Avipas AV-105 User Manual

Hd video conferencing camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

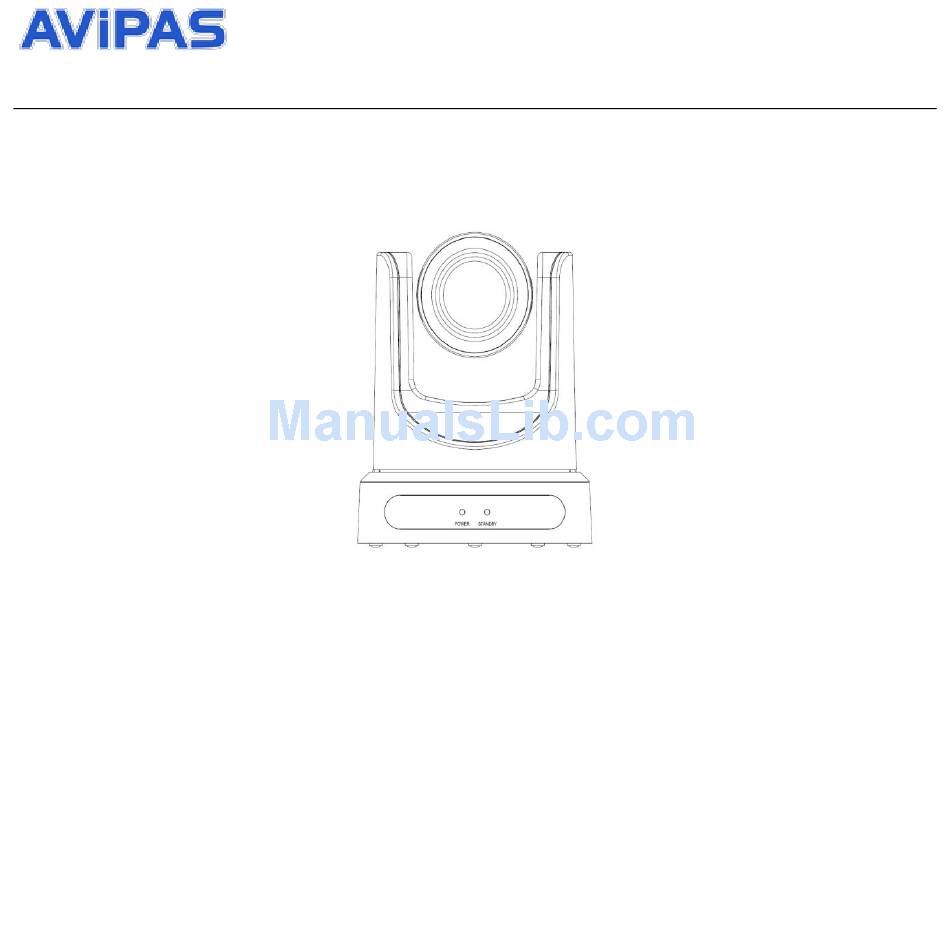

Model: AV-1050
HD Video Conferencing Camera

User Manual

V1.2
Please Read this User
Manual throughout before using.
www.avipas.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-105 and is the answer not in the manual?

Questions and answers

Related Manuals for Avipas AV-105

Summary of Contents for Avipas AV-105

  • Page 1: User Manual

    Model: AV-1050 HD Video Conferencing Camera User Manual V1.2 Please Read this User Manual throughout before using. www.avipas.com...
  • Page 2 Note This is class A production. Electromagnetic radiation at the specific frequency may affect the image quality Of TV in home environment. AViPAS Inc. Address: 4300 Stevens Creek Blvd. Suite 227 San Jose, CA 95129 Phone:...

  • Page 3: Table Of Contents

    Contents 1、 Note ··································································································3 2、 Supplied Accessories ··············································································4 3、 Quick Start ··························································································5 4、 Features ·····························································································8 5、 Product Specification ·············································································9 6、 Main Unit ························································································· 10 7、 IR Remote Controller Explanation ···························································· 11 8、 Use IR Remote Controller ······································································ 13 9、 RS-232 Interface ················································································· 16 10、...

  • Page 4: Note

    Note  Electric Safety Installation and operation must accord with electric safety standard.  Caution to transport Avoid stress, vibration and soakage in transport, storage and installation.  Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows.

  • Page 5: Supplied Accessories

    Supplied Accessories When you unpack, check that all the supplied accessories are included: Camera ........1PCS AC power adaptor ..... 1PCS Power cord ........1PCS RS232 cable ........ 1PCS Remote controller ......1PCS User manual ......1PCS...

  • Page 6: Quick Start

    Quick Start Step1. Please check connections are correct before starting...
  • Page 7 Step2. Setting of the switches Set both of the switch1 and switch2 to "OFF'. That is "Normal Working Mode". SW-1 SW-2 Modes Normal Working Mode Step3. Setting of the system select switch The option of video format: VIDEO SYSTEM 1080i60 1080i50 720p60 720p50...
  • Page 8 Step5. Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center, the process of initialization is finished. (Note: If the position preset 0 has been stored, the position preset 0 will be called up after initialization) Step6.

  • Page 9: Features

    Features 1. The camera provides a high performance in low illumination situations, particularly suitable for which room's lighting is not very well. 2. With maximum resolution of 1920 x 1080 and output frame rate up to 30 frames / sec, this camera provides high-definition as well as fluent video.

  • Page 10: Product Specification

    Product Specification Video Format 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, NTSC, PAL Video Output Interface HDMI,HD-SDI,CVBS Tilt Speed Range 1.7° ~ 69.9°/s Vertical flip & Sensor Type CMOS、1/3 inch Support Mirror Effective Pixel: 2.12 million; Sensor Pixel Number of Preset Total Pixel: 2.20million ≤0.1°...

  • Page 11: Main Unit

    Main Unit 1. Audio LINE IN Interface 8. RS232 OUT interface 2. Audio LINE OUT Interface 9. Network 3. CVBS Interface 10. HDMI Interface 4. Dip switches 11. HD-SDI Interface 5. System select switch 12. USB2.0 6. RS485 jack 13. DC 12V jack 7.

  • Page 12: Ir Remote Controller Explanation

    IR Remote Controller Explanation 0. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption in standby mode is approximately half of the normal mode) 1. Position Buttons To set preset or call preset 2.
  • Page 13 backlight ON / OFF button. 5. Focus Buttons Used for focus adjustment. Press [AUTO] adjust the focuses on the center of the object automatically. To adjust the focus manually, press the [MANUAL] button, and adjust it with [Focus＋] (Focus on far object) and [Focus－] (Focus on near object) 6.

  • Page 14: Use Ir Remote Controller

    USE IR Remote Controller When the camera is working, you can use Move up: Press [ ] remote controller to perform panning, tilting, Move down: Press [ ] zooming and focusing, store and call back preset Move left: Press [ ] positions.
  • Page 15 3. Focus Control 5. Presets Set/Clear Focus Far: Press [FOCUS+] button (NOTE: Effective only in manual focus mode) Focus Near: Press [FOCUS-] button (NOTE: Effective only in manual focus mode) Press and hold the button, the action of focus continues and stops as soon as the button is released. AUTO: Change focus mode to AF, adjusting the 1.
  • Page 16 6. Recalling the Preset Press the button corresponding to the camera you want to operate. 8. Camera IR Address Set Press any of the numeric buttons 0-9 directly to recall stored preset positions and settings. [*]+[＃]+[F1]: Address1 Note: [*]+[＃]+[F2]: Address2 No action is executed if a relative preset [*]+[＃]+[F3]: Address3 position is not stored.

  • Page 17: Rs-232 Interface

    RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND IR OUT 7.IR OUT 7.NC 8.NC...
  • Page 18 VISCA Network Configuration...

  • Page 19: Serial Communication Control

    Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface.  RS232 Communication Control The camera can be controlled via RS232, the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s. Start bit: 1 bit.
  • Page 20 VISCA Command List Part 1 Camera-Issued Messages Ack/Completion Message Function Command Command Packet Comments z0 4y FF Return when the command is accepted. ACK/Comletion (y: Socket No.) Messages z0 5y FF Return when the command has been Completion (y: Socket No.) executed.
  • Page 21 Returned when a command canot be z0 6y 41 FF executed due to current conditions.For Command Not Executable (y: Execution command Socket example, when commands controlling the No. Inquiry command: 0) focus manually are received during auto focus. Part 2 Camera Control Command Command Function Command Packet...
  • Page 22 Auto 8x 01 04 35 00 FF Normal Auto Indoor mode 8x 01 04 35 01 FF Indoor mode Outdoor mode 8x 01 04 35 02 FF Outdoor mode CAM_WB OnePush mode 8x 01 04 35 03 FF One Push WB mode Manual 8x 01 04 35 05 FF Manual Control mode...
  • Page 23 Reset 8x 01 04 0D 00 FF 8x 01 04 0D 02 FF Bright Setting CAM_Bright Down 8x 01 04 0D 03 FF Direct 8x 01 04 0D 00 00 0p 0q FF pq: Bright Position 8x 01 04 3E 02 FF Exposure Compensation On/Off 8x 01 04 3E 03 FF Reset...
  • Page 24 8x 01 04 3F 01 pp FF Recall 8x 01 04 3F 02 pp FF 8x 01 04 61 02 FF CAM_LR_Reverse Image Flip Horizontal On/Off 8x 01 04 61 03 FF 8x 01 04 66 02 FF CAM_PictureFlip Image Flip Vertical On/Off 8x 01 04 66 03 FF mm: Register No.
  • Page 25 High 8x 01 04 58 01 FF CAM_AFSensitivity Normal 8x 01 04 58 02 FF AF Sensitivity High/Normal/Low 8x 01 04 58 03 FF CAM_SettingReset Reset 8x 01 04 A0 10 FF Reset Factory Setting CAM_Brightness Direct 8x 01 04 A1 00 00 0p 0q FF pq: Brightness Position CAM_Contrast Direct...
  • Page 26 y0 50 03 FF Manual Focus CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position y0 50 00 FF Auto y0 50 01 FF Indoor mode CAM_WBModeInq 8x 09 04 35 FF y0 50 02 FF Outdoor mode y0 50 03 FF OnePush mode...
  • Page 27 CAM_ApertureModeI 8x 09 04 05 FF y0 50 03 FF Manual Sharpness nq(Sharpness) CAM_ApertureInq(Sh 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain arpness) CAM_PictureEffectM y0 50 02 FF 8x 09 04 63 FF odeInq y0 50 04 FF B&W...
  • Page 28 y0 50 05 FF NTSC y0 50 06 FF NTSC y0 50 07 FF 1920x1080p60 y0 50 08 FF 1920x1080i50 y0 50 09 FF 1920x1080p25 y0 50 0A FF 1280x720p50 y0 50 0C FF y0 50 0D FF y0 50 0E FF y0 50 02 FF IR_Receive 8x 09 06 08 FF...
  • Page 29 CAM_ContrastInq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF pq: Contrast Position y0 50 00 FF y0 50 01 FF Flip-H CAM_FlipInq 8x 09 04 A4 FF y0 50 02 FF Flip-V y0 50 03 FF Flip-HV CAM_IridixInq 8x 09 04 A7 FF...
  • Page 30 pp: R_Gain qq: B_Gain r: WB Mode s: Aperture tt: AE Mode CAM_CameraBlockIn y0 50 0p 0p 0q 0q 0r 0s tt 0u vv 8x 09 7E 7E 01 FF u.bit2: Back Light ww 00 xx 0z FF u.bit1: Exposure Comp. vv: Shutter Position ww: Iris Position xx: Bright Position...
  • Page 31 Pelco-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...
  • Page 32 Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0...

  • Page 33: Menu Setting

    Menu Setting 1. MENU EXPOSURE Press [MENU] button to display the main menu Mode Auto on the normal screen, using arrow button to move ExpCompMode the cursor to the item to be set. Press the [HOME] Backlight button to enter the corresponding sub-menu. Gain Limit Anti-Flicker MENU...
  • Page 34 DRC:DRC strength, Optional items: 0 ~ 8. COLOR Bright: Intensity control, Optional items:00~17. WB Mode Auto (Effective only in Bright mode) RG Tuning Anti-Flicker Flicker: Anti-flicker. Optional BG Tuning items: Off,50Hz,60Hz (Effective only in Auto, Saturation Bright mode) Iris: Aperture value. Optional items: F1.8, IR Filter F2.0,F2.4,F2.8,F3.4,F4.0,F4.8,F5.6,F6.8,F8.0,F AWB sens...

  • Page 35: Noise Reduction

    AWB sens: The white balance sensitivity, items: On, Off Flip-V: Image Flip Vertical. Optional items: Normal, High, Low. Optional Items: On, Off B&W-Mode: Image color. Optional items: On, Off Gamma: Optional items: Default,0.45,0.5,0.56, 4. IMAGE 0.63 Move the cursor to the Image item in the main menu and press [home] button, IMAGE menu appears, as shown in the following figure.
  • Page 36 Move the cursor to the Noise Reduction item in SETUP the main menu and press [home] button, NOISE Language REDUCTION menu appears, as shown in the Protocol VISCA following figure. V_Address NOISE REDUCTION V_AddrFix NR2D-Level 3 Net Mode Serial NR3D-Level 3 Baudrate 9600 D-HotPixel...
  • Page 37 Net Mode: Set the serial port control networking, Optional items: Serial, Paral Baudrate: Serial port baud rate. Optional items: 2400, 4800, 9600 8. RESTORE DEFAULT Move the cursor to the Restore Default item in the main menu and press [home] button, RESTORE DEFAULT menu appears, as shown in the following figure.

  • Page 38: Maintains And Trouble Shooting

    Maintenance and Troubleshooting Camera Maintains  If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet.  Use soft cloth or tissue to clean the camera cover. ...
  • Page 39 Control  IR remote controller cannot control the camera 1. Change the battery 2. Check the camera working mode. 3. Check IR address of the Remote Commander is set correctly.  Serial communication cannot control the camera 1. Check the camera working mode. 2.
