  • Page 1: User Manual

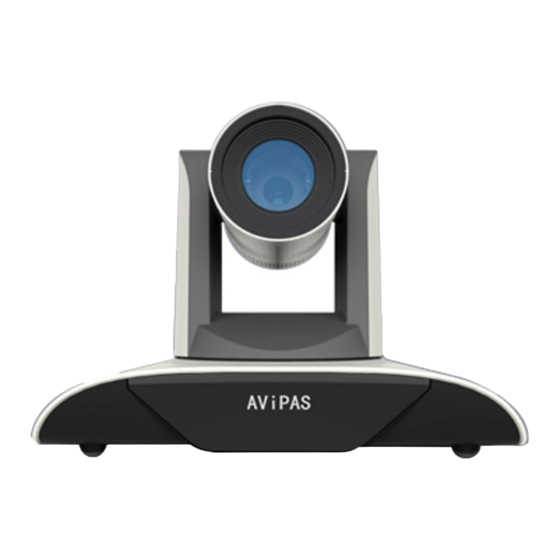

    Model: AV-1361 HD IP Video Conference Camera User Manual V1.1 Please Read this User Manual throughout before using. www.avipas.com...
  • Page 2 Attentions Electric Safety Installation and operation must accord with electric safety standard. Caution to transport Avoid stress, vibration and soakage in transport, storage and installation. Polarity of power supply The power supply of the product is ±12V, the max electrical current is 2A .Polarity of the power supply drawing.
  • Page 3 This Limited Warranty covers any defects in material under normal use during the Warranty Period. During the Warranty Period, AVIPAS Inc. will repair or replace, at no charge and products that proves defective because of improper material, under normal use and maintenance.

  • Page 4: Table Of Contents

    Content 1. Fast Installation ................................. 4 1.1 Camera Interface Explanation ........................4 1.2 Power on Initial Configuration ........................4 1.3 Video output ..............................4 1.4 BRACKET MOUNTING ..........................5 2.Product overview ............................... 8 2.1 Product introduction ............................8 2.2 Main Features ............................... 10 2.3 Technical specification..........................

  • Page 5: Fast Installation

    Note: If you set preset 0,when Power on initial configuration is completed,the camera automatically moves to the preset 0 position. 1.3 Video output AV-1361’s video outputs: LAN,DVI (HDMI) and 3G-SDI. 1) Video output from LAN. Network cable connection port: AV-1361-No.14 in Figure1.1.

  • Page 6: Bracket Mounting

    2) DVI(HDMI) video output a. DVI video cable connection: AV-1361 refer to No.13 in Figure1.1. Connect the camera and the monitor via DVI video cable; video output is available after camera initial configuration. 3) 3G-SDI video output a.
  • Page 7 2) Upside-down installation steps...

  • Page 9: Product Overview

    2.1.1 Product model Model NO.: AV-1361. Model NO.X—XXX—XXX—XX IR ---IR remote controller WR---wireless remote controller AV-1361---standard interface(optional 5G wifi function) 20x optical zoom lens S---1080P60 downward compatibility M---1080P30downward compatibility Please refer to corresponding features in this manual. 5Gwifi is optional for AV-1361.
  • Page 10 Figure 2.2 AV 1361 Camera dimension 2.1.3 Accessory When you unpack,check that all the supplied accessories are included: Model NO. AV-1361 Power adapter 1piece RS232 cable 1piece User manual 1piece Standard Double-side glue shim 4pcs Warranty card 1piece Accessory IR Remote controller 1piece...

  • Page 11: Main Features

    8)Support Multiple Control Protocol: Support VISCA,PELCO-D,PELCO-P protocols which can also be automatically recognized. Support VISCA control protocol through IP port. 9)RS-232 cascade function: series support RS-232 cascade function which is convenient for AV-1361 installing. 10)255 presets positions: Up to 255 presets (10 presets by remoter). 11)Wide application:...

  • Page 12: Technical Specification

    4)5G WI-FI function:If the product contains 5G wi-fi module,you can set up a wireless wi-fi connection in a webpage,the specific configuration described in detail on the page of web configuration. 2.3 Technical specification Model AV-1361 Camera Parameter Optical Zoom 20X, f＝4.7～94mm Sensor 1/2.8 inch high quality HD CMOS sensor...

  • Page 13: Interface Instruction

    Remote Operation (IP) Remote Upgrade,Reboot and Reset Accessory power supply, RS232 control cable, remoter,manual,warranty card 2.4 Interface instruction 2.4.1 External Interface External interface of AV-1361 models: Rotary switch,RS232 input output,RS485 input,audio input,3G-SDI output,DVI（HDMI）output,LAN,DC12V power interface. Figure 2.3 AV-1361 model external interface diagram...
  • Page 14 AV-1361 model Bottom DIP Switch diagram shown in Figure 2.4. Figure 2.4 Bottom DIP Switch diagram AV-1361 model two DIP switches are set to ON or OFF to select different modes of operation as shown in Table 2.2. Table 2.2 DIP Switch setting...
  • Page 15 2)Only when the rotary dial code is F,the video format is displayed on the menu item. 3)Rotary switch setting is 0-E, rotary switch setting decides video format. 2.4.4 RS-232 interface 1)AV-1361 model RS-232C interface specification as shown below Computer or keyboard and camera connection method Camera WindowsDB-9 1.DTR...
  • Page 16 Camera cascade connection method Camera 1 Camera 2 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.OPEN 8. NC 8.OPEN Note: AV-1361 model has RS232 input and output interface,so you can cascade as the above way.

  • Page 17: Application Instruction

    3. Application Instruction 3.1 Video Output 3.1.1 Power-On Initial Configuration Connecting the power,camera will have initial configuration,IR indicator light will be flashing. When the camera return to the HOME position(middle position for P/T),and lens finish zoom in/out,the auto-testing is finished. IR led will also stop flashing. If the preset 0 is set,camera will rotate to the 0 preset position after initial configuration.

  • Page 18: Remote Controller

    3.2 Remote controller 3.2.1 Keys Instruction 1. Standby key After 3S long press ,the camera will step into standby mode. Long press 3S again,the camera will initial configuration again and back to HOME position. (Note: If power-on mode is turned on and Preset 0 is set,and there is no operation within 12s,it will automatically point to the specified preset position.
  • Page 19 7) 【*】+【#】+Manual:Restore the default user 8) 【#】+【#】+【0】:Switch the video format to name,password,and IP address 1080P60 9) 【#】 + 【#】 + 【1】 : Switch the video format to 1080P50 10)【#】+【#】+【2】:Switch the video format to 1080I60 11) 【#】 + 【#】 + 【3】 :Switch the video format to 1080I50 12)【#】+【#】+【4】:Switch the video format to 720P60 13) 【#】...

  • Page 20: Menu Setting

    4) Focus Control Focus (near):Press ”【focus+】” key (Valid only in manual focus mode) Focus (far): Press “【focus-】“key (Valid only in manual focus mode) Auto Focus: Support Manual Focus: Support Press and hold the key,the action of focus will keep continue and stops as soon as the key is released. 5) BLC Setting BLC ON / OFF: support 6) Presets setting,Running,clearing...
  • Page 21 MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English (Setup) (Camera) (P/T/Z) (Video Format) (Version) (Restore Default) [← →]Change Value [↑↓]Select [Menu]Back [Home]OK LANGUAGE:Language setting,Chinese / English SETUP:System setting CAMERA OPTION:Camera setting PTZ OPTION:Pan tilt setting VERSON: camera version setting Restore Default:Reset setting [↑↓] Select:for selecting menu [←...
  • Page 22 3.3.3 Camera setting Move the pointer to the (CAMERA) in the Main Menu,click the【HOME】key and enter the (CAMERA) as follow, CAMERA ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ (Exposure) (Color) (Image) (Focus) (Noise Reduction) Style default [← →]Change Value [↑↓]Select [Menu]Back [Home]OK EXPOSURE:Enter into Exposure setting COLOR:Enter into color setting Image:Enter into image setting Focus:Enter into focus setting...
  • Page 23 Gain limit:0~15(only available in Auto/ Iris priority /Brightness priority mode) Shutter priority:1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,1/1000,1/2000,1/3000,1/4000,1/6 000, 1/10000(only available in Manual and Shutter priority mode) IRIS priority:OFF,F11.0,F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,F2.8,F2.4,F2.0,F1.8(only available Manual and Iris priority mode) BRIGHTNESS:0~23 (only available in Brightness priority mode) DRC:Dynamic range ,1~8 and OFF for options. 2) COLOR SETTING Move the pointer to the (COLOR) in the Main Menu,click the【HOME】and enter the (COLOR SET) as follow,...
  • Page 24 IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default DZoom Close [← →]Change Value [↑↓]Select [Menu]Back Brightness:0~14 Contrast:0~14 Sharpness:0~15 Flip-H:horizontal flip, On/Off Flip-V:vertical flip,On/Off B&W mode:color,B/W for options Gamma:default,0.45,0.50,0.55,0.63 DZoom:digital zoom options:On/Off DCI:Dynamic Contrast:Off,1～8 4) FOCUS Move the pointer to the (FOCUS) in the Menu,click the【HOME】and enter the (FOCUS) as follow, FOCUS ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
  • Page 25 NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D NR-3D Dynamic Hot Pixel [← →]Change Value [↑↓]Select [Menu]Back 2D NOISE REDUCTION: Auto,close,1~7 3D NOISE REDUCTION:Close,1~8 Dynamic Hot Pixel:Close,1~5 3.3.4 P/T/Z Move the pointer to the (P/T/Z) in the Main Menu,click the【HOME】and enter the (P/T/Z) as follow, P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
  • Page 26 [↑↓]Select [Menu]Back [Home]OK Note:For AV-1361 series,only when rotary dial switch is F,the video format is displayed on the menu item. AV1361 supports up to 1080p30. Pls exit the menu after any modifications,then it can be saved after power off/on. 3.3.6 VERSION Move the pointer to the (VERSION) in the Main Menu,click the【HOME】and enter the (VERSION) as...

  • Page 27: Network Connection

    RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? [← →]Change Value [↑↓]Select [Menu]Back [Home]OK Restore default: YES/No(color style and video format cannot be restored to default setting) Note:If the address of former remoter is not 1 but another one from 2,3,4,the corresponding camera address will restore to 1 when all parameters or system parameters are restored.
  • Page 29 Note:The IP address to be added cannot be same with that of other computers or devices.The existence of this IP address needs to be verified before adding. Click the “Start” and select “Operation” to input cmd as picture below to verify if the network segment has been successfully added.

  • Page 30: Ie Log In

    User can also to verify network connection as steps above mentioned after the finish of camera self-check. If IP is default,open DOS command window and input 192.168.5.163,then press Enter key,then network connection is normal. 4.2 IE Log In 4.2.1 Web client 1) Web client Log In Input the IP address 192.168.5.163 of the device in the address filed of browser and click Enter button to enter into Web Client login page as below picture.
  • Page 31 User name,password,the default admin PTZ control can be carried out,zoom,focus,video capture,sound,zoom,full screen and set the preset position,run,and delete; you can preview,playback,configuration,log off. 2) Login as normal user Default User name/password:user1 or user2 PTZ control can be carried out,zoom,focus,video capture,sound,zoom,full screen and set the preset position,run,and delete;...
  • Page 32 minutes) Recording/Snapshot file storage route: Set local recording video/snapshot file storage route.(Default D:\MyIPCam\) Click the Save button to make settings effective. 2) Audio Configuration Switch: Choose to enable the audio or not. Compressing format: Set audio compressing format and the device will reboot automatically after change (default MP3,PCM,AAC optional) Sampling frequency: Set sampling frequency and the device will reboot automatically after change...
  • Page 33 Click on the "Save" button to display the "Save successful" message, then settings take effect. Method of obtaining RTSP: rtsp: // device IP address: 554 / live / av0 (av0 main stream; av1 secondary stream). 3) Video Parameters a, Focus: Focus mode, focus range, focus sensitivity can be set. Focus Mode: set the focus mode (the default auto, manual optional) Focus range: set the focus range (the default middle, the upper and lower optional) Focus Sensitivity: Set the focus sensitivity (default is low, high, medium optional)
  • Page 34 d, Image: Brightness, contrast, sharpness, black and white mode, Gamma, DCI, Horizontal Flip, Vertical Flip and Digital zoom can be set. Brightness: Set the brightness (default 7,0-14 optional) Contrast: set the contrast (default 7,0-14 optional) Sharpness: Set the sharpness value (default 4,0-15 optional) Black and white mode: Set black and white mode (default color, black/white optional ) Gamma: Gamma value setting (default,0.45,0.50,0.52,0.55 optional) Dynamic contrast: dynamic contrast setting(default close,1~8 optional)
  • Page 35 4.2.6 Network configuration 1) Network port Data port: set the data port, the device will restart automatically after changed(default 3000,0-65535 optional) Web Port: Set Web port, the device will restart automatically after changed (default is 80,0-65535 is optional) Onvif Port: Set Onvif port, the device will restart automatically after changed(default 2000,0-65535 optional) Soap Port: Set Soap port (default 1936,0-65535 optional) RTMP Port: Set RTMP port (default 1935,0-65535 optional)
  • Page 36 Alarm Zone:Users can add their own Equipment installation address: Users can add their own Local SIP Port:5060 Range 0-65535 GB28181 Server Address:IP address of the computer Server SIP Port:5060 Range 0-65535 Server ID:34020000002000000001 Click on the "Save" button,it will be valid when display "Save successful". 4.2.7 System configuration 1) Device Properties Device Name: Set the device name (the default Camera1,user can add their own)
  • Page 37 4) Version upgrade MCU version V2.0.0.16 2015-12-18 Camera version V2.0.0.16 2015-12-18 Focus version V2.0.0.6 2015-12-11 Users only read the version information above which is consistent with the menu version but can not modify.Different types of the machine has different information. Update file: Click "Browse ..."...

  • Page 38: Serial Communication Control

    available after restarting. 2)WiFi hot link Click on the “search” button to search the WIFI hotspot. Double-click the dialog box after searched user WIFI hotspot,and then input password to connect WIFI. It connected successfully after shown “successful connect” window. 3)Wireless WiFi login page If you do not check the above configuration DHCP (automatically obtain IP),then open the browser,enter the wireless network IP address in the address bar (default 192.168.1.250),press Enter to log construction;If you checked DHCP,then you obtain IP automatically,just login specific router or switch user...
  • Page 39 AddressSet Broadcast 88 30 0p FF p:VISCA Address IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele(Standard) 8x 01 04 07 02 FF Wide(Standard)
  • Page 40 CAM_Gain Limit Gain Limit 8x 01 04 2C 0p FF p: Gain Positon Reset 8x 01 04 0D 00 FF 8x 01 04 0D 02 FF Bright Setting CAM_Bright Down 8x 01 04 0D 03 FF Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright Positon 8x 01 04 3E 02 FF Exposure Compensation ON/OFF...
  • Page 41 13:190% 14:200% CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) 8x 01 04 06 06 02 FF Turn on the menu screen SYS_Menu 8x 01 04 06 06 03 FF Turn off the menu screen 8x 01 06 08 02 FF IR(remote commander)receive IR_Receive...
  • Page 42 5.1.3 Inquiry command Command Function Command packet Note y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusAFMod 8x 09 04 38 FF...
  • Page 43 y0 50 03 FF y0 07 7D 01 04 00 FF Power ON/OFF y0 07 7D 01 04 07 FF Zoom tele/wide y0 07 7D 01 04 38 FF AF ON/OFF IR_ReceiveReturn y0 07 7D 01 04 33 FF Camera _Backlight y0 07 7D 01 04 3F FF Camera _Memery y0 07 7D 01 06 01 FF...

  • Page 44: Pelco-D Protocol Command List

    5.2 Pelco-D protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00...

  • Page 45: Pelco-P Protocol Command List

    5.3 Pelco-P protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right...

  • Page 46: Camera Maintenance And Troubleshooting

    6. Camera Maintenance and Troubleshooting 6.1 Camera Maintenance 1) If camera is not used for long time, please turn off power adapter switch and AC plug. 2) Use soft cloth or tissue to clean the camera cover. 3) Use soft cloth to clean the lens; Use neuter cleanser if bad smeared. No use strong or corrosive cleanser or corrosive cleanser avoiding scuffing.
  • Page 47 a, Check whether the camera is showing normally. b, Check whether the network cable is connected properly (Ethernet port yellow light flashes to indicate normal network cable connection). c, Check whether your computer is added the segment and the segment is consistent with the IP address of the camera.
