Model: AV-1330
HD Video Conferencing Camera

User Manual

V1.6
Please Read this User
Manual throughout before using.
www.avipas.com.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-1330 and is the answer not in the manual?

Questions and answers

Related Manuals for Avipas AV-1330

Summary of Contents for Avipas AV-1330

  • Page 1: User Manual

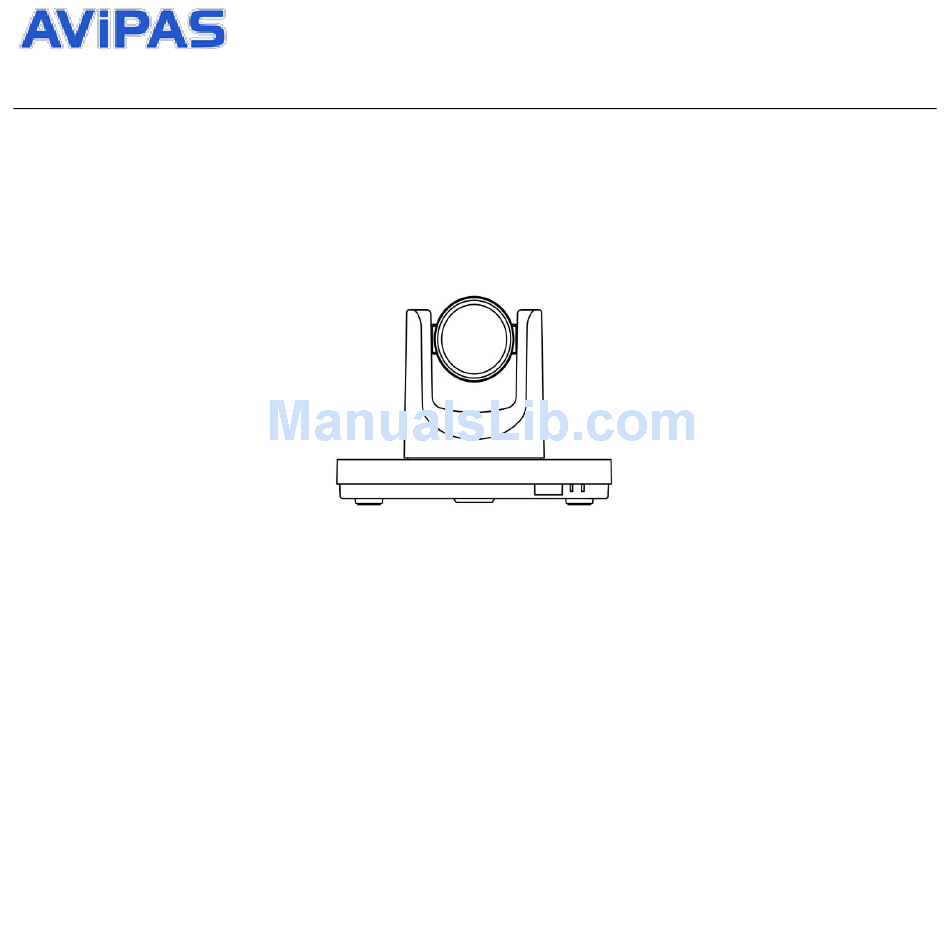

    Model: AV-1330 HD Video Conferencing Camera User Manual V1.6 Please Read this User Manual throughout before using. www.avipas.com.

  • Page 2: Camera

    Note This is class A production. Electromagnetic radiation at the specific frequency may affect the image quality of TV in home environment. AViPAS Inc. Address: 4300 Stevens Creek Blvd. Suite 227 San Jose, CA 95129 Phone:...

  • Page 3: Table Of Contents

    Contents Note ··································································································3 Supplied Accessories ··············································································4 Quick Start ··························································································5 Features ·····························································································8 Product Specification ·············································································9 Main Unit ························································································· 10 IR Remote Controller Explanation ···························································· 11 Use IR Remote Controller ······································································ 13 RS-232C Interface ··············································································· 16 Serial Communication Control ································································ 18 Menu Setting ····················································································· 31 Maintains and Trouble Shooting ······························································...

  • Page 4: Note

    Note  Electric Safety Installation and operation must accord with electric safety standard.  Caution to transport Avoid stress, vibration and soakage in transport, storage and installation.  Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows.

  • Page 5: Supplied Accessories

    Supplied Accessories When you unpack, check that all the supplied accessories are included: Camera ........1 AC power adaptor ....... 1 Power cord ........1 VISCA cable ....... 1 Remote controller ......1 User manual ......1...

  • Page 6: Quick Start

    Quick Start Step1. Please check connections are correct before starting...
  • Page 7 Step2. Setting of the bottomswitches Set both of the switch1 and switch2 to ‘OFF’. That is ‘Normal Working Mode’. SW-1 SW-2 Modes Normal Working Mode Software Update Mode Factory Debug Mode None Step3. Setting of the system select switch The option of video format: VIDEO SYSTEM 1080p60 720p30...
  • Page 8 Step4. Press the Switch ON/OFF button on the rear of the camera, the power lamp light. Step5. Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center, the process of initialization is finished. (Note: If the position preset 0 has been stored, the position preset 0 will be called up after initialization) Step6.

  • Page 9: Features

    Features 1. Integrated 72.5 degree wide-angle lens for the first time, Optical 12x. 2. Camera provides a high performance in low illumination situations, particularly suitable for which room's lighting is not very well. 3. With maximum resolution of 1920 x 1080 and output frame rate up to 60 or 50 frames / sec, this camera provides high-definition as well as fluent video.

  • Page 10: Product Specification

    Product Specification Model 1080p/60, 1080p/59.94,1080p/50, 1080p/30, 1080p/29.97,1080p/25, 1080p/30, 1080p/29.97,1080p/25, 1080i/60, 1080i/59.94,1080i/50, 720p/60, 720p/59.94,720p/50, Video Format 1080i/60, 1080i/59.94,1080i/50, 720p/60, 720p/59.94,720p/50, 720p/30, 720p/29.97,720p/25 720p/60, 720p/59.94,720p/50, 720p/30, 720p/29.97,720p/25 720p/30, 720p/29.97,720p/25 DVI (HDMI, YPbPr), HD-SDI Video Output Interface Tilt Speed Range 1.7° ~ 69.9°/s (Optional) Sensor Type CMOS, 1/3 inch...

  • Page 11: Main Unit

    Main Unit 1. Lens 2. Sensor for the Remote Commander 3. Power lamp 4. Standby lamp 5. Bottom switches 6. Tripod screw hole 7. Fixing screw whole 8. System select switch 9. RS232 in jack 10. RS232 out jack 11. HD-SDI video jack (Optional) 12.

  • Page 12: Ir Remote Controller Explanation

    IR Remote Controller Explanation 0. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption in standby mode is approximately half of the normal mode) 1. Position Buttons To set preset or call preset 2.
  • Page 13 become dark. In this case, press the backlight ON / OFF button. To cancel this function, press the backlight ON / OFF button. 5. Focus Buttons Used for focus adjustment. Press [AUTO] adjust the focuses on the center of the object automatically. To adjust the focus manually, press the [MANUAL] button, and adjust it with [Focus+] (Focus on far object) and [Focus-] (Focus on near object) 6.

  • Page 14: Use Ir Remote Controller

    USE IR Remote Controller When the camera is working, you can use Move up: Press [ ] remote controller to perform panning, tilting, Move down: Press [ ] zooming and focusing, store and call back preset Move left: Press [ ] positions.
  • Page 15 effective in full auto exposure mode) 3. Focus Control 5. Presets Set/Clear Focus Far: Press [FOCUS+] button(NOTE: Effective only in manual focus mode) Focus Near: Press [FOCUS-] button(NOTE: Effective only in manual focus mode) Press and hold the button, the action of focus continues and stops as soon as the button is released.
  • Page 16 7. Camera Selection Press [#]+[#]+[#] will erase all preset positions in the memory. 6.Recalling the Preset Press the button corresponding to the camera you want to operate. 8. Camera IR Address Set Press any of the numeric buttons 0-9directly to [*]+[＃]+[F1]: Address1 recall stored preset positions and settings.

  • Page 17: Rs-232Cinterface

    RS-232CInterface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND IR OUT 7.IR OUT 7.NC 8.NC...
  • Page 18 VISCA Network Configuration...

  • Page 19: Serial Communication Control

    Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface. The parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s. Start bit: 1 bit. Data bit: 8 bits. Stop bit: 1bit.
  • Page 20 VISCA Command List Part 1 Camera-Issued Messages Ack/Completion Message Command Command Packet Comments z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = Camera Address+8 Error Messages Command Command Packet Comments Returned when the command format is different or when a...
  • Page 21 Wide(Standard) 8x 01 04 07 03 FF Tele(Variable) 8x 01 04 07 2p FF p = 0(low) - 7(high) Wide(Variable) 8x 01 04 07 3p FF Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position Stop 8x 01 04 08 00 FF Far(Standard) 8x 01 04 08 02 FF...
  • Page 22 Down 8x 01 04 04 03 FF Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Manual 8x 01 04 39 03 FF Manual Control mode Shutter priority 8x 01 04 39 0A FF Shutter Priority Automatic Exposure mode...
  • Page 23 Down 8x 01 04 0E 03 FF Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position 8x 01 04 33 02 FF CAM_BackLight Back Light Compensation ON/OFF 8x 01 04 33 03 FF CAM_NR(2D) 8x 01 04 53 0p FF p: NR Setting (0: OFF, level 1 to 5) CAM_NR(3D) 8x 01 04 54 0p FF...
  • Page 24 Down 8x 01 06 01 VV WW 03 02 FF speed) WW: Tilt speed 0x01 (low speed) to 0x14 (high Left 8x 01 06 01 VV WW 01 03 FF speed) Right 8x 01 06 01 VV WW 02 03 FF YYYY: Pan Position(TBD) Upleft 8x 01 06 01 VV WW 01 01 FF...
  • Page 25 8x 01 04 AA 00 FF CAM_AFZone Center 8x 01 04 AA 01 FF AF Zone weight select Bottom 8x 01 04 AA 02 FF HDMI 8x 01 04 AB 02 FF CAM_DVIMode DVI output mode, default: HDMI 8x 01 04 AB 03 FF p: Color Hue setting 0h (−...
  • Page 26 y0 50 0B FF Iris priority y0 50 21 FF y0 50 22 FF Low Light CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position CAM_IrisPosInq 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq: Iris Position CAM_WDRStrengthInq 8x 09 04 B1 FF...
  • Page 27 vw: Socket Number y0 50 00 FF 1920x1080i60 y0 50 01 FF 1920x1080p30 y0 50 02 FF 1280x720p60 y0 50 03 FF 1280x720p30 y0 50 07 FF 1920x1080p60 VideoSystemInq 8x 09 06 23 FF y0 50 08 FF 1920x1080i50 y0 50 09 FF 1920x1080p25 y0 50 0A FF 1280x720p50...
  • Page 28 CAM_GammaInq 8x 09 04 5B FF y0 50 0p FF p: Gamma setting (0x00~0x0A) y0 50 00 FF CAM_AFZone 8x 09 04 AA FF y0 50 01 FF Center y0 50 02 FF Bottom y0 50 02 FF DVI Mode:HDMI CAM_DVIModeInq 8x 09 04 AB FF y0 50 03 FF...
  • Page 29 Part 4Custom control command Command Function Command packed Comments 8x 02 16 16 16 65 FF CAM_Power Custom Power ON/OFF OFF(Standby) 8x 02 16 16 16 56 FF Forwarding TCL Standby 8x 01 02 75 75 01 04 FF AD DA 02 B0 01 04 AF FA TCL_Power Forwarding TCL Wakeup...
  • Page 30 Pelco-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...
  • Page 31 Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0...

  • Page 32: Menu Setting

    Menu Setting 1.MENU EXPOSURE Press [MENU] button to display the main menu Mode Auto on the normal screen,using arrow button to move the cursor to the item to be set.Press the [HOME] button EVLevel to enter the corresponding sub-menu. G.Limit MENU Exposure Flicker...
  • Page 33 F2.4,F2.8,F3.4,F4.0,F4.8,F5.6,F6.8,F8.0,F9.6,F11.0, COLOR Close（Effective only in Manual, AAE mode） WB-Mode Auto Shutt: Shutter value. Optional items:1/2,1/4, RTuning 1/8,1/15,1/30,1/60,1/90,1/100,1/125,1/180,1/250,1/35 BTuning 0,1/500,1/725,1/1000,1/1500,1/2000,1/3000,1/4000,1 Sat. 110% /6000,1/10000(Effective only in Manual, SAE mode) AWBSens Normal Stren: WDR strength. Optional items: 0~6(Effective only in WDR mode) Meter: Metering mode, Optional items: Global, Center Select Item Bright: Intensity control, Optional items:00 ~ 23...
  • Page 34 items: Low, Normal, High Hue: Automatic white balance is tonal, Optional Sharpness: Sharpness adjustment. Optional items: 0 ~ items:-7 ~ +7, Default 0（Effective only in Manual mode） B&W-Mode: Black and white mode switch. Optional items: On, Off Flip-H:Image flipped horizontally. Optional items: 4.
  • Page 35 L/R Set: Reverse setting remote control, Optional NOISE REDUCTION items: STD, REV(When set to REV, remote control NR2D-Level 4 reverse) NR3D-Level 3 AF-Zone: Interested in focusing area, Optional items: D-HotPixel Center, Bottom, Top DarkDetail AF-Sense: Automatic focusing sensitivity options, Optional items: Low, Normal, High 6.
  • Page 36 Protocol: Control protocol type. Optional items: 7. SETUP VISCA,P-D,P-P Move the cursor to the Setup item in the main Address: protocol address, To be decided according menu and press [HOME] button, SETUP menu to the agreement, can be set up under the VISCA appears, as shown in the following figure.
  • Page 37 serial address. 8. RESTORE DEFAULT Move the cursor to the Restore Default item in the main menu and press [HOME] button, RESTORE DEFAULT menu appears, as shown in the following figure. RESTORE DEFAULT Restore? Change Value [Home] OK [Menu] Back Restore: Confirm restore factory settings.

  • Page 38: 12, Maintains And Trouble Shooting

    Maintenance and Troubleshooting Camera Maintains  If camera will not be used for a long time, please turn off the power switch,disconnect AC power cord of AC adaptor to the outlet.  Use soft cloth or tissue to clean the camera cover. ...

  • Page 39: Remote Controller

    Control  IR remote controller cannot control the camera 1. Change the battery 2. Check the camera working mode. 3. Check IR address of the Remote Commander is set correctly.  Serial communication cannot control the camera 1. Check the camera working mode. 2.
