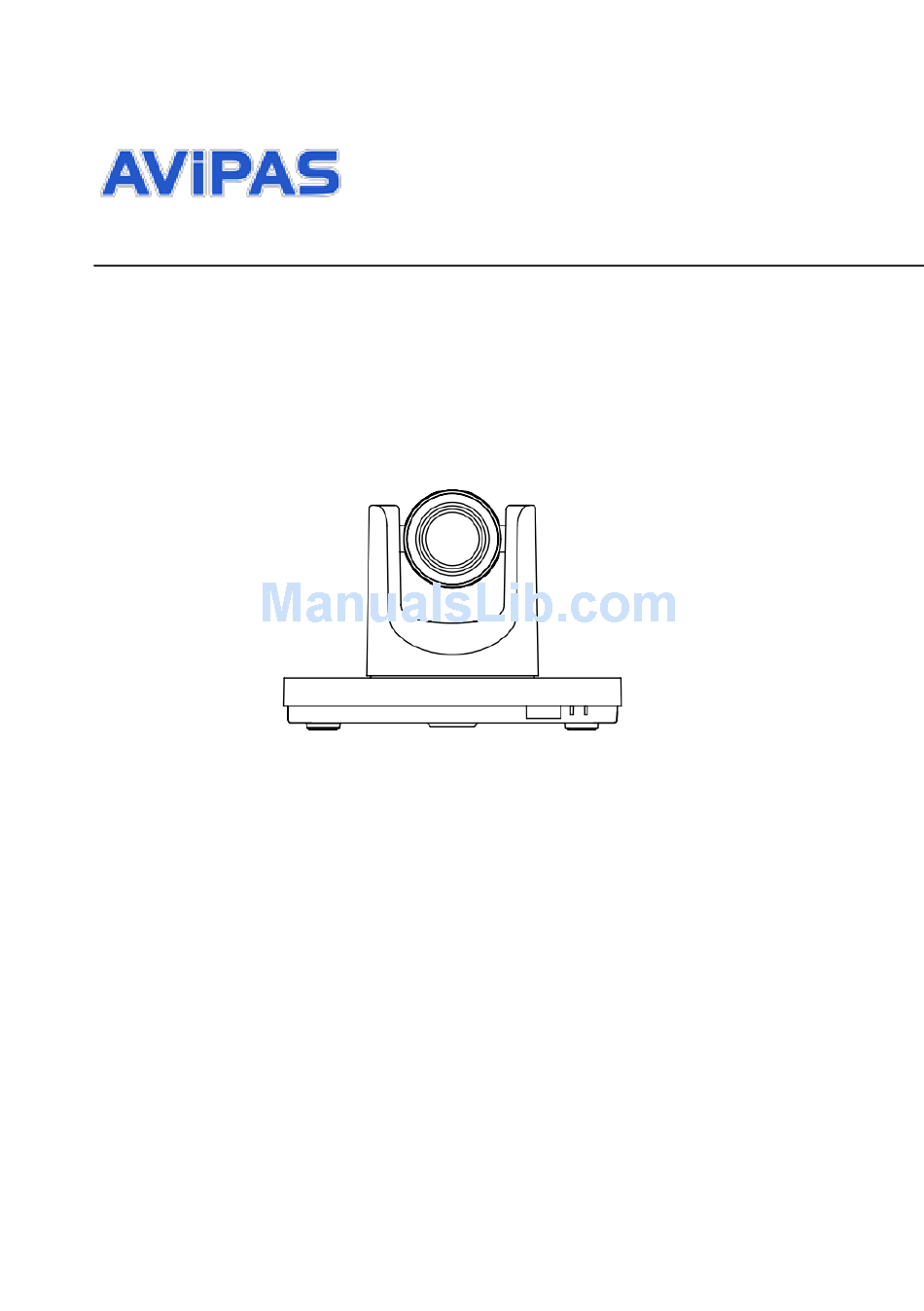

Page 1: User Manual
Model: AV-1360 HD Video Conferencing Camera User Manual V1.1 Please Read this User Manual throughout before using. www.avipas.com... - Page 2 Preface Thanks for using this HD Video Conferencing Camera. This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: ...
- Page 3 This Limited Warranty covers any defects in material under normal use during the Warranty Period. During the Warranty Period, AVIPAS Inc. will repair or replace, at no charge and products that proves defective because of improper material, under normal use and maintenance.
- Page 4 Copyright Notice All contents of this manual, whose copyright belongs to AVIPAS Inc. Cannot be cloned, copied or translated without the permission of the company. Product specifications and information which were referred to in this document are for reference only, and the content will be updated at any time without prior notice.
-
Page 5: Table Of Contents
Contents Note ................................. 5 Supplied Accessories ..........................5 Quick Start ............................... 6 Features ..............................8 Product Specification ..........................9 Main Unit .............................. 11 Size ................................ 12 IR Remote Controller Explanation......................13 RS-232 Interface ............................ 15 VISCA Network Configuration ......................16 Serial Communication Control ...................... -
Page 6: Note
Note Electric Safety Installation and operation must accord with electric safety standard. Caution to transport Avoid stress, vibration and soakage in transport, storage and installation. Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows. -
Page 7: Quick Start
Quick Start Step1. Please check connections are correct before starting Step2. Setting of the bottom switches Set both of the switch1 and switch2 to ‘OFF’. That is ‘Normal Working Mode’. SW-1 SW-2 Modes Normal Working Mode Step3. Setting of the system select switch The option of video format:... - Page 8 VIDEO SYSTEM 1080p60 720p30 1080p50 720p25 1080i60 1080i50 720p60 720p50 1080p30 1080p25 CAUTION: a. After changing the switch, you need to restart the camera to take effect. b. 720 p30 and 720 p25 only under the HDMI output. Step4. Press the Switch ON/OFF button on the rear of the camera, the power lamp light. Step5.
-
Page 9: Features
Features H.265 Support The first H.265 encoding support conference video camera in the world, enabling full HD 1080p/60 video stream by ultra-low bandwidth. 1080P Full HD Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image. -
Page 10: Product Specification
Product Specification Model AV-1360 Name HD Video Conferencing Camera Camera HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, Video System 720p/50,720p30,720p25, 720p/120 ((supported by S Model only), 640x480p/240 (supported by S Model only, optional) Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M... - Page 11 Number of Preset Preset Accuracy 0.1° IPC Features Video coding standard H.265/H.264/MJEPG Video Stream First stream, Second stream First stream resolution 1920x1080, 1280x720, 1024x576,960x540,640x360 Second stream resolution 720x576, 720x480, 320x240 Video Bit Rate 128Kbps ~ 8192Kbps Bit Rate Type Variable rate, Fixed rate 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps, 720p120: 120fps (supported by S Frame Rate Model only), 640x480p240: 240fps(supported by S Model only, optional)
-
Page 12: Main Unit
Current Consumption 1.0A (Max) Operating Temperature -10° C ~ 40° C (14° F ~ 104° F) Storage Temperature -40° C ~ 60° C (-40° F ~ 140° F) Power Consumption 12W (Max) MTBF >30000h Size 240mm x 144mm x 160mm Net Weight 1.65Kg (3.6lb) Main Unit... -
Page 13: Size
Size... -
Page 14: Ir Remote Controller Explanation
IR Remote Controller Explanation 1. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption in standby mode is approximately half of the normal mode) 2. Position Buttons To set preset or call preset 3. - Page 15 the backlight compensation.(NOTE: Effective 9. Focus Buttons Used for focus adjustment. only in auto exposure mode) Press [AUTO] adjust the focuses on the center of Note: If a light behind the subject, the subject will the object automatically. To adjust the focus become dark.
-
Page 16: Rs-232 Interface
RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.NC 8.NC 8.NC... -
Page 17: Visca Network Configuration
VISCA Network Configuration... -
Page 18: Serial Communication Control
Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface. RS232 Communication Control: The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s. Start bit: 1 bit. -
Page 19: Menu Setting
Menu Setting EXPOSURE 1. MENU Mode Auto Press [MENU] button to display the main ExpCompMode menu on the normal screen, using arrow button to move the cursor to the item to be set. Press the ExpComp [HOME] button to enter the corresponding Backlight sub-menu. - Page 20 Anti-Flicker Flicker: Anti-flicker. Optional items: Auto, 3000K/Indoor, 4000K,5000K/ items: Off, 50Hz, 60Hz (Effective only in Auto, Outdoor,6500K-1,6500K-2,6500K-3,One Push, Bright mode) Manual Iris: Aperture value. Optional items: F1.8, RG: Red gain. Optional items: 0~255 （Effective only in Manual mode） F2.0,F2.4,F2.8,F3.4,F4.0,F4.8,F5.6,F6.8,F8.0,F9.6 ,F11.0,Close （ Effective only in Manual, AAE BG: Blue gain.
- Page 21 LDC: Optional items: On, Off. IMAGE Note: Luminance 1080p60 and 1080p50 not support the lens Contrast distortion. Sharpness Flip-H 5. P/T/Z Flip-V B&W-Mode P/T/Z Gamma Default SpeedByZoom Style Clarity AF-Zone Center AF-Sense High Select Item L/R Set Image Freeze Change Value [Menu] Back Fast Zoom Luminance: Brightness adjustment.
- Page 22 6. NOISE REDUCTION SETUP Move the cursor to the Noise Reduction item Language in the main menu and press [home] button, NOISE DVI Mode REDUCTION menu appears, as shown in the following figure. Protocol VISCA V_Address NOISE REDUCTION V_AddrFix NR2D-Level Net Mode Serial NR3D-Level...
- Page 23 Net Mode: Set the serial port control networking, Optional items: Serial, Paral Baudrate: Serial port baud rate. Optional items: 2400, 4800, 9600 8. RESTORE DEFAULT Move the cursor to the Restore Default item in the main menu and press [home] button, RESTORE DEFAULT menu appears, as shown in the following figure.
-
Page 24: Network Function
Network Function Method 1: press * and # and 4 on remote controller one by one, the camera IP address will 1 Operating Environment Operating System: Windows 2000/2003/XP/ be shown on screen. vista/7/8 Method 2: connect camera to PC with ethernet cable, use “upgrade_En.exe”... - Page 25 NOTE! NOTE！ IP camera default IP address"192.168.100. If user first time use this camera by internet 88", user "admin", password "admin". (only for new user), must install a player software (VLC). Please webside 4.2 Visit/Access IP Camera Input http://192.168.100.88 to IE ( better http://www.videolan.org/vlc,download and Install with IE web browser, others will cause little...
- Page 26 Input URL address: rtsp://ip: port number/1 (First stream); 5.2 Dynamic DNS visit camera Set domain name to camera, setup the rtsp://ip: port number/2 (Second stream). parameter, then dynamic DNS can access camera. NOTE！ Access link: http://hostname :port number For example, setup host computer...
- Page 27 image left, right, home oblique button as above Parameter setup: with function buttons 2) Rate: Vertical speed can be chosen as A. Video viewing window 1 ~ 24, horizontal direction at the rate of 1 ~ 20. Video viewing window must be same as 3) select corresponding speed and click video resolution, the bigger the resolution is, the direction button to realize PTZ speed up or speed...
- Page 28 Support baseline, mainprofile, highprofile C. Language selection three formats. 4) Encode Protocol Chinese/English/Russian Support H.264 and H.265 and MJPEG three 6.2 Media formats. Video Setup, please click "Video" 5) Resolution First bit flow support 11920x1080, 1280x720,1024x576,960x540,640x360,Second bit flow support 720x480, 720x576, 320x240, the bigger resolution is, the clearer the image will be, more network bandwidth will be taken.
- Page 29 according to preset speed shows the corresponding numerical. Default 1. Variable bit rate: video coder will adjust the 5) Hue speed based on preset speed to gain the best image Hue 0~14, slider control, on the right shows quality. the corresponding numerical. Default 7. 10) Fluctuate level 6) Flip &...
- Page 30 to the login page, press "cancel" button to cancel 6) Input VolR The volume of the right channel password change. 6.6 Network Setting, please click “Network” 7) ADTS Options Optional items:On, Off 8) Button Press "apply" button to save parameters, press "cancel"...
- Page 31 Support PTZ protocol, default port: 5678. 3) Control Protocol Setting Setting camera control communication protocol, include Visca address, Pelco-D address, Pelco-P address. 4) RTMP Setting Note: Setting the camera stream, can set up two Software version may not be the latest version stream, in the two stream selection control code of the current, please release version shall prevail.
-
Page 32: Maintenance And Troubleshooting
Maintenance and Troubleshooting Camera Maintains If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet. Use soft cloth or tissue to clean the camera cover. ... - Page 33 User first time use this camera by internet (only for new user), must install a player software (VLC). Please go to VLC webside http://www.videolan.org/vlc,download and Install VLC (player software). After installation, login again, will show image, the video image is displayed. ...
