Page 1: User Manual

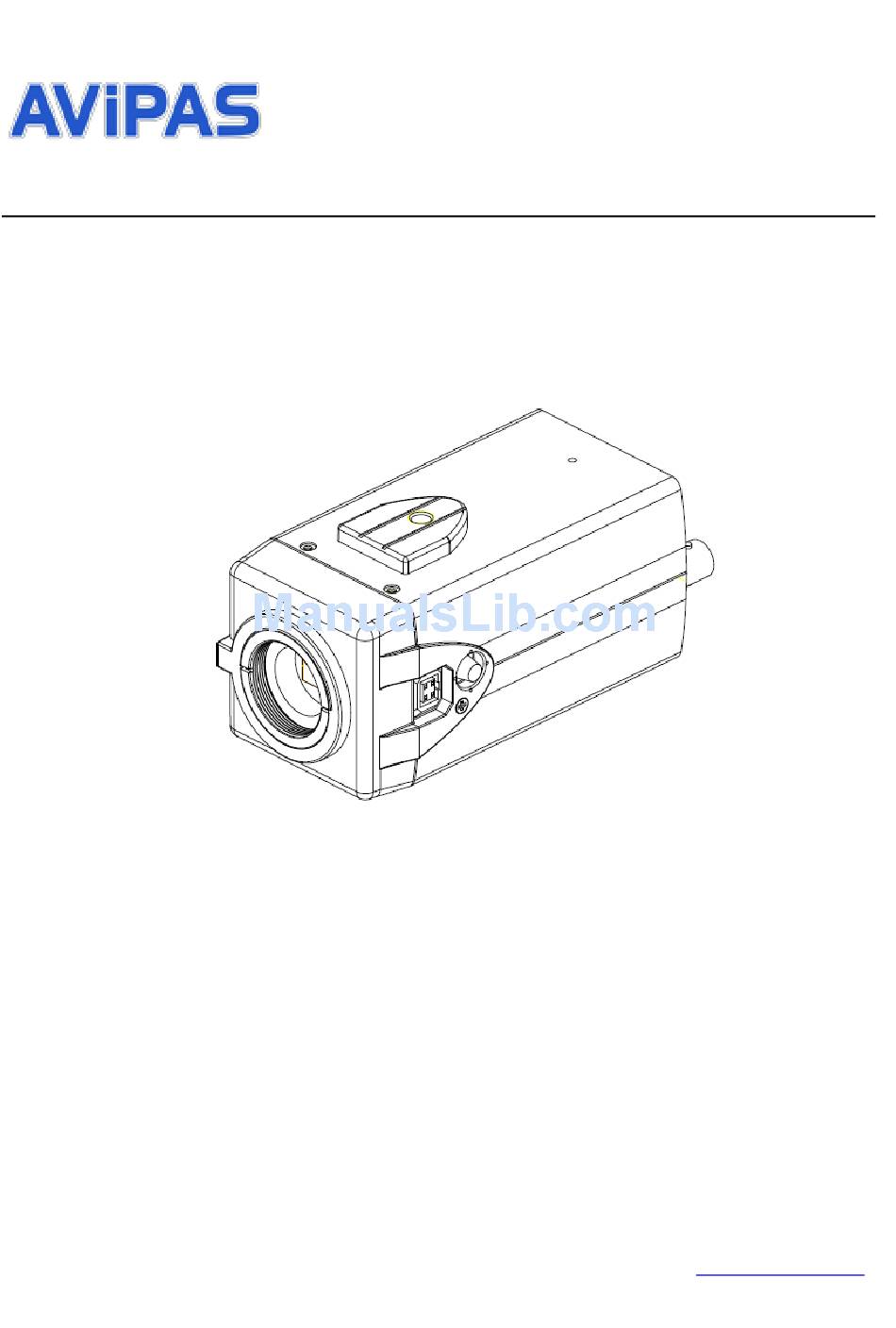

Model: AV-1160 H.264 HD Color Box Camera User Manual V1.1 Please Read this User Manual throughout before using www.avipas.com... - Page 2 HD Color Box Camera User Manual Attentions • Electric Safety Installation and operation must be in accord with electric safety standard. • Caution to transport Avoid stress, vibration or soakage during transport, storage and installation. • Polarity of power supply The power supply of the product is ±12V, the max electrical current is 2A.
-
Page 3: Table Of Contents
HD Color Box Camera User Manual Content 1. FAST INSTALLATION ............................ - 3 - ............................- 3 - AMERA NTERFACE ................................ - 3 - OWER 1.3 V ................................ - 4 - IDEO UTPUT 1.4 B .............................. - 4 - RACKET OUNTING 2. -
Page 4: Fast Installation
HD Color Box Camera User Manual 1. FAST INSTALLATION 1.1 Camera Interface Figure 1.1 AV-1160 1. RESET 2. RS485 and alarm interface 3. DC12V power supply socket 4. Power indicator 5. 3G-SDI interface 6. Network interface 7. Audio in interface 8. -
Page 5: Video Output
HD Color Box Camera User Manual 1.3 Video Output AV-1160 has two video output options: LAN and 3G-SDI. • Video output via LAN: Ethernet cable connection: port No.6 in Figure 1.1. Webpage Login: open your browser and enter 192.168.5.163 in the address bar (factory default); press Enter to enter the login page;... -
Page 6: Product Overview
HD Color Box Camera User Manual 2. Product overview 2.1 Product introduction 2.1.1 Dimensions 2.1.2 Accessories When you unpack, check if all the supplied accessories are included: Power adapter 1pcs User manual 1pcs Accessory Warranty card 1pcs - 5 -... -
Page 7: Main Features
2.2 Main Features 2.2.1 Camera performance AV-1160 box camera has a refined design, and offers multiple functions, high performance and various interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition. -
Page 8: Interface Illustrations
12V/1A power supply, user manual, warranty card Optional Accessory Installation Bracket 2.4 Interface Illustrations 2.4.1 External Interface 1) External interface of AV-1160: RS485 interface, alarm input output, audio input interface, 3G-SDI output ,LAN, DC12V power interface, auto iris interface. - 7 -... -
Page 9: Rs-485 Interface
HD Color Box Camera User Manual 2.4.2 RS-485 interface RS-485 interface specifications are shown as below: - 8 -... -
Page 10: Application Instructions
HD Color Box Camera User Manual 3. Application Instructions 3.1 Video Output 3.1.1 Power-On Initial Configuration Connecting the DC12V power cable to the camera, wait for the power indicator light to be on. 3.1.2 Video output Connect the video output cable: the user select the output mode accordingly. See Figure 1.4.1 for reference (output interface introduction). - Page 11 HD Color Box Camera User Manual [← →] Change value: enter the submenu to modify parameters [MENU] Back: press [MENU] to return [Home] OK: press [Home] to confirm 3.2.2 Exposure Move the pointer to 【Exposure】 in the Main Menu, click the【HOME】to enter the 【Exposure sub menu】 as shown below.
- Page 12 HD Color Box Camera User Manual COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto Saturation AWB Sensitivity High Color style Default Color temp Middle [ ↑ ↓ ]Select [ ← → ]Change Value [Menu]Back 3.2.4 IMAGE Move the pointer to the 【IMAGE】 in the Menu, click【HOME】and enter the 【IMAGE sub menu】as shown below.
- Page 13 HD Color Box Camera User Manual NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D Auto NR-3D Dynamic Hot Pixel [← →]Change Value [↑↓]Select [Menu]Back 2D NOISE REDUCTION: Auto/close/1~7 3D NOISE REDUCTION: Close/1~8 Dynamic Hot Pixel: Close/1~5 3.2.6 Video Format Move the pointer to 【Video Format】 in the Main Menu, click 【 HOME】 and enter the 【Video Format】 as shown below.
- Page 14 HD Color Box Camera User Manual RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? [← →]Change [↑↓]Select Value Restore default: YES/NO. - 13 -...
-
Page 15: Network Connection
HD Color Box Camera User Manual 4. Network Connection 4.1 Connecting Mode Direct connection: connect the camera and computer via Ethernet cable. Internet connection: connect the camera to Internet via Router or Switch so that the user can log into the device using browser. -
Page 16: Ie Log In
HD Color Box Camera User Manual 4.2 IE Log In 4.2.1 Web client 1) Web client Log In Input the IP address of the device 192.168.5.163 in the address filed of the web browser, and click Enter to enter the Web Client Login page as shown below in the picture. -
Page 17: Preview
HD Color Box Camera User Manual 4.2.2 Preview After successfully logging into the management interface, video preview interface will show. The user can control PTZ, zoom, focus, video capture, sound, focus, full screen, set, run, delete the preset positions and other operations. 1) Login as administrator Factory default user name/password: admin. -
Page 18: Video Configuration
HD Color Box Camera User Manual Include video encoding, video parameters, character-overlapping, character size, video Video configure output setting etc. Network configure Include basic parameters, Ethernet, DNS, wireless network setting etc. Include equipment property, system time, user management, version update, Reset, System configure Reboot device settings etc. - Page 19 HD Color Box Camera User Manual Focus mode: set the focus mode (default: auto, other option: manual). Focus range: set the focus range (default: middle, other options: upper and lower) Focus sensitivity: set the focus sensitivity (default: low, other options: high, medium) Exposure: exposure mode, exposure compensation, back light compensation, anti-flicker, gain limit, wide dynamic, shutter speed, aperture value and brightness can be set.
-
Page 20: Network Configuration
HD Color Box Camera User Manual right" buttons to move to the corresponding character position. Title Content: set title content (default: CAMERA1). Time Content: set time content (default: 1970/01/10 05:36:00) Click the "Save" button, a message will show: "saved successfully". The changes will take effect. 5)Character Size Main stream character size: set the character size of the main stream display. -
Page 21: System Configuration
HD Color Box Camera User Manual Administrative regions: Users can add their own. Alarm Zone: Users can add their own. Equipment installation address: Users can add their own. Local SIP Port: 5060 Range 0-65535 GB28181 Server Address: IP address of the computer. Server SIP Port: 5060 Range 0-65535 Server ID: 34020000002000000001 Click the "Save"... -
Page 22: Logout
HD Color Box Camera User Manual 4.2.8 Logout Click "Logout" and then "Confirmation" in the menu. Choose “Yes” to exit the current page and return to the user login interface. - 21 -... -
Page 23: Camera Maintenance And Troubleshooting
HD Color Box Camera User Manual 5. Camera Maintenance and Troubleshooting 5.1 Camera Maintenance 1. If the camera will be idle for a long time, please turn off the power switch and disconnect AC power cord from outlet. 2. Use soft cloth or tissue to clean the camera (lens cleaning not recommended). 3. - Page 24 HD Color Box Camera User Manual 7) Web Pages Cannot Log In a. check whether the camera is displaying normally. b. check whether the network cable is connected properly (Ethernet port yellow light flashing indicates normal network cable connection). c. check whether the proper segment is added to the computer, and is consistent with the IP address of the camera. d.
- Page 25 This Limited Warranty does not cover problems including but not limited to: improper handling, malfunction or damage not resulting from defects in material. To receive warranty service, please contact AVIPAS Inc. first. We will decide whether a repair or replacement is needed and will advise you of the cost of such repair or replacement.
- Page 26 HD Color Box Camera User Manual VER: 2017-05-08 (EN) Manufacturer: Distributed by: AViPAS Inc. SWIT Electronics USA, LLC www.avipas.com www.swit.us 4300 Stevens Creek Blvd. Suite 230 3350 Scott Blvd. 61-02 San Jose, CA 95129 Santa Clara, CA 95054 (408) 983-0866...
