MODENA
Hub/Hub+
Installation & Operation Guide
PRODUCT DESCRIPTION

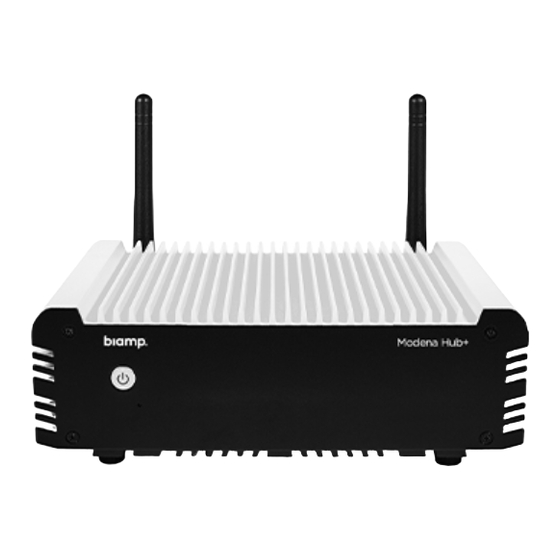

Modena Hub is a wireless presentation hub. Ideal for BYOD and BYOC
spaces, Hub allows participants to connect to meeting room AV equipment and
USB accessories wirelessly and enables any participant to wirelessly receive
AV streams during a video conferencing session.
The Hub supports most UC software and hardware devices, while enabling
the user to wirelessly share content with other meeting participants. Hub also
connects to AV peripherals via USB and HDMI, and can support multiple USB
devices via a standard USB hub or by connecting a Devio SCR-20 or SCR-25.
The information provided by this manual relates to physical connections and
device setup. For device specifications see the Network Administrator's Guide.
A: 9300 S.W. Gemini Drive Beaverton, OR 97008 USA
SETUP AND USE
User devices must be running on Windows, Mac OS X, iOS or Android
operating systems with the Hub's custom drivers and user software installed.
• Coordinate with local IT administrators before adding Hub or any other
device to a corporate network.
• Hub+ should not be placed near potential WiFi obstacles (walls, metallic
surfaces, other radio equipment or signals etc.).
• Install the device horizontally with the front panel facing up for optimal
heat dissipation.
• Keep the Hub away from other devices with a strong electromagnetic
reference such as cordless phones and microwaves.
• Do not exceed the maximum ambient operating temperature of 32-104° F
(0-40° C). Be aware of conditions in an enclosed rack that may cause the
temperature to exceed ambient room conditions.
