Modena Hub initial setup

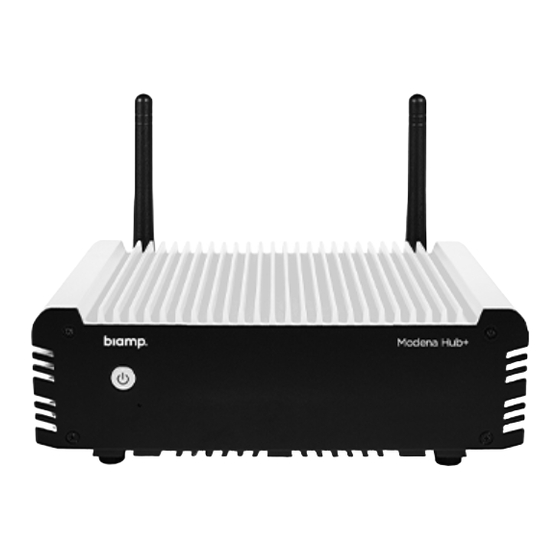

This article provides an overview of what items are included in the packaging box for Modena Hub/Hub+, as well as
information on how to correctly assemble the system and important setup recommendations.
Included in the Modena box
The Modena Hub/Hub+ packaging box contains the following items:
• Modena Hub base unit
• AC/DC adapter
◦ Input voltage range: 100-240 VAC
◦ Output: 12V, 5A, 60W
◦ Only the included AC/DC adapter should be used with Modena.
• Power cord
◦ The precise model will be country-specific to ensure compatibility with local AC electrical sockets.
• WiFi antennas
◦ These are included with the Modena Hub+ only.
◦ Compatible with both 2.4Ghz and 5Ghz WiFi bands.
◦ 2.0dB gain, 50-ohm impedance.
◦ Only the included antennas should be used with Modena.
• L-shape mounting kit
◦ This can be used to secure the base unit to walls, tables, rack cabinets, etc.
• VESA mounting kit
◦ This can be used to secure the base unit to displays or other devices that follow the VESA mounting standard.
• Screws
• Quick Start Guide
• Specifications, Safety and Conformity sheet
