Netgear NMS-NG10GPX-AVB with Qt X Quick start guide

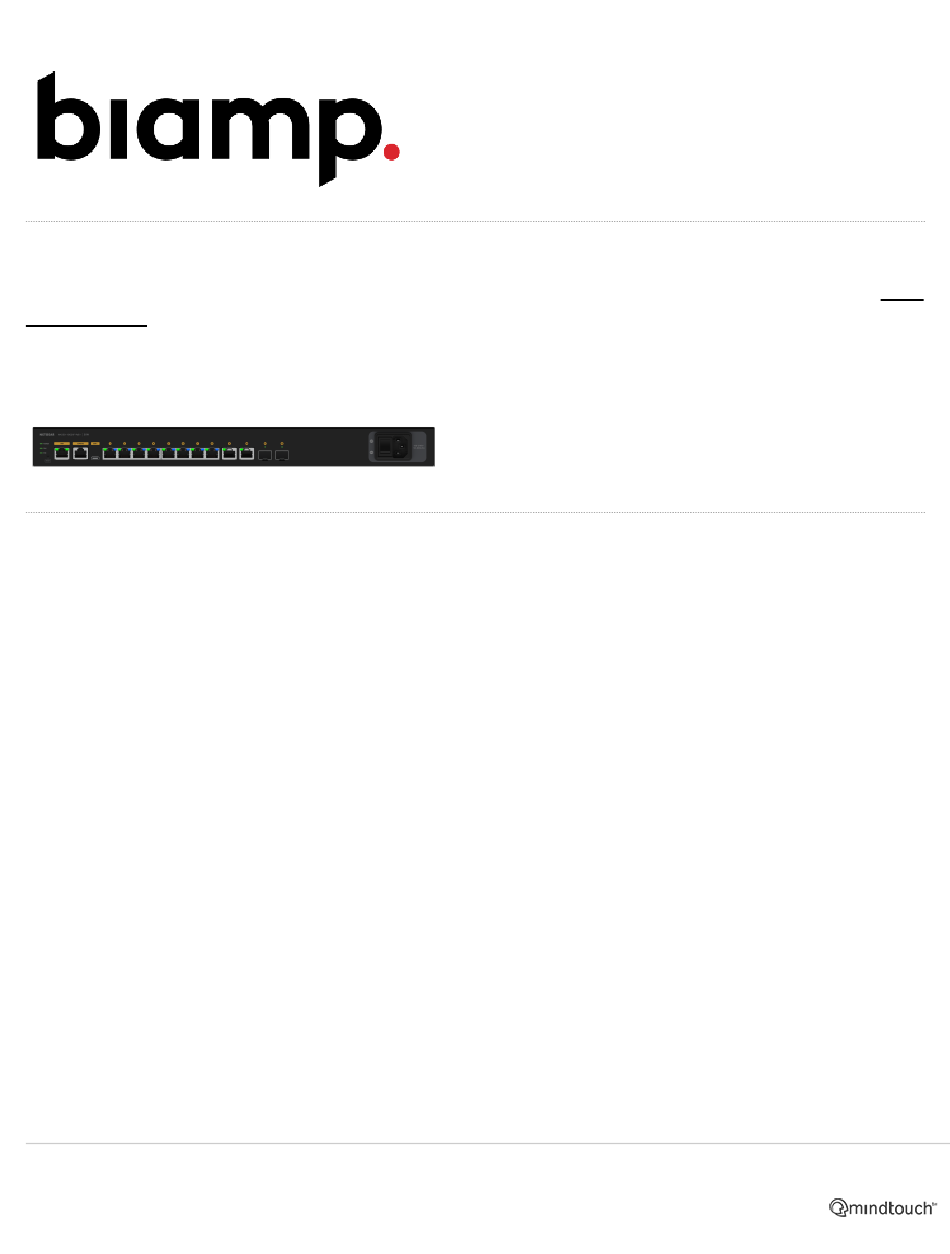

This article provides an overview of the Netgear M4250-10G2XF-PoE+ switch as resold under Biamp part number NMS-
NG10GPX-AVB. The switch is configured with a default file allowing out-of-box functionality for Qt X systems with the
ability to scale up to a 6-switch limit using daisy chain or bus topologies.
Switch Overview
A default AVB configuration is loaded on the switches that ship from Biamp along with an active AVB license.
This default enables AVB on all ports and will only assign ports to default AVB VLAN 2 if an AVB device is connected.
Testing has shown in a single switch setup for Dante traffic, no additional steps are needed, and if a non-AVB device is
connected, it will not join the default AVB VLAN.
PoE+ is available on ports 1 - 8, providing 240W PoE+ power for a full configuration of 8 Qt X 800s (each at 30W max).
If additional Dante-specific settings are needed, the profile may be changed to Audio Dante via the switch's web UI.
