Get Started - Biamp MODENA Hub Installation & Operation Manual

GET STARTED

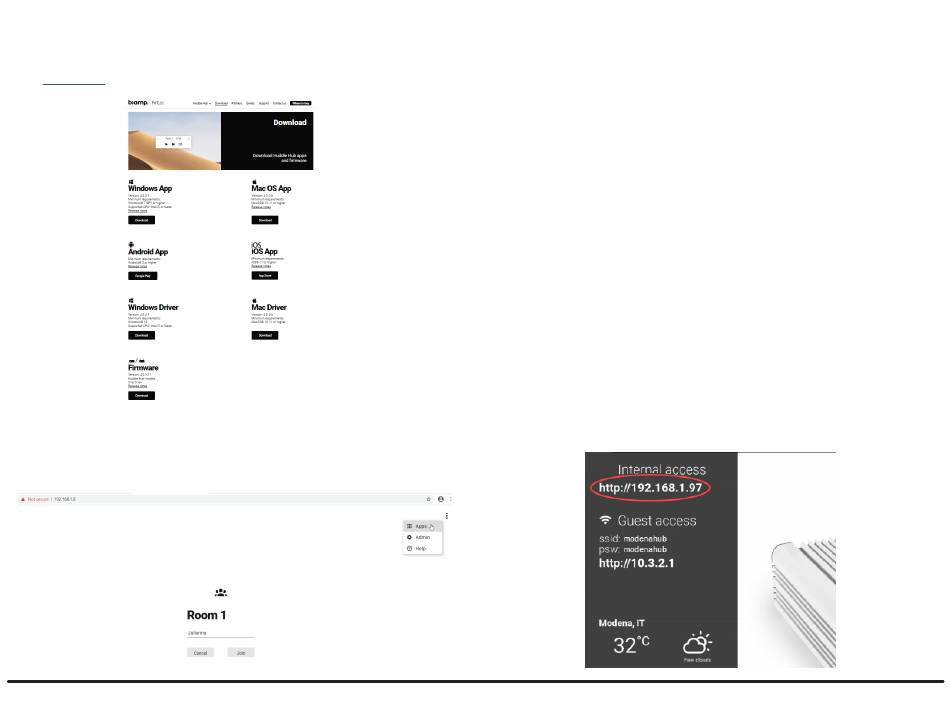

Download Apps and Drivers
Go to downloads to access and choose the appropriate App and Driver.
Apps and Drivers may also be downloaded through the connected Hub. Click
on the three dots at the upper-right screen and choose Apps from the drop
down (must have an IP address for this function). See "Connect Hub/Web
Browser Access" for more information.
Modena Hub/Hub+
Connect Hub/Web Browser Access
1. Connect the power source to the Hub and an outlet.
2. Use an HDMI cable to connect the Hub to a monitor.
3. Connect the Hub to the server/router with an Ethernet cable.
4. Once the Hub is powered up a splash screen appears on the monitor.
Once the power cord is connected, the Hub automatically powers on and the
LED power indicator on the front panel turns green. The first time it is powered
on, it automatically begins the firmware installation. This may take several
minutes to complete.
Each time the Hub is powered on after the initial firmware installation, connects
to Biamp's software/firmware repository to check for updates. The device
automoatically installs the most recent version found.
Find the IP address of a Hub device
An IP address is required to download the Hub apps from the device or to
configure it with the web console. When the Hub is connected to the company
LAN, the IP address is dynamically assigned by the DHCP server or statically
assigned during configuration.
When connected to a display or projector, and no presentation is in progress,
the IP address appears on the welcome screen. Contact the Network
Administator if the suggested methods are not possible.
Installation and Operation Guide page 3
