- Page 1 Huddle Hub Configuration Guide Models: One, One+ Product version 4.0 - Manual version 1...
- Page 2 Huddle Room Technology Srl Via Ruggero Grieco n.1/C – 41011 Campogalliano (MO) Italy www.hrt.website info@hrt.email Copyright © 2020 Biamp - HRT. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Introduction ............................. 3 Huddle Hub ................................3 Documentation ..............................4 Understanding Huddle Hub ......................5 Rooms, Sessions and Roles ..........................TV, Touch Screen, Wireless Webcam ......................Reaching a Room ..............................Finding the IP address of a HHO unit ......................Capabilities and Performances ........................ - Page 4 Restore and Reset procedures ........................2 Default values ..............................2 Index ............................... 30 Huddle Hub Configuration Guide Page 2...
-
Page 5: Introduction

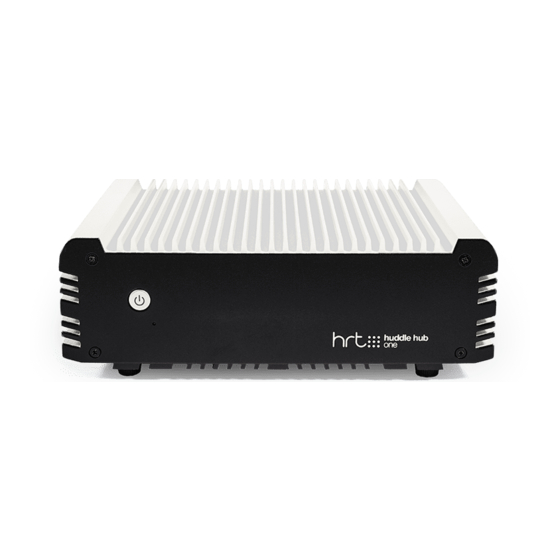

1 Introduction 1.1 Huddle Hub Huddle Hub™ product family is the answer to the needs of modern teamwork, which is increasingly based on content presentation and video-conference. Thanks to Huddle Hub, these activities can be performed everywhere in your organization, in traditional meeting or huddle rooms, but also in offices, open-space areas, or even lounges. -
Page 6: Documentation
1.2 Documentation HRT provides a thorough and exhaustive documentation, consisting of the following manuals: Quick Start Guide : a very short guide that contains the essential steps to start using HHO. Available in · the box of the product and in the support section of HRT website (www.hrt.website). Specification, Safety and Conformity : describes all the technical specifications, the safety ·... -
Page 7: Understanding Huddle Hub
2 Understanding Huddle Hub 2.1 Rooms, Sessions and Roles Rooms and Sessions session For our purposes, a is the sitting together of a group of people, with the intent of either making or assisting to a presentation, or to perform a video-conference. A session happens in a room which usually corresponds to a physical place where the HHO unit is plugged to peripherals (TV and webcam) and the participants meet. -
Page 8: Tv, Touch Screen, Wireless Webcam
2.2 TV, Touch Screen, Wireless Webcam TV Sets and Projectors In a typical scenario, your HHO unit will be installed in a meeting room, huddle room or another shared connected to a large TV set with an HDMI cable space, and will be . -
Page 9: Finding The Ip Address Of A Hho Unit
HHO+ only Embedded Access Point connection ( You can directly connect to your HHO+ unit, provided that you are in the range of its embedded Wi-Fi access point and that it's been configured to allow such a connection. To do so, on your device select the Wi-Fi name (SSID) of the HHO+ you want to connect to. -
Page 10: Capabilities And Performances
and one for their embedded Wi-Fi network adapter. If other participants already entered that room, you can ask them to read the IP address they are · connected to ( ⁝ > Settings > Room info If none of the previous methods is possible, you have to contact your Network Administrator to get the ·... -
Page 11: Connecting To The Web Console
3 Connecting to the Web Console Web Console The tool you use to configure your HHO unit is the , accessible using any common web browser, like Chrome, Edge, Safari, Firefox and many others. From the Web Console, you can manage every parameter of your HHO. - Page 12 3. Once connected to the wireless network of HHO+, get its IP address, either attaching an HDMI display to its port (the IP address appears in the welcome screen) or using a network tool to discover which IP address it’s been assigned. The default IP address of HHO+ on its own wireless network is 10.3.2.1, but it may have been changed by a previous configuration (see also Finding the IP address of a HHO unit...
-
Page 13: Using The Web Console
4 Using the Web Console When you know the IP address of the HHO unit you want to configure, you have to type it in the address bar of your browser, and press Enter. To enter the Web Console, click the three-dots menu on the top right of the page and select the Admin item. - Page 14 Welcome screen - details for the customization of the welcome page showed when the system is idle, with no presentation running. Webcam - audio/video USB devices configuration. - settings of the connected HDMI display/projector output. Network - Ethernet and WiFi (HHO+ only) configuration. Update - update strategy settings.
-
Page 15: Configuring Huddle Hub One
5 Configuring Huddle Hub One 5.1 Huddle Hub uddle name This is the name of the device and identifies your HHO unit. To avoid confusion, please assign unique names when you have multiple HHO units connected to the same network. Name can be from 4 to 16 characters long: numbers, uppercase and lowercase letters, underscore and dash can be used;... -
Page 16: Welcome Screen
Personal room Room code When checked, a random 8-digit will be generated and associated to this room. Doing so, this room will become visible only to those clients that has the same Private room code in their configuration. It's a way to key specific rooms reserved for some users. Passcode rotection When checked, a passcode is required to join a HHO session. - Page 17 Selected URL This control appears if you chose in the first option. Enter the address of the page you want to show in the background. When the URL option is selected, the related URL page fills the page and only the Zoom optional Status bar can be added to the screen.
- Page 18 Show status bar during presentation Tick this check-box to add the status bar on the display during the presentation. The status bar recap all the information related to the room, like for example, the IP address, the room name, the number of connected devices and the passcode.
-
Page 19: Webcam
5.4 Webcam Webcam : select this mode if a webcam is plugged in to your HHO unit. It will be made available to the HHApp clients connected to the hub room, through a virtual camera driver, with no need of any cable. None : no webcam is plugged or webcam disabled. -
Page 20: Network
Turn o hen session is not runnin ff HDMI w Tick this checkbox if you want to force the HDMI display to go on sleep when there is no session running. You can configure the delay to wait for activities before going on sleep. nnotation Tick this checkbox to enable the annotation feature. -
Page 21: Wireless (Hho+ Only)
In static mode, the DNS server address must be configured. led mode HHO+ When disabled, the wired connection doesn’t work. It’s not possible to disable both the wireless ( only ) and wired interfaces. 5.6.2 Wireless Access point Station The Wi-Fi functionality of HHO+ can be configured to work in (client) mode. - Page 22 natting the clients addresses to the Ethernet interface. From the company LAN to HHO+ wireless network, the connection must be managed by route tables, forwarding the traffic to HHO+ Ethernet interface. There’s no firewall isolation between the two sub-nets, wired and wireless. Routing : the system only routes the Wi-Fi traffic to the Ethernet interface, without natting the addresses.
- Page 23 country where HHO+ is used must be selected from this list. The Wi-Fi region of your product is visible on the product label. See also Wi-Fi Regions, Channels and Frequencies uenc HHO+ is a non-concurrent dual band Wi-Fi device. It can operate at 2.4 or at 5 GHz and this parameter allows you to change the operating band.
- Page 24 Above (automatic) when the primary channel is at the end of the range, and you can manually select Below Above when the primary channel is in the middle of the range. P ser Tick this checkbox to enable the internal DHCP server of HHO+. This DHCP server automatically assign the IP address and configure the network parameters of the connected clients.
- Page 25 3. insert the password. Pass The Password field contains the keyword for the Station mode connection to the desired wireless network. The admitted password follows the industry standard 8 to 63 characters specification. Show password Tick this checkbox to make your password visible while typing. Hide SSID password in TV welcome screen Tick this checkbox to hide your password from the welcome screen in case a TV is connected.
-
Page 26: Update
hannels Network > Access point HHO+ supports auto selection of the best performing channel: by selecting Auto, ( mode parameters > Channel ) the system will choose the best option at the moment of the configuration and every time system gets switched on or rebooted. To get the most from this feature, we suggest you reboot the system periodically, or at least when changes in the Wi-Fi environment happen. -
Page 27: Advanced
Manually load the firmware - By pressing this button, a dialog appears that allow you to load a HHO firmware file. This feature is useful in case your HHO is not able to connect to the software repository to download the updated version itself. Firmware files are available at HRT website. : HHO may appear unresponsive for a few minutes after power-on or reboot. -
Page 28: System Status
In the case you want to make the HHApp clients able to reach HHO units on other networks, you can Primary designate one hub as and make the other hubs reach it, thus sharing their rooms list and the corresponding IP addresses. In this way the clients will see the list of all the rooms whose hosting hubs are connected to the primary one. -
Page 29: Appendices
6 Appendices 6.1 Wi i Regions, Channels and uencies ions HHO+ Wi-Fi adapter conforms to the IEEE 802.11 n/ac standard. Every HHO+ unit is configured at factory level for a specific Wi-Fi region, because of the different laws that regulate the radio emission in every country. Every Wi-Fi region has a list of admitted countries and the country where HHO+ is used must be selected from this list. - Page 30 3. press the Restore button and keep pressed for 5 seconds; 4. the unit will now reboot with default parameters. Restore rocedure This procedure completely wipes the current firmware and does a full firmware re-installation. The firmware version changes to the one originally installed on the unit (and it's then updated if connected to the internet).
- Page 31 Share mode: None IP: 10.3.2.1 Country: label EU: IT label NA: US label JP: JP label CN: CN label IN: IN label AE: AE Frequency: 5GHz IEEE 802.11ac: Yes Channel: Auto Channel width: Auto DHCP server: Yes DHCP range start: 2 DHCP range end: 254 Authentication: WPA2 SSID broadcasting: Yes...
- Page 32 Index - E - thernet net adapter 3 - F - Access oint mode 19 Admin pass ord 13 anced 25 orce passcode re uest to the first participant 13 Android dongle 6 uencies 27 Android TV 6 uenc Annotation 6, 17 Auditorium 25 Authentication 19 Automatic disco...
- Page 33 ogin 11 - Q - ogout 11 ogs 25 Start Guide 4 - M - ain Area 11 or updates 24 Reboot 11 anuals 4 Regions 27 ulti presentation Reset to default configuration 27 Restore 25 - N - Restore to factor firm ersion 27 Role...
- Page 34 Wired net configuration 1 Wireless camera 6 Android Wireless configuration connecting TV mode 17 access point mode 1 station mode 1 Wireless net adapter 3 Updates scheduler 24 User Guide 4 Video conference 6 er 5 Web console 9 connecting via Ethernet interface connecting via wireless interface login 11 logout 11...
