MOUNTING & INSTALLATION
The Hub is designed to be placed on a flat surface like a desk, table or credenza. The device may also be mounted to a wall or other device, like the back of a
monitor, with one of two included mounting kits. Do not install the Hub+ on the back of a monitor.

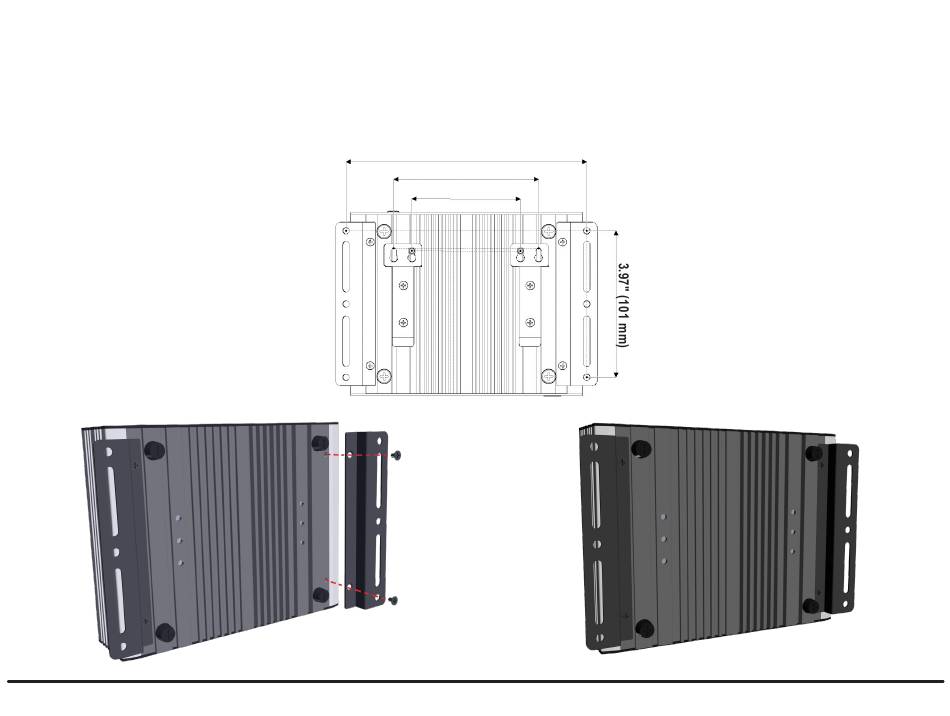

Option 1 - Z-Channel Mounting Kit
The Z-channel mounting kit may be used to secure the Hub to walls, tables, rack cabinets and more.
page 4
6.54" (166.2 mm)
3.94" (100 mm)
2.95" (75 mm)
Installation and Operation Guide
Modena Hub/Hub+
