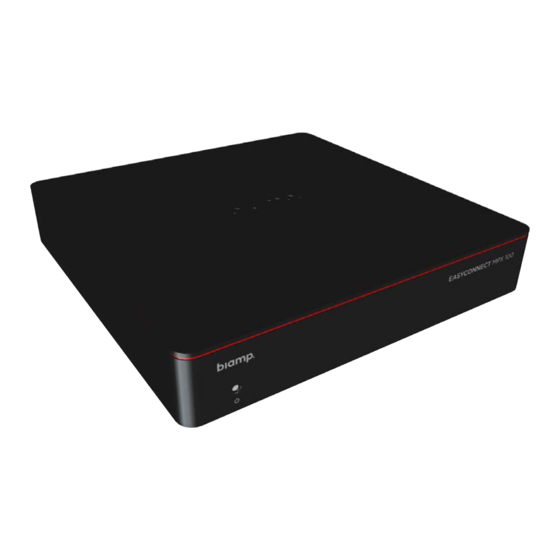

EasyConnect MPX 100 overview
The EasyConnect MPX 100 is an easy-to-use media switcher designed for conference rooms equipped with a dedicated
UC Room system, such as a Microsoft Teams Room or Zoom Room, but from which a user occasionally needs to use
an alternate UC platform.
MPX 100 installs between the UC Room host and the conference room peripherals. When a user needs to use an
alternate UC platform, they simply connect a laptop to the MPX 100 via a USB and HDMI cable pair, and it will
automatically switch away from the primary UC compute and connect the BYOM laptop to the in-room A/V peripherals.
Then, the user can launch the alternate UC meeting from their mobile device and hold the meeting as normal. As soon
as the user disconnects the USB and HDMI cable pair, the MPX 100 switches the room peripherals back to the
dedicated UC room compute.
Connectivity
The ports required for operating the system are all located in the rear part of the unit:
• Connection to the UC Compute unit (Microsoft Teams Room, Zoom Room, etc.)
◦ HDMI 2.0 in
◦ USB 3.0 Type-B
• Connection to the BYOM Laptop
◦ HDMI 2.0 in
◦ USB 3.0 Type-B
• Connection to the room A/V peripherals
◦ HDMI 2.0 out to room display
◦ USB 3.0 Type-A (3x)
◦ USB 3.0 Type-C with locking screw and 90W Power Delivery
• RJ45 Network port (Gigabit Ethernet)
• Power
