Biamp MODENA Hub Installation & Operation Manual page 2

CONNECTIONS
1
5
1. TV (HDMI)
The standard HDMI port is used as a local video output. It connects to display
monitors, touchscreens or projectors via a standard HDMI cable (not included).
2. WEBCAM (USB)
The standard USB 3.0 Type-A port connects USB Video Class (UVC) devices,
such as USB webcams and all-in-one USB devices containing cameras,
microphones and loudspeakers.
3. NETWORK
The Hub uses a standard RJ45 network port with gigabit Ethernet capability.
Connect to the LAN with Cat5e or better cables (not included). The Hub must
be connected to the Internet to download the latest software release.
page 2
3
2 6

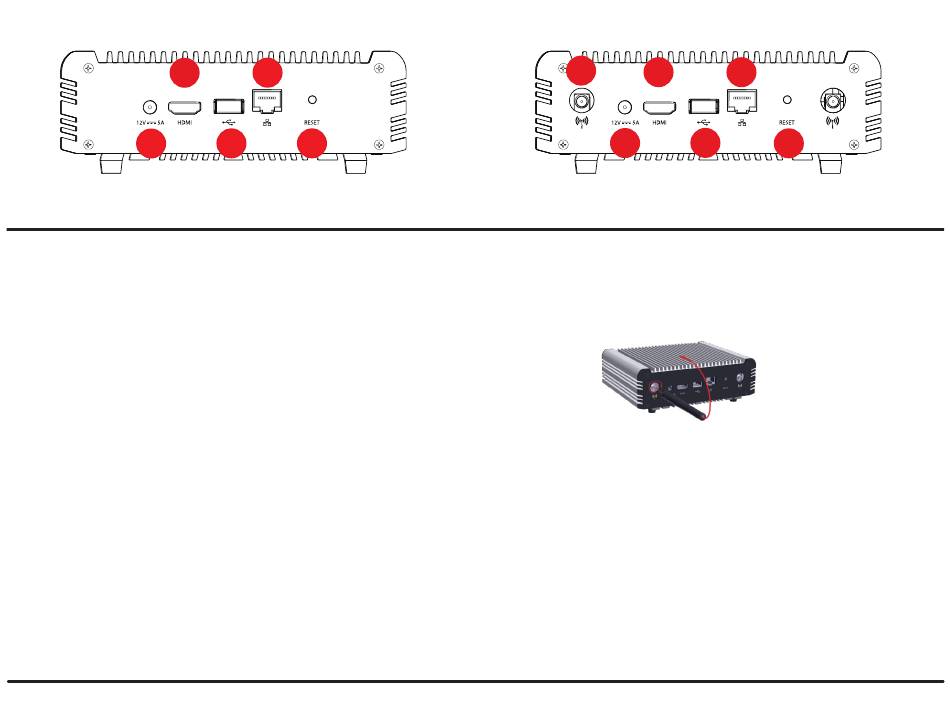

HUB Back Panel
Installation and Operation Guide
4
1
5
HUB+ Back Panel
4. ANTENNA (Hub+ Only)
The Hub+ has two antenna ports for attaching each of the provided WiFi
antennas. Connect the antennas to the antenna ports by inserting them and
gently hand-twisting clockwise to secure, then lift up to raise the antenna.
5. DCIN and Power
Connects with included power supply.
6. RESET
Reset forces the system to restore the factory default configuration. Recover
reinstalls the original factory firmware and restores the factory default
configuration.
3
2 6
Modena Hub/Hub+
