IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

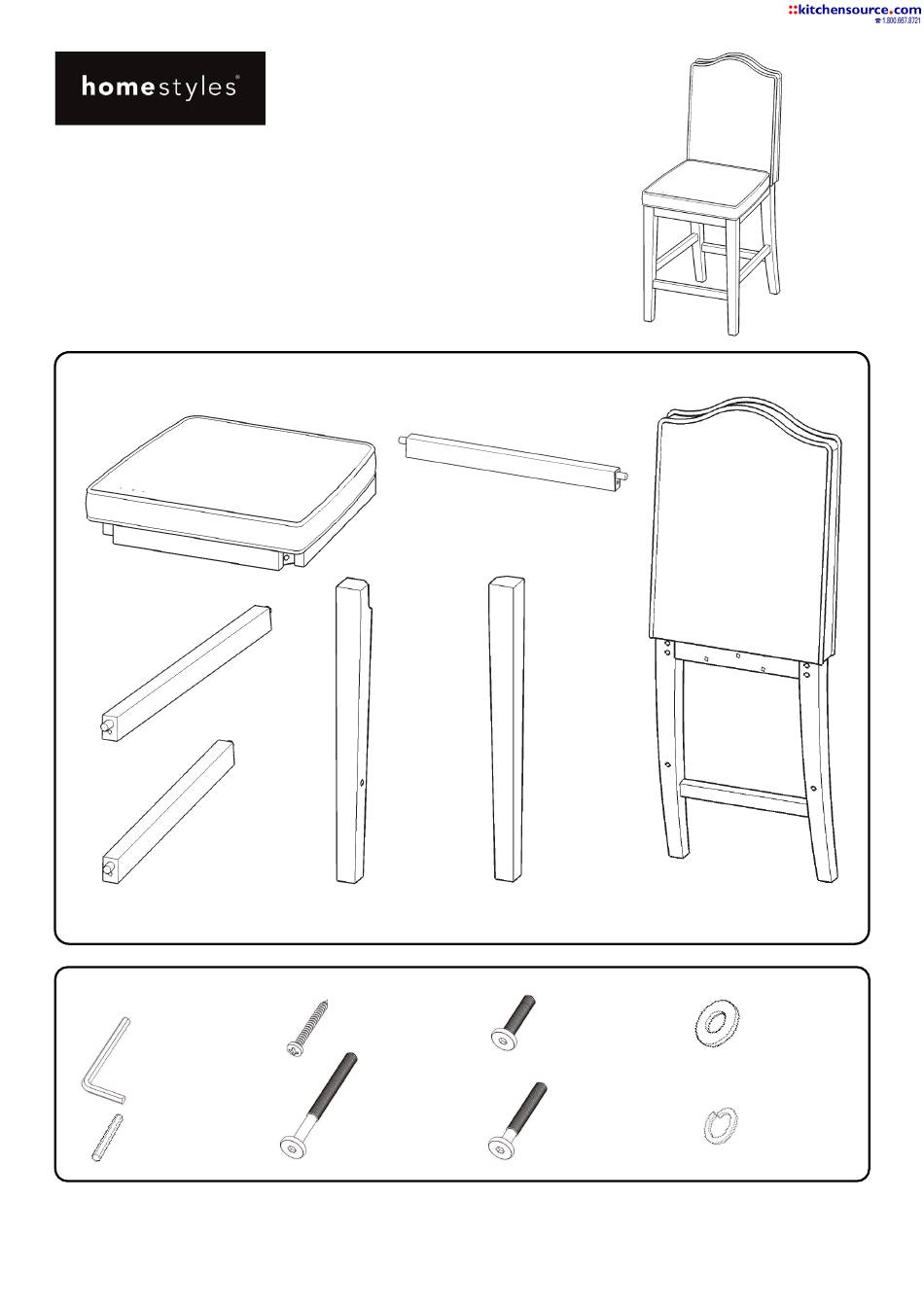

Part List
A.
Seat
1 pc.
C.
Stretcher
1 pc.
D.
Stretcher
1 pc.
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5170 89

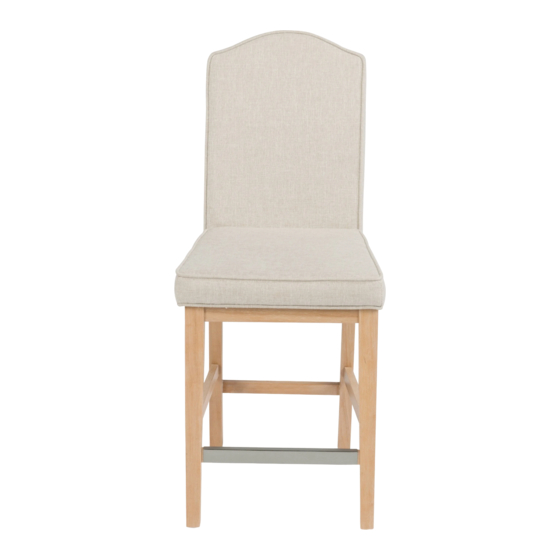

Bar Stool
B.
Stretcher
1 pc.
E.
Leg
1 pc.
M3.5x40
Wood Screw
6 pcs. (+1 extra)
M8x76
Head Cap Bolt (long)
4 pcs. (+1 extra)
F.
Leg
1 pc.
M8x40
Head Cap Bolt (short)
3 pcs. (+1 extra)
M8x50
Head Cap Bolt
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
G.
Back Frame
1 pc.
Flat Washer
11 pcs. (+1 extra)
Spring Washer
11 pcs. (+1 extra)
Advertisement
Table of Contents
Related Manuals for Homestyles 88 5170 89
Summary of Contents for Homestyles 88 5170 89
- Page 1 M8x50 Hex Wrench Head Cap Bolt (long) Head Cap Bolt Spring Washer 1 pc. 4 pcs. (+1 extra) 4 pcs. (+1 extra) 11 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/2 IMPORTANT Use a soft cloth between these parts and the floor. Do not use power tools above 8 volts to assemble. Do not tighten all the bolts until each part is properly assembled. Keep Hex Wrench in a safe place as the bolts may need to be tightened up in the future. STEP 1 Head Cap Bolt (long)
- Page 3 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com,...
