Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Carton 88 5412 181 is also needed for assembly.
Tool(s) required for assembly:
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5412 182

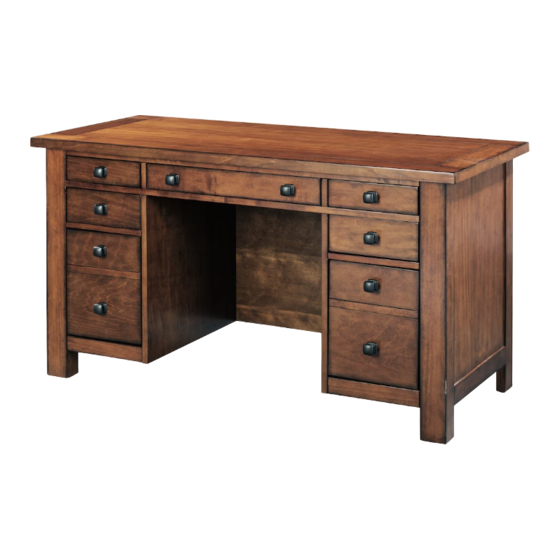

Pedestal Desk
B.
Side Panel
1 pc.
D.
Middle Panel
1 pc.
Cam Lock
M6x35
8 pcs. (+2 extra)
Head Cap Bolt
29 pcs. (+1 extra)
M3x15
Cam Lock Screw
Wood Screw
8 pcs. (+1 extra)
6 pcs. (+1 extra)
Phillips screwdriver,
C.
Side Panel
1 pc.
E.
Middle Panel
1 pc.
Flat Washer
29 pcs. (+1 extra)
Spring Washer
29 pcs. (+1 extra)
Level
888-680-7460, 877-831-0319
K.
Drawer
2 pcs.
L.
Drawer
2 pcs.
M.
Drawer
2 pcs.
Refer to the last page(s) of these
instructions for drawer assembly.
P.
Metal Strip
4 pcs.
M4x19
Machine Screw
16 pcs.
M4x25
Machine Screw (long)
4 pcs.
Knob
10 pcs.
Advertisement
Table of Contents
Related Manuals for Homestyles 88 5412 182
Summary of Contents for Homestyles 88 5412 182
- Page 1 1 pc. 8 pcs. (+1 extra) 6 pcs. (+1 extra) 29 pcs. (+1 extra) 4 pcs. Carton 88 5412 181 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/7 Head Cap Bolt STEP 3 Spring Washer Flat Washer Place Top (A) upside down on a soft cloth. Attach unit to Top (A) with Flat Washers, Spring Washers and Head Cap Bolts. Flat Washer Spring Washer Head Cap Bolt Cam Lock STEP 4 Attach Bases (I) and (J) to unit...
- Page 4 Assembly Instructions 4/7 Head Cap Bolt STEP 5 Spring Washer Cam Lock Flat Washer Attach Side Panels (B) and (C) to unit with Flat Washers, Spring Washers, Head Cap Bolts and Cam Locks. (See Figure 4) Wood Screw Figure 4 STEP 6 Attach Keyboard Front (N) to Keyboard (O) with Wood Screws.
- Page 5 Assembly Instructions 5/7 Drawer (K) STEP 1 Attach Drawer Sides (K3) and (K4) to Drawer Back (K2), then flip the locks. (See Figures 1 and 2) Lock Roller at back Figure 1 Figure 2 STEP 2 Slide Drawer Bottom (K5) into the grooves of Drawer Sides (K3) and (K4) until it meets Drawer Back (K2).
- Page 6 Assembly Instructions 6/7 Drawer (L) STEP 1 Attach Drawer Sides (L3) and (L4) to Drawer Back (L2), then flip the locks. (See Figures 1 and 2) Lock Roller at back Figure 1 Figure 2 STEP 2 Slide Drawer Bottom (K5) into the grooves of Drawer Sides L3) and (L4) until it meets Drawer Back (L2).
- Page 7 Assembly Instructions 7/7 Drawer (M) STEP 1 Attach Drawer Sides (M3) and (M4) to Drawer Back (M2), then flip the locks. (See Figures 1 and 2) Lock Figure 1 Figure 2 STEP 2 Slide Drawer Bottom (K5) into the grooves of Drawer Sides (M3) and Legal Size (M4) until it meets Drawer Back (M2).
- Page 8 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
