IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
D.
Front Rail
1 pc.
E.
Front Rail
1 pc.
I.
Base
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
For assembly also need cartons 88 5180 182, 88 5180 183.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5180 181

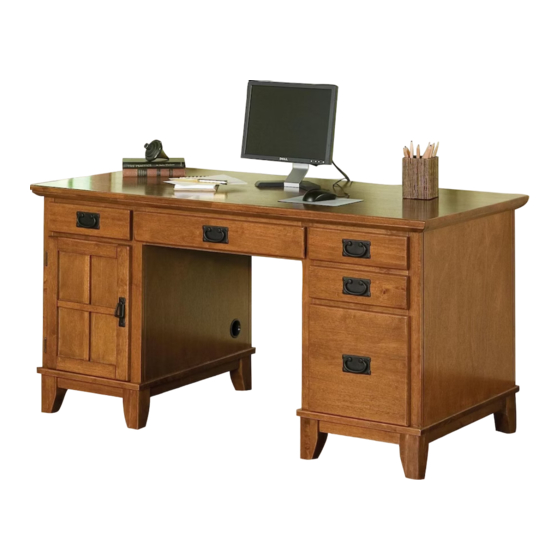

Computer Desk
F.
Side Panel
1 pc.
K.
J.
Drawer
Leg
1 pc.
2 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
M3.5x25
Wood Screw (long)
Cam Lock Screw
8 pcs. (+1 extra)
8 pcs. (+1 extra)
M3.5x13
Cam Lock
Wood Screw (short)
8 pcs. (+2 extra)
4 pcs. (+1 extra)
G.
Side Panel
1 pc.
L.
Shelf
1 pc.
Drawer
M6x30
Pull Handle
Head Cap Bolt
1 pc.
8 pcs. (+1 extra)
M4x15
Adjustable Pin
Machine Screw
4 pcs. (+2 extra)
4 pcs.
888-680-7460, 877-831-0319
Left Unit
H.
Back Panel
1 pc.
M.
Door
1 pc.
Door
Pull Handle
1 pc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 88 5180 181
Summary of Contents for Homestyles 88 5180 181
- Page 1 4 pcs. (+2 extra) 1 pc. 8 pcs. (+2 extra) 4 pcs. (+1 extra) 4 pcs. For assembly also need cartons 88 5180 182, 88 5180 183. Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Keep Hex Wrench in a safe place as the bolts may need to be tightened up in the future. Cam Lock Screw STEP 1 Insert Cam Lock Screws into pre-drilled holes of Side Panels (F) and (G).
- Page 3 Assembly Instructions 3/5 STEP 3 Attach Base (I) to unit with Head Cap Bolts. (See Figure 3) Attach Legs (J) to unit with Head Cap Bolts. Head Cap Bolt Figure 3...
- Page 4 Assembly Instructions 4/5 Drawer (K) Bottom STEP 4 Attach Drawer Front (K1) and Drawer Back (K2) to Drawer Side (K3) with Wood Screws (long). Attach Drawer Side (K4) to unit with Wood Screws (long). Roller at back STEP 5 Slide Drawer Bottom (K5) into the grooves of Drawer Sides (K3) and (K4) until it meets Drawer Front (K1).
- Page 5 Assembly Instructions 5/5 STEP 7 Turn unit to its’ upright position. Slide Drawer (K) into place. Insert Adjustable Pins into pre-drilled holes of side panels at the desired level. Slide Shelf (L) into place. Attach Door Pull Handle to Door (M) with Machine Screws. (See Figure 4) Attach Door (M) to unit by sliding the door lift hinges into the side panel lift hinges.
- Page 6 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
