88 5100 307

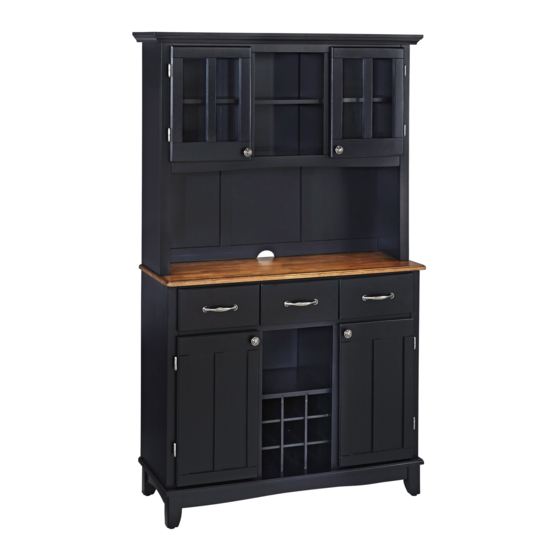

Hutch
IMPORTANT NOTE
.
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure
a completed product as it was designed.
Part List
A.
Top
1 Pc.
F.
Back Stretcher
1 Pc.
G.
Back Stretcher
1 Pc.
H.
Front Stretcher
1 Pc.
I.
Fixed Shelf
1 Pc.
J.
Shelf
1 Pc.
Hardware List
Cam Lock
18 Pcs. (+2 extra)
Cam Lock Screw
18 Pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver, Drill, 3/8" Drill Bit
Home Styles Consumer Assistance : www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
K.
Shelf
2 Pcs.
M3.5x16
Wood Screw
for Back Panel
12 Pcs. (+1 extra)
M4x13
Wood Screw
for Steel Plate Connector
8 Pcs. (+1 extra)
Hutch Unit
B.
C.
Side Panel
Side Panel
1 Pc.
1 Pc.
L.
M.
Middle Panel
Middle Panel
1 Pc.
1 Pc.
Adjustable Pin
12 Pcs. (+1 extra)
M4x25
Machine Screw
2 Pcs.
D.
E.
Back Panel
Back Upright
3 Pcs.
2 Pcs.
N.
O.
Door
Door
1 Pc.
1 Pc.
Knob
2 Pcs.
Steel Plate Connector
2 Pcs.
Advertisement
Related Manuals for Homestyles 88 5100 307
Summary of Contents for Homestyles 88 5100 307
- Page 1 Machine Screw for Steel Plate Connector Steel Plate Connector 2 Pcs. 8 Pcs. (+1 extra) 18 Pcs. (+1 extra) 2 Pcs. Tools required for assembly : Phillips screwdriver, Drill, 3/8” Drill Bit Home Styles Consumer Assistance : www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/5 IMPORTANT * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the floor. STEP 1 Cam Lock Screw Insert Cam Lock Screws into pre-drilled holes of Top (A), Side Panels (B), (C) and Fixed Shelf (I).
- Page 3 Assembly Instructions 3/5 STEP 4 Attach unit from Step 2, Front Stretcher (H) and Side Panel (B) to the unit from Step 3 with Cam Locks. Attach Side Panel (C) to the unit with Cam Locks. Cam Lock Adjustable Pin STEP 5 Cam Lock Turn the unit to its’...
- Page 4 Assembly Instructions 4/5 STEP 7 Place Hutch onto Buffet. Wood Screw for Steel Plate Connector Steel Plate Connector STEP 8 Attach Steel Plate Connectors using Wood Screws for Steel Plate Connector. (See Figure 5) Figure 5 Wood Screw for Back Panel STEP 9 Insert 12X Wood Screws for Back Panel into pre-drilled holes of Back Panel.
-
Page 5: Hardware List
Assembly Instructions 5/5 Attention! To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly! Anchor in wall Wall Screw Bracket 3/8” wall hole on wall Wood Screw Place unit at desired location. 3/8”...
