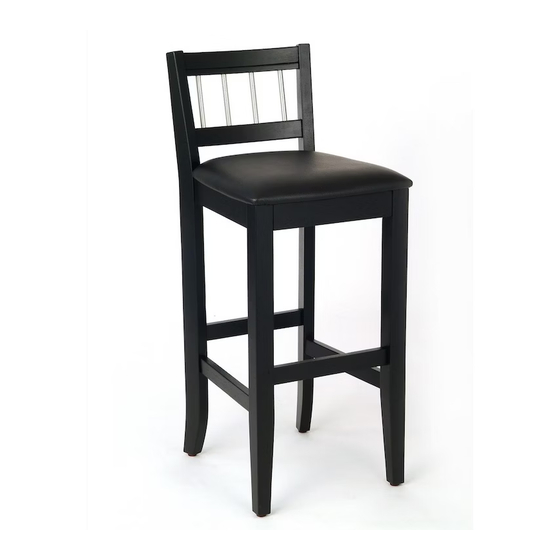

88 5120 89C
Bar Stool Set with
Decorative Copper Accents
(Set includes two Bar stools and one High Table)
Thank you for purchasing our quality products.
Please carefully check the quantity of the parts
and hardware. Please also read this assembly
instructions until you understand clearly how to
put the parts together, then start assembling
step by step.
PART LIST
A.
Seat
1 pc.
E.
Front Stretcher
1 pc.
HARDWARE LIST
Hex Wrench
1 pc.
Tools Required For Assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
B.
Back Frame
1 pc.
Head Cap Bolt
(short)
3 pcs. (+1 extra)
Head Cap Bolt
(middle)
4 pcs. (+1 extra)
servicedesk@homestyles-furniture.com
Casual Attire For Today's Home
C.
Leg
1 pc.
F.
Side Stretcher
1 pc.
Wood Screw
6 pcs.(+1 extra)
Head Cap Bolt
(long)
4 pcs.(+1 extra)
D.
Leg
1 pc.
G.
Side Stretcher
1 pc.
Spring
Washer
11 pcs.(+1 extra)
Flat
Washer
11 pcs.(+1 extra)
Advertisement
Related Manuals for Homestyles 88 5120 89C
Summary of Contents for Homestyles 88 5120 89C
- Page 1 88 5120 89C Bar Stool Set with Decorative Copper Accents (Set includes two Bar stools and one High Table) Thank you for purchasing our quality products. Please carefully check the quantity of the parts and hardware. Please also read this assembly...
- Page 2 Hex Wrench Flat 1 pc. Head Cap Bolt Head Cap Bolt Washer (long) (middle) 11 pcs.(+1 extra) 4 pcs.(+1 extra) 4 pcs. (+1 extra) Tools Required For Assembly : Phillips screwdriver Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
- Page 3 Assembly Instructions IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in the safe place as you may need to tighten up the Head Cap Bolts in the future. STEP 1 Wood Screw Attach the Leg (C) to Seat (A) with Head Cap Bolts...
