Personal FM System Instructions
Basic System (PFM SYS A) / Educational System (PFM SYS B)

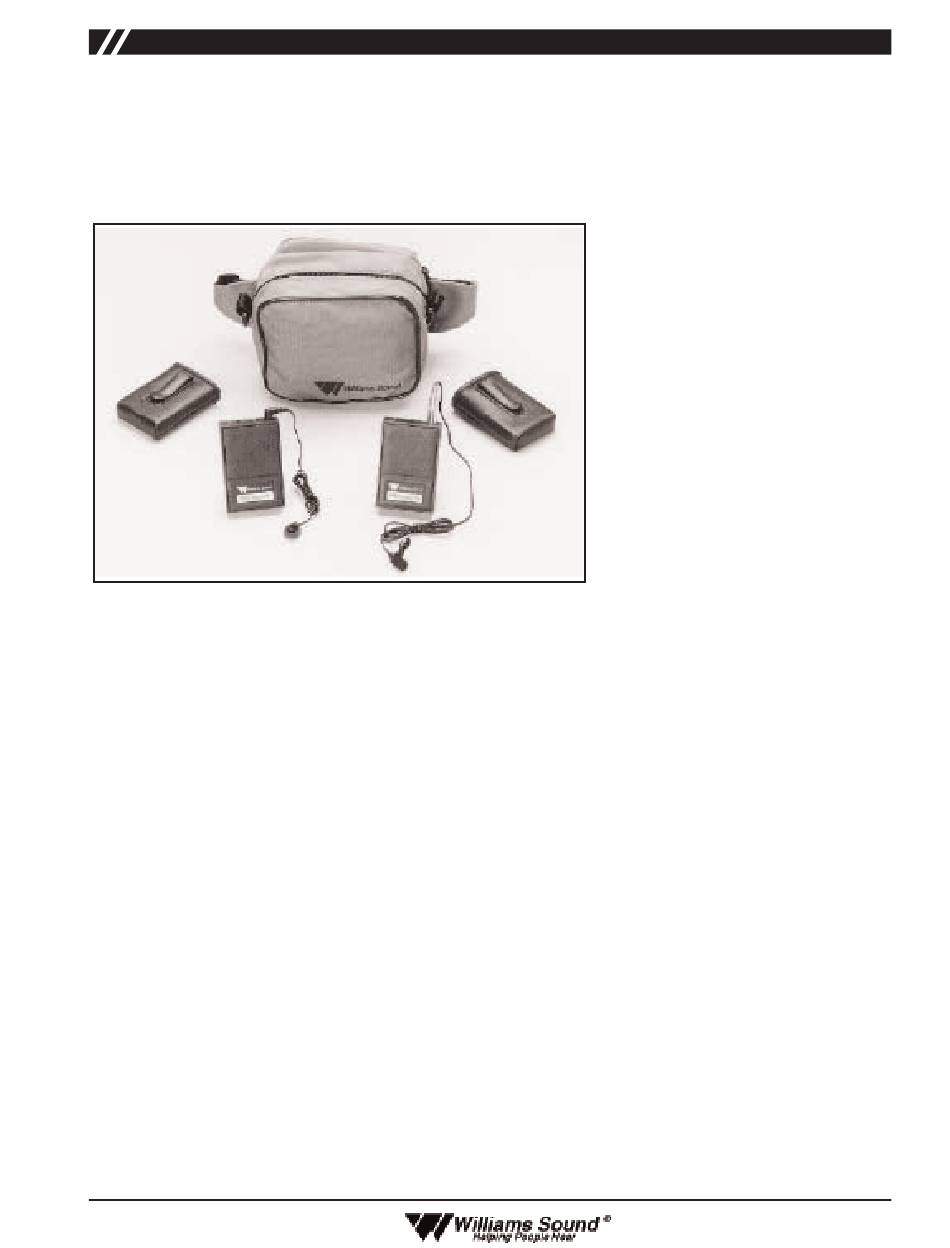

PFM System B Shown: FM Transmitter Model PFM T16 & FM Receiver Model PFM R16
Overview
Thank you for purchasing the Personal FM System from Williams Sound Corporation.
Anyone needing auditory assistance to overcome background noise, reverberation, or
distance from the sound source can benefit from the Personal FM System.
Your PFM System has two principal parts: the Transmitter and the Receiver. Much like
a miniature radio station, the Transmitter and microphone pick up the sounds you want
to hear and broadcast them over an FM radio signal. The receiver and earphone are
used to pick up the broadcast up to 100 feet away.
To avoid difficulties, please read through these instructions as you begin to use the sys-
tem. Then save them for questions that arise as you continue to use your Williams
Sound Personal FM System.
If you have problems with the PFM system, don't hesitate to call us toll-free at 1-
800-843-3544.
Please read through
these instructions as
you begin to oper-
ate the system.
Then save them for
questions that arise
as you continue to
use your Williams
Sound Personal FM
System.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Williams Sound PFM SYS A
Summary of Contents for Williams Sound PFM SYS A
- Page 1 Personal FM System Instructions Basic System (PFM SYS A) / Educational System (PFM SYS B) Please read through these instructions as you begin to oper- ate the system. Then save them for questions that arise as you continue to use your Williams Sound Personal FM System.
-
Page 2: System Components
Plug Mount Microphone Microphone Jack Mic Volume On/Off & On/Off Switch FM Volume Earphone Jack Microphone Earphone FM Receiver Model PFM R16 FM Transmitter Model PFM T16 (Shown with MIC 014 Microphone (Shown with MIC 050 Microphone) and EAR 013 Earphone) System Components The Personal FM Basic and Educational Systems include the following components: •... -
Page 3: Receiver Operation
FM Radio Signal Speaker Uses Transmitter Listeners Use A Receiver With Microphone With Earphones, Headphones, Or Neckloop How the PFM System Works: The speaker wears the body-pack transmitter and a clip-on microphone. The speaker’s voice is broadcast as an FM radio signal over a distance of 100-150 feet (30m). - Page 4 Note On The Receiver Antenna: Adjusting The R16 Receiver Tone Controls: The earphone cord is the receiving antenna. Do not The R16 and R16M have internal adjustments to cut bunch up the cord, wrap it around the receiver, or low frequency sounds and to boost high frequency place the receiver in a shirt pocket.
- Page 5 PFM T16 Transmitter Frequency Change Diagrams Channel Switch Settings (MHz) 1 Selector Switches A 72.1 DN DN 72.3 DN DN C 72.5 DN UP D 72.7 DN UP 72.9 DN DN 75.5 DN DN G 75.7 DN UP 75.9 DN UP Note On The Receiver Antenna: experiencing interference on.
-
Page 6: Rechargeable Batteries
To Charge Batteries PFM R7 & R16 Receiver Tuning 1. Make sure both the Transmitter and Receiver are turned off. 2. Plug the charger cord into the "MIC/CHARGE" jack on top of the Transmitter. Tuning Coil 3. Plug the second charger cord into the "EAR/CHG"... -
Page 7: In Case Of Difficulty
to a comfortable level. If you have two hearing aids (EAR 012 WC) is also available for use with a snap- with telecoils, the signal will couple into both hearing on custom earmold. The PFM System is also suitable aids. for temporary mild hearing loss due to Otitis Media. -
Page 8: Warranty
Transmitter off, you need to change to a clear channel. See the re-tuning instructions. 10. If problems remain, contact your dealer for fur- ther help. Or call Williams Sound toll-free at 1- 800-843-3544. Warranty See the enclosed Warranty Card for Warranty details.
