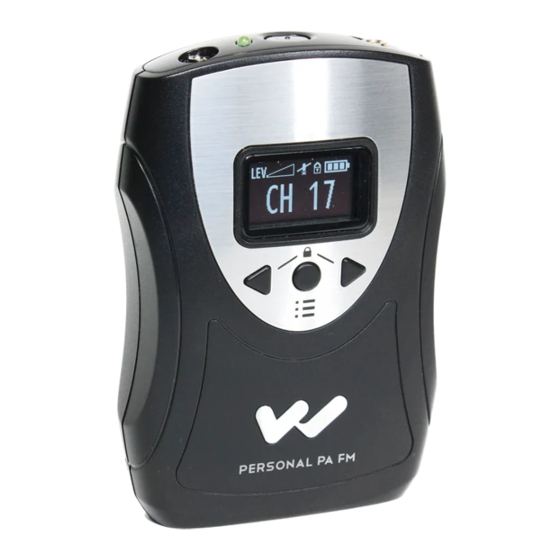

- Page 1 PPA T46 Personal PA 72-76 MHz Body Pack Transmitter ® USER Manual MAN 175E...
-
Page 2: Table Of Contents
PPA T46 Personal PA 72-76 MHz Transmitter Contents Safety Warnings .........................................3 System Overview ......................................3 Recycling Instructions ......................................3 PPA T46 Included Parts ....................................3 Transmitter Applications ....................................4 Important Note about OLED Care ................................4 Features ..........................................4 Quick Setup ........................................4 Basic Setup ........................................6 Advanced Setup ....................................... -
Page 3: Safety Warnings
PPA T46 Personal PA 72-76 MHz Transmitter Safety Warnings System Overview Thank you for purchasing the PPA T46 Personal PA™ Body-pack HEARING SAFETY Transmitter. Much like a miniature radio station, the PPA T46 CAUTION! transmitter broadcasts over an FM radio signal. Receivers are used to pick up the broadcast up to 150 Many Williams AV receivers are designed to amplify sounds to a high volume level, which could potentially cause hearing damage... -
Page 4: Transmitter Applications
PPA T46 Personal PA 72-76 MHz Transmitter Transmitter Applications Quick Setup · Tours 1. Open the battery compartment. Slide the battery selection · Schools switch to the correct position for the type of batteries that will be used. Use “Alkaline” for non-rechargeable batteries, “NiMH” ·... - Page 5 PPA T46 Personal PA 72-76 MHz Transmitter 6. Select the desired operating frequency. Refer to the Figure E: Menu Display following channel selection chart. Make sure the transmitter MIC MUTED SETTINGS and receiver channels match. Up to eight T46’s can operate LOCKED simultaneously on different channels.
-
Page 6: Basic Setup
PPA T46 Personal PA 72-76 MHz Transmitter 3. To set the transmit channel, push Basic Setup Advanced Setup the menu button until you see the The Advanced Setup Menu allows the channel set screen, below. Use the user to turn compression on/off, change arrow buttons to select one of the 17 The Basic Setup Menu allows the user channels (see Channel Selection Chart... - Page 7 PPA T46 Personal PA 72-76 MHz Transmitter buttons until all three lines disappear. The display will then show “PRESS MENU TO LOCK”. Push the Menu button. 4. 8-channel mode restricts the transmitter to just the 8 non-interfering (simultaneous broadcast) channels. To change the transmitter between 8-channel and 17-channel modes, push the menu button until you see...
-
Page 8: Dual-Preset Mode
PPA T46 Personal PA 72-76 MHz Transmitter 5 . Push the Menu button and note Dual-Preset Mode that either “P1” or “P2” shows up Dual-Preset Mode allows the user to on the top left corner of the screen. instantly access one of two independent This indicates which Preset you are transmitting modes. -
Page 9: Specifications
PPA T46 Personal PA 72-76 MHz Transmitter Specifications 4.1” L x 2.8” W x 1.1” D (104 mm x 71 mm x 28 mm) Dimensions: 2.6 oz (74 g), no batteries Weight: Black/Silver Color: Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate Enclosure Material: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up Battery Type options:... -
Page 10: Troubleshooting
PPA T46 Personal PA 72-76 MHz Transmitter Troubleshooting Problem Solution · Verify Transmitter and Receiver are both ON Can’t hear the person speaking/no audio · Verify Transmitter and Receiver are both on the same channel/frequency. · Verify Transmitter mic is not muted. ·... -
Page 11: 2-Year Limited Warranty
PPA T46 Personal PA 72-76 MHz Transmitter 2-Year Limited Warranty Williams AV products are engineered, designed, and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams AV warrants the Personal PA® FM Listening transmitters and receivers (models PPA T35, PPA T27, PPA T46, PPA R37, and PPA R35-8) against defects in materials and workmanship under normal use and conditions for 2-years from date of purchase. - Page 12 info@williamsav.com / www.williamsav.com 800-843-3544 / INTL: +1-952-943-2252 ©2020 Williams AV, LLC MAN 175E...
