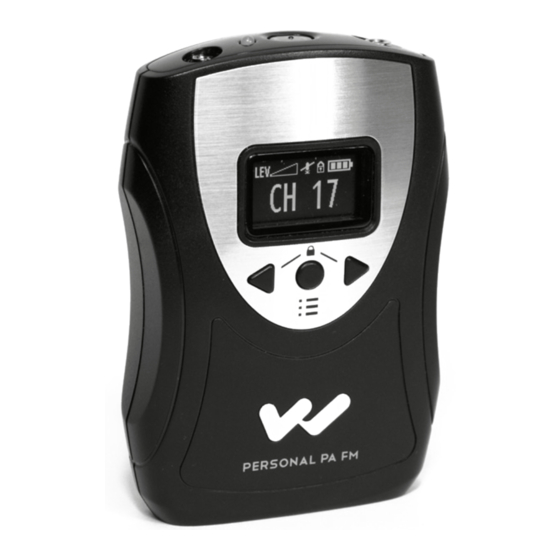

PPA T46
72-76 MHz Transmitter
Instructions For Use and Care

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPA T46 and is the answer not in the manual?

Questions and answers

Related Manuals for Williams Sound PPA T46

Summary of Contents for Williams Sound PPA T46

  • Page 1 PPA T46 72-76 MHz Transmitter Instructions For Use and Care...

  • Page 2: Operating Instructions

    Operating Instructions 1. Open the battery compartment. Slide the battery selection switch to the correct position for the type of batteries that will be used. Use “Alkaline” for non-rechargeable batteries, “NiMH” for rechargeable NiMH batteries (only). (FIG. A) IMPORTANT: If the battery switch is not in the correct position, damage may be caused to the unit.

  • Page 3: Auxiliary Input Jack

    3. Plug in the microphone cord (sold separately) using the “Mic Jack” on top of the transmitter (FIG. B). 4. Optionally, plug in a desired audio source such as a CD or MP3 player using the “Auxiliary Input” jack (WCA 087 stereo auxiliary input cable included).
  • Page 4 6. Select the desired operating frequency. Refer to the following channel selection chart. Make sure the transmitter and receiver channels match. Up to eight T46’s can operate simultaneously on channels 1-8 when used with the R-35-8 receiver channel set. (FIG. C) FIG.
  • Page 5 7. Change the transmitter to the desired operating frequency. Use the Menu to select any of the 17 available channels on 72-76 MHz. To access the channel setting, push the menu button until you see the channel displayed. Change the channel by pushing the left or right arrow buttons. Push T46 FRONT the menu button again to save the channel.
  • Page 6 8. To install the belt clip on the rear of the T46, position the belt clip on the back of transmitter. Turn the belt clip 180˚ left or right to secure the clip. The transmitter can now be clipped onto a belt. To remove, turn the belt clip 180˚ so the open end of the clip points up, and gently pull the belt clip off.

  • Page 7: Lifetime Plus Limited Warranty

    Williams Sound warrants the PPA T46 against defects in materials and workmanship under normal use and conditions for the useful lifetime of the product from date of purchase.

  • Page 8: System Specifications

    System Specifications FM Transmitter, Model T46 Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 70 mA nominal current drain, 30 hours approx. life, or Two (2) AA 1.5 V rechargeable NiMH batteries (BAT 026-2), 70 mA nominal current drain, 20 hours per charge approx.
  • Page 9 System Specifications Display: 1.25” OLED, for viewing transmitter settings Mic Input: 3.5 mm mono phone jack with electret mic bias, adjustable gain with 25 dB range (in menu) Aux Input: 2.5 mm stereo phone jack, adjustable gain with 60 dB range (in menu) Audio 1:1 (off) or 2:1 (on) ratio, selectable in Compress:...

  • Page 10: Safety Information

    Safety Information HEARING SAFETY CAUTION! This product is designed to amplify sounds to a high volume. To protect your hearing and the hearing of others: 1. Make sure the unit is OFF or the volume is turned down before putting on the earphones. 2.

  • Page 11: Recycling Instructions

    Take batteries to a retail or community recycling location. Battery Information The PPA R37 uses 2 AA batteries. We commend using Williams Sound Alkaline batteries (BAT 001) or rechargeable batteries (BAT 026) for longer battery life than other brand batteries. Low Battery Indicator The “On”...

  • Page 12: Customer Service

    Customer Service Representative will give you a Return Authorization Number (RA) and shipping instructions. 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com Printed in the USA ©2012 Williams Sound, LLC MAN 170A...
