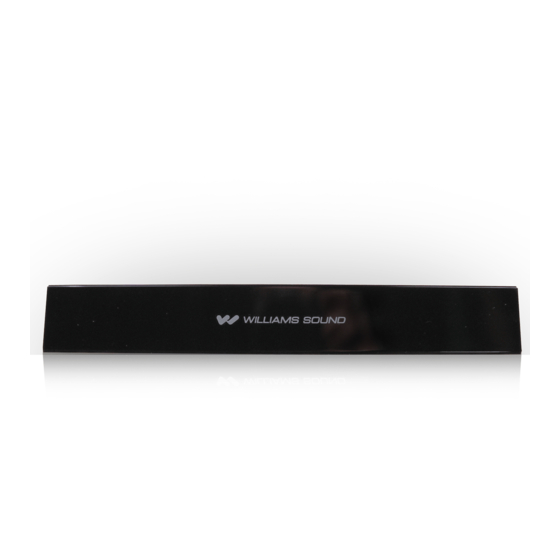

Williams Sound IR T2 Wiring Manual

IR T2 - POE KT1 & KT2
POWER OVER ETHERNET WIRING GUIDE
Introduction
The IR T2 is shipped with Williams Sound's TFP 057 (48VDC power supply). The IR T2 is also compatible with the Williams
Sound POE 001 Power over Ethernet transformer, and with most POE switches.
Note: The IR T2 is NOT compatible with POE+ power supplies.
Note: We cannot guarantee the audio quality of IR T2 units powered from a third-party POE switch, as they may introduce
noise into the system.
POE KT1
This kit should be used for applications using the power supply included with the IR T2 (TFP 057). The kit includes:
• WCA 131
• WCA 133
POE KT2
This kit should be used for applications using a POE Switch or POE 001. The kit includes:
• WCA 131
• WCA 132
Using POE
POE is provided through a CAT5 or higher cable. Installers should carefully select the grade of CAT5 (or better) cable for the
best quality. CAT5 cable provides many advantages:
• Available pre-terminated in various lengths, or terminated on site to the required length
• Available plenum rating, if required
• Available shielded for audio applications
Williams Sound has tested control and balanced audio configurations with up to 300 ft. [91 m.] of CAT5 cable. Environmental
interference can limit the length of cable. Unbalanced audio setups in excess of 20 ft. [6 m.] of cable are not recommended.
CAT5 cable contains four twisted pairs of wires, two of which are used for POE. Using Williams Sound's passive POE injector
kits (POE KT1 and POE KT2) allows the installer to use the remaining two pairs of wire for one of the following three options:
• 1 channel of balanced line level audio
• 1 or 2 channels of unbalanced line level audio
• RS-232 control and monitoring signal
