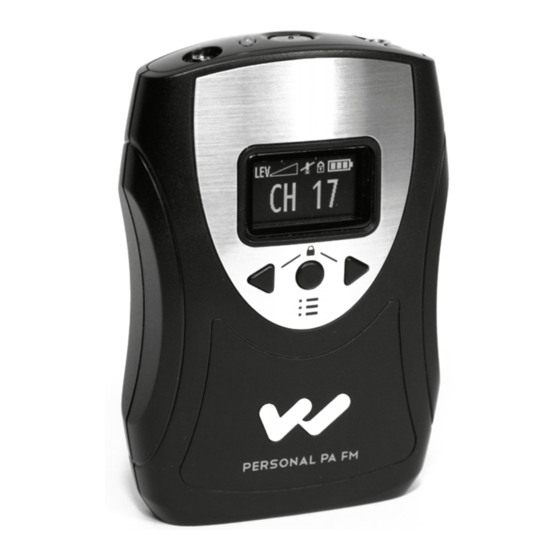

Williams Sound PPA T46 User Manual

Personal pa 72-76 mhz body pack transmitter
Hide thumbs Also See for PPA T46:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Instruction Manual, User Manual
PPA T46
Personal PA
72-76 MHz Body Pack Transmitter
®
USER Manual
MAN 175B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPA T46 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Williams Sound PPA T46

Summary of Contents for Williams Sound PPA T46

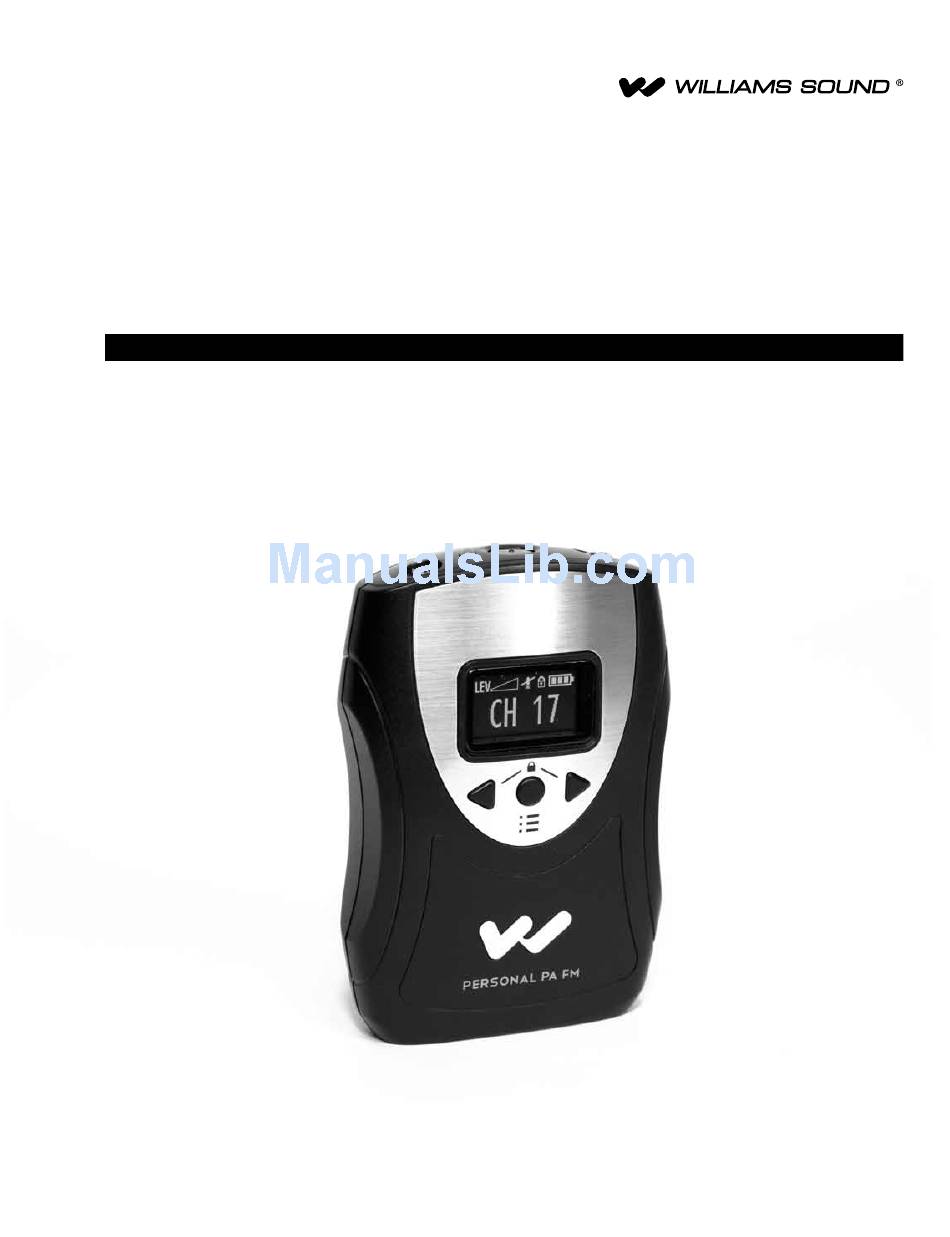

  • Page 1 PPA T46 Personal PA 72-76 MHz Body Pack Transmitter ® USER Manual MAN 175B...

  • Page 2: Table Of Contents

    PPA T46 72-76 MHz Transmitter PPA T46 72-76 MHz Transmitter Contents Safety Warnings..................................3 Hearing.Safety.................................. 3 Battery.Safety.and.Disposal.............................. 3 Pacemaker.Safety................................3 Recycling Instructions................................3 PPA T46 Included Parts................................. 3 Transmitter Applications................................ 3 Important Note about OLED Care............................3 System Overview..................................4 Features.

  • Page 3: Safety Warnings

    PPA T46 72-76 MHz Transmitter Safety Warnings recycling instructions Help.Williams.Sound.protect.the.environment!..Please.take.the. HeAring SAfeTy time.to.dispose.of.your.equipment.properly. CAUTiOn! Product Recycling Instructions: Please.do.NOT.dispose.of.your.Williams.Sound. Many.Williams.Sound.receivers.are.designed.to.amplify.sounds.to. equipment.in.the.household.trash...Please.take.the. a.high.volume.level,.which.could.potentially.cause.hearing.damage. equipment.to.an.electronics.recycling.center;.OR,. if.used.improperly..To.protect.your.hearing.and.the.hearing.of. return.the.product.to.the.factory.for.proper.disposal... others: Battery Recycling Instructions: 1.. Make.sure.the.volume.is.turned.down.before.putting.on.the. Please.do.NOT.dispose.of.used.batteries.in.the. earphone.or.headphone—only.then.adjust.the.volume.to.a. household.trash...Please.take.the.batteries.to.a.retail.or. comfortable.level.. community.collection.point.for.recycling. 2.. Set.the.volume.level.at.the.minimum.setting.that.you.need.to. hear.. PPA T46 included Parts 3..

  • Page 4: System Overview

    PPA T46 72-76 MHz Transmitter System Overview Quick Setup Thank.you.for.purchasing.the.PPA.T46.Personal.PA™.Body-pack. 1..Open.the.battery.compartment...Slide.the.battery.selection. Transmitter. switch.to.the.correct.position.for.the.type.of.batteries.that.will. Much.like.a.miniature.radio.station,.the.PPA.T46.transmitter. be.used...Use.“Alkaline”.for.non-rechargeable.batteries,.“NiMH”. for.rechargeable.NiMH.batteries.(only)..(FIG..A).IMPORTANT: If broadcasts.over.an.FM.radio.signal...Receivers.are.used.to.pick. up.the.broadcast.up.to.150.feet.away..The.system.helps.large.or. the battery switch is not in the correct position, damage may be small.groups.overcome.background.noise.and.distance.to.clearly. caused to the unit. hear.the.speaker. 2..Install.the.AA.batteries..Be.sure.to.observe.proper.polarity. The.PPA.T46.FM.transmitter.broadcasts.voice.and/or.audio. (+/-)..Damage.due.to.improper.battery.installation.may.void.

  • Page 5: Figure.d:.menu.buttons

    PPA T46 72-76 MHz Transmitter 6..Select.the.desired.operating.frequency...Refer.to.the.following. figure e: Menu display channel.selection.chart..Make.sure.the.transmitter.and. receiver.channels.match..Up.to.eight.T46’s.can.operate. MIC MUTED SETTINGS simultaneously.on.different.channels...If.this.is.desired,.set. LOCKED each.T46.to.8-channel.mode.(see.Advanced.Settings,.Step.4).. MIC + AUX The.frequencies.in.8-channel.mode.correspond.to.the.R35-8. AUDIO LEVEL channel.set.shown.in.the.chart...This.preset.eight.channel/ BATTERY TRANSMIT LIFE frequency.selection.is.the.only.configuration.that.will.allow. CHANNEL simultaneous.eight.channel.use...(FIG..C)..(FIG..C) figure C: Channel Selection Chart 9..To.install.the.belt.clip.on.the.rear.of.the.T46,.position.the.belt. T46 Ch Letter...

  • Page 6: Basic Setup

    PPA T46 72-76 MHz Transmitter Basic Setup The.Basic.Setup.Menu.allows.the.user. to.change.the.most.frequently.used. 3..To.set.the.transmit.channel,.push. settings.easily...The.User.can.change.the. the.menu.button.until.you.see.the. transmitting.channel.(or.frequency),.the. channel.set.screen,.below...Use.the. master.volume.level,.and.the.auxiliary. arrow.buttons.to.select.one.of.the.17. volume.level. channels.(see.Channel.Selection.Chart. in.Quick.Setup,.Fig..C)... 1..Turn.on.the.transmitter.by.pushing. and.holding.the.power.button.for.3. seconds...The.transmitter.will.start.up. and.show.the.following.three.screens. 4..To.set.the.Master.Volume.Level.(this. is.the.microphone.+.auxiliary.input. volume),.push.the.menu.button.until. you.see.the.master.volume.screen,. below...Use.the.arrow.buttons.to. Note:..While.on.the.main.screen,.if.the. adjust.the.volume.level.(1-30)... left.or.right.arrow.button.is.pushed,.the. following.screen.will.show,.indicating. that.you.need.to.enter.the.menu.in. order.to.change.any.settings.. 2..To.mute.the.microphone,.push.and. release.the.power.button.on.the.top.of. 5..To.set.the.Auxiliary.Volume.Level.(this. the.transmitter...To.un-mute,.push.and. is.the.auxillary.input.volume.before.it.is. release.the.power.button.again.

  • Page 7: Advanced Setup

    PPA T46 72-76 MHz Transmitter Advanced Setup 6..To.change.the.screen.brightness.(level. 1-4),.push.the.menu.button.until.you. see.the.brightness.screen,.below...Use. The.Advanced.Setup.Menu.allows.the. the.left,.right.arrow.buttons.to.toggle. user.to.turn.compression.on/off,.change. between.“1”.“2”.“3”.or.“4”.. between.channel.and.frequency.display. mode,.change.the.transmitter.to.8.or. 17-channel.mode,.change.the.amount. of.time.for.display.time-out,.set.screen. brightness,.and.restore.factory.default. settings.. 4..8-channel.mode.restricts.the. transmitter.to.just.the.8.non-interfering. 1..To.access.the.Advanced.Setup.Menu,. (simulataneous.broadcast).channels... push.the.Menu.button.repeatedly.to. To.change.the.transmitter.between.. toggle.through.all.of.the.basic.settings,. 8-channel.and.17-channel.modes,. until.you.see.the.following.screen... push.the.menu.button.until.you.see. Push.the.right.arrow.to.enter.the. the.channel.selection.mode.screen,. advanced.setup.menu. below...Use.the.arrow.buttons.to. toggle.between.“17.CHANNEL. MODE”.or.“8.CHANNEL.MODE”... 2..Audio.Compression.reduces.the. volume.difference.between.loud. and.quiet.sounds..To.set.the.audio. 7..To.erase.all.user.settings.and.return.to.

  • Page 8: Dual-Preset Mode

    PPA T46 72-76 MHz Transmitter dual-Preset Mode 8..To.lock.(or.unlock).the.settings,.you. 5...Push.the.Menu.button.and.note. must.first.be.on.the.Main.Screen. that.either.“P1”.or.“P2”.shows.up. on.the.top.left.corner.of.the.screen... Dual-Preset.Mode.allows.the.user.to. This.indicates.which.Preset.you.are. instantly.access.one.of.two.independent. adjusting. transmitting.modes...Each.preset. can.have.it’s.own.frequency,.master. volume,.and.auxiliary.volume.settings..Then,.push.and.hold.the.left-.and.right- After.setup,.the.user.can.easily.toggle. arrow.buttons.together...While.holding. between.the.two.presets. the.buttons,.you.will.see.the.following. Note:.only.one.frequency/channel.can.be. dashed-line.display..Keep.holding.the. transmitted.at.a.time. buttons.until.all.three.lines.disappear.. 6..Follow.the.steps.under.“Basic.Setup”. (starting.at.step.3).to.set.up.each. 1...Turn.the.transmitter.off.by.holding. preset.and.“Advanced.Setup”.(starting. the.power.button.for.3.seconds.. at.step.1).to.change.settings.that. The.transmitter.must.be.OFF.before. affect.both.presets. performing.the.next.step.. .The.display.will.then.show.“PRESS. MENU.TO.LOCK”...Push.the.Menu. 7..To.toggle.between.the.two.presets,.

  • Page 9: Specifications

    PPA T46 72-76 MHz Transmitter Specifications Dimensions: 4.1”.L.x.2.8”.W.x.1.1”.D.(104.mm.x.71.mm.x.28.mm). Weight: 2.6.oz.(74.g),.no.batteries Color: Black/Silver Enclosure Material: Shatter-resistant.PC/ABS.plastic.with.textured.scratch-resistant.aluminum.faceplate Battery Type options: Two.(2).AA.1.5.V.non-rechargeable.Alkaline.batteries.(BAT.001-2),.75.mA.nominal.current.drain,.up. to.30.hours.battery.life Two.(2).AA.1.5.V.NiMH.rechargeable.batteries.(BAT.026-2),.75.mA.nominal.current.drain,.up.to.20. hours.battery.life.per.charge,.recharges.in.14–16.hours,.uses.CHG.3502.or.CHG.3512.Charger Operating Frequencies: Selectable,.17.channels,.72.1.–.75.9.MHz*...Switchable.8.or.17.Channel.Mode...(8-channel.mode. setting.corresponds.with.PPA.R35-8.receiver.channels) Stability: ±..005%,.frequency.synthesized,.crystal.reference,.PLL Modulation: Wide-band.FM,.75.kHz.peak,.75.µS.pre-emphasis RF Output: 80.mV/m.at.3.m.(max..allowed.by.FCC.rules) Frequency Response: 180.Hz.to.13.kHz,.±.3.dB.at.1%.max..THD Signal-to-Noise Ratio: 65.dB.(typical).transmitted Transmit Antenna: Integral.with.microphone.cord Microphone: Electret.type,.3.5.mm.mono.plug...

  • Page 10: Troubleshooting

    PPA T46 72-76 MHz Transmitter Troubleshooting Problem Solution Can’t hear the person speaking/no audio ·.Verify.Transmitter.and.Receiver.are.both.ON ·.Verify.Transmitter.and.Receiver.are.both.on.the.same.channel/frequency. ·.Verify.Transmitter.mic.is.not.muted. ·.Verify.mic.volume.and.aux.volume.levels.-.try.turning.them.up. ·.Verify.the.microphone.with cord.is.plugged.in...The.cord.acts.as.the.transmitting. antenna. ·.If.using.the.Aux.input,.verify.the.aux.source.is.playing,.and.the.level.indicator.(on.the. front.of.the.transmitter).is.pulsing. Can’t hear the person speaking above the ·.Adjust.the.microphone.volume.in.the.menu room noise ·.Reposition.the.microphone.closer.to.the.mouth Limited Range ·.The.microphone.cord.is.the.transmitting.antenna...Make.sure.it.is.not..coiled.up.or.obstructed,.and.that.it.is.a.Williams.Sound.approved.mic. ·.Verify.the.transmitter.distance.from.the.receiver.-.try.bringing.them.closer. ·.Verify.there.are.no.other.transmitters.in.the.area.on.the.same.(interfering).channels.

  • Page 11: Limited Warranty

    PPA T46 72-76 MHz Transmitter lifetime Plus limited Warranty Williams.Sound.products.are.engineered,.designed,.and.manufactured.under.carefully.controlled.conditions.to.provide.you.with.many.years.of.reliable.service. Williams.Sound.warrants.the.Personal.PA®.FM.Listening.transmitters.and.receivers.(models.PPA.T35,.PPA.T27,.PPA.T46,.PPA.R37,.and.PPA.R35-8).against.defects.in. materials.and.workmanship.under.normal.use.and.conditions.for.the.useful.lifetime.of.the.product.from.date.of.purchase. This.warranty.is.available.to.the.original.end.purchaser.of.the.product.and.CAN.BE.transferred.to.subsequent.purchasers.of.the.product. Microphones,.earphones,.headphones,.batteries,.chargers,.cables,.carry.cases,.and.most.other.accessory.products.carry.a.90-day.warranty. Williams.Sound.has.no.control.over.the.conditions.under.which.this.product.is.used..Williams.Sound,.therefore,.disclaims.all.warranties.not.set.forth.above,.both.express. and.implied,.with.respect.to.the.Personal.PA®.FM.Listening.System,.including.but.not.limited.to,.any.implied.warranty.of.merchantability.or.fitness.of.use.of.such.equipment. including,.without.limitation,.any.warranty.that.the.use.of.such.equipment.for.any.purpose.will.comply.with.applicable.laws.and.regulations..Williams.Sound.shall.not.be.liable. to.any.person.or.entity.for.any.medical.expenses.or.any.direct,.incidental.or.consequential.damages.caused.by.any.use,.defect,.failure.or.malfunctioning.of.the.product,. whether.a.claim.for.such.damages.is.based.upon.warranty,.contract,.tort.or.otherwise,.the.sole.remedy.for.any.defect,.failure.or.malfunction.of.the.products.is.replacement. of.the.product..No.person.has.any.authority.to.bind.Williams.Sound.to.any.representation.or.warranty.with.respect.to.the.Personal.PA®.FM.Listening.System..Unauthorized. repairs.or.modifications.will.void.the.warranty..This.warranty.is.void.if.damage.occurred.because.of.misuse,.or.if.the.product.has.been.repaired.or.modified.by.anyone.other. than.a.factory.authorized.service.technician..Warranty.does.not.cover.normal.wear.and.tear.on.the.product.or.any.other.physical.damage.unless.the.damage.was.the.result. of.a.manufacturing.defect..Williams.Sound.is.not.liable.for.consequential.damages.due.to.any.failure.of.equipment.to.perform.as.intended..Williams.Sound.shall.bear.no. responsibility.or.obligation.with.respect.to.the.manner.of.use.of.any.equipment.sold.by.it.. This.warranty.does.not.cover.reimbursement.for.your.costs.of.removing.and.transporting.the.product.for.warranty.service.evaluation.or.installation.of.any.replacement.product. provided.under.this.warranty. The.exclusions.and.limitations.set.out.above.are.not.intended.to,.and.should.not.be.construed.so.as.to.contravene.mandatory.provisions.of.applicable.law..If.any.part.or.term. of.this.Disclaimer.of.Warranty.is.held.to.be.illegal,.unenforceable,.or.in.conflict.with.applicable.law.by.a.court.of.competent.jurisdiction,.the.validity.of.the.remaining.portions.of. this.Disclaimer.of.Warranty.shall.not.be.affected,.and.all.rights.and.obligations.shall.be.construed.and.enforced.as.if.this.Limited.Warranty.did.not.contain.the.particular.part.or. term.held.to.be.invalid..The.terms.of.the.warranty.are.governed.by.the.laws.of.the.State.of.Minnesota. Prices.and.the.specifications.of.the.products.are.subject.to.change.without.notice. *For.Complete.Warranty.Statement.go.to:.www.williamssound.com/warranty-statement NOTICE:.Williams.Sound.products.are.NOT.designed.for.use.in.extreme.temperature,.humidity.or.chemical.environments..The.introduction.of.chemicals.such.as.chlorine,.salt. water.or.human.sweat.into.the.product.will.cause.damage.to.the.circuitry..Damage.due.to.these.causes.is.NOT.covered.under.the.Product.Warranty. If.you.experience.difficulty.with.your.system,.call.Toll-Free.for.Customer.Assistance..1-800-843-3544.(U.S.A.)..or..+1.952.943.2252.(Outside.the.U.S.A.) If.it.is.necessary.to.return.the.system.for.service,.your.Customer.Service.Representative.will.give.you.a.Return.Authorization.Number.(RA).and.shipping.instructions.
  • Page 12 10300.Valley.View.Rd..·..Eden.Prairie,.MN..55344 800-328-6190./.952-943-2252..·..FAX:.952-943-2174 .©2013.Williams.Sound,.LLC.....MAN.175B www.williamssound.com...
