Williams Sound Personal PA PPA T36 Specifications

Personal PA
™

Description:

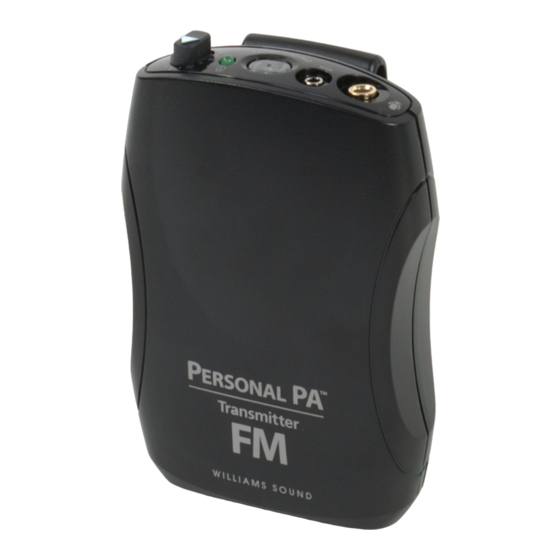

The Personal PA™ T36 transmitter will broadcast a speaker's voice on one of sixteen available channels,
72-76 MHz, to listeners using a R33, R35, R35-8, R36 or R1600 receiver. The unit features flexible mic and
auxiliary inputs, push-button on/off/mute controls, channel lock and selectable compression. Lightweight
and portable, the PPA T36 will operate up to 150 feet (46 m) from the listening audience. It is ideal for pro-
viding hearing assistance for students in the classroom, tour group participants, employee training, business
meetings and more. For order information on the PPA T36, contact Williams Sound Corp. at 800-843-3544.

Applications:

Classrooms • Job Consultation •Job Training • Tours • Group Meetings
PPA T36 FM Transmitter:
Dimensions:
Weight:
Color:
Battery Type:
Operating Freq's:
Stability:
Modulation:
RF Output:
Freq Response:
Signal-to-Noise Ratio:
Transmit Antenna:
Microphone:
External Controls:
Mic Input:
Aux Input:
Audio Compression:
Compatible Receivers:
Approvals/Directives:

Warranty:

Note:
*DISCLAIMER: FCC RULES LIMIT USE OF THIS EQUIPMENT TO AUDITORY ASSISTANCE
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
©2008 Williams Sound Corp. MCAT 069A
FM Transmitter •
ADA
4.1" L x 2.8" W x 1.1" H (104 mm x 71 mm x 28 mm)
2.6 oz (74 g), no batteries
Black, shatter-resistant PC/ABS plastic
Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001),
70 mA nominal current drain, 30 hours approx. life or
Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026), 70 mA
nominal current drain, 20 hours per charge approx., recharges in
14–16 hours, uses CHG 3502 or CHG 3512 Charger
Selectable, 16 channels, 72.1 – 75.9 MHz* (channels 1-8 correspond
with R35-8 receiver channels)
± .005%, frequency synthesized, crystal reference, PLL
Wide-band FM, 75 kHz pk, 75 µS pre-emphasis
80 mV/m at 3 m (max. allowed by FCC rules)
200 Hz to 13 kHz, ± 3 dB at 1% max. THD
65 dB (typical) transmitted
Integral with microphone cord
Electret type, 3.5 mm mono phone plug
Momentary push button: push and hold 3 seconds for power On/Off,
push and release for microphone mute On/Off; Rotary sixteen channel
switch (with internal channel lock switch)
3.5 mm mono phone jack with electret mic bias, internal adjustable
gain with 25 dB range
2.5 mm stereo phone jack, internal adjustable gain with 60 dB range
1:1 or 2:1 ratio selected with internal slide switch
PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R35-8, PPA R1600
FCC, Industry Canada, RoHS, WEEE
5 years, parts and labor (90 days on accessories)
FCC regulations, section 15.21, requires the user to comply with the
rules of transmitter operation. Any changes or modifications made
by the user not expressly approved for compliance may result in the
loss of all privileges and authority to operate the equipment
Model PPA T36
Auxiliary Power On/Off/Mute Channel
Input
Selector
Mic Jack Power On Indicator
T36 Top
T36 Front
