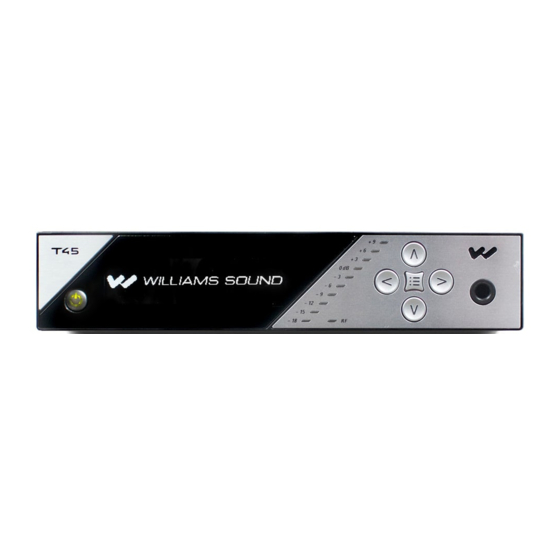

- Page 1 PPA T45NET / PPA T45 Personal PA DSP FM Wideband Transmitter ® USER Manual Transmitter Models PPA T45NET and PPA T45 Optional Receiver Models PPA R38, PPA R37, PPA R35-8, PPA R1600 MAN 176C PRINTED IN THE U.S.A.
-
Page 2: Table Of Contents
Figure 5: Installing the ANT 025 Antenna (rear view) Connecting the T45 to other Devices Figure 6: T45 Typical Connections Controls & Features Figure 7: PPA T45 Front View Power Button OLED Display Audio Input Level Indicator Input Overload Indication... - Page 3 4b. Network Settings 4c. Admin (Laptop or Desktop PC) Network Setup for Hard-wired Ethernet Devices Figure 15: Williams Sound Device Discoverer Tool (optional) (iPad, Android Tablet, or Smart Phone) Network Setup for Wireless Devices Figure 16: Williams Sound Device Discoverer Tool...
- Page 4 Remote Control is not working over the hardwired Ethernet network Remote Control is not working over Wi-Fi System Specifications PPA T45, PPA T45NET Transmitters System Specifications PPA T45, PPA T45NET Transmitters (continued) System Specifications PPA R38 Receiver System Specifications PPA R35-8 Receiver...
- Page 5 Personal PA DSP FM Wideband Transmitter ® This page intentionally left blank...
-
Page 6: System Connection Overview
It includes a complete audio processor optimized for the needs of hearing impaired persons and is easily integrated with your existing sound system. The PPA T45 can also be used with a microphone as a stand-alone system. -
Page 7: Wiring And Connections
A401 Power Supply Connection Connect the TFP 048 power supply to the Power Supply Jack located on the rear of the PPA T45 transmitter (Figure 2). Ethernet Connection If connecting to a network, or connecting directly to a PC, a Standard or Crossover Ethernet cable may be used. The PPA T45NET auto-senses the connection and configures itself for the Ethernet cable type being used. -
Page 8: Multi-Channel Sources
The PPA T45 transmits audio with excellent fidelity. Therefore, the audio source signal should be of the highest audio quality and not subject to a compressor, limiter, reverberation, or other signal processing equipment. The T45 has a very effective DSP audio processor. -
Page 9: Avoiding Hum In The Audio (As A Result Of A Ground Loop)
A hum created by a ground loop can often be eliminated by connecting a capacitor in series with the audio line shield to the transmitter’s ground. This method also maintains good RF shielding. Determining the effectiveness of this method for your installation usually requires some experimentation. Necessary capacitors can be obtained from Williams Sound or from any electronic parts supplier. See Figure 4. -
Page 10: Connecting The T45 To Other Devices
The Remote Antenna Connection can be used to connect a remote antenna to the T45 when the whip antenna won’t be used (as in the case of rack-mounting). See the Williams Sound Antenna Guide for a full range of antenna and mounting options (see Figure 5). -
Page 11: Controls & Features
This shows current operation settings and is also used with the menu control buttons for configuring the T45. Each time the power of the unit is turned on, the OLED Display shows a “Williams Sound” start-up screen (Figure 8). After seven seconds, the “RF”... -
Page 12: Headphone Jack
Personal PA DSP FM Wideband Transmitter ® • While the transmitter is displaying the Menu on the screen: • The Up “ ” button navigates upward in the menu or changes a setting. (Figure 9) • The Down “v” button navigates downward in the menu or changes a setting. (Figure 9) •... -
Page 13: Quick Setup Instructions
® Quick Setup Instructions 1. Position the PPA T45 transmitter near the sound system or mixer from which it will receive audio. It should be free from metallic objects that might interfere with the antenna signal. 2. If the transmitter is free-standing (not rack-mounted), install the ANT 025 whip antenna. Gently thread the ANT 025 onto the stud recessed in the hole on the top of the transmitter (Figure 2) and extend it all the way. -
Page 14: Front Screen Menu Tree (Quick Reference)
Personal PA DSP FM Wideband Transmitter ® Front Screen Menu Tree (Quick Reference) The default “MAIN INFO SCREEN” shows important overall system settings (see Figure 8). The menu screens are used to configure the T45 (Figures 10,11,12). To enter the menu, push the “Menu” button. Then use the Forward “>” and Down “v” buttons to navigate deeper into the menu. -
Page 15: Figure 11: Front-Screen Menu Tree (Continued)
Personal PA DSP FM Wideband Transmitter ® Figure 11: Front-screen Menu Tree (continued) RF SETTINGS RF CHANNEL CH 1 - CH 17 RF OUTPUT POWER FULL MEDIUM RF TIME-OUT 30 MIN 4 HRS ALWAYS ON PREFERENCES DISPLAY MODE FREQUENCY CHANNEL NUMBER CHANNEL MODE 17-CHANNEL 8-CHANNEL... -
Page 16: Figure 12: Front-Screen Menu Tree (Continued)
DSP FM Wideband Transmitter ® Figure 12: Front-screen Menu Tree (continued) The Add-on module applies to the PPA T45NET model only. In the PPA T45 model, the first screen in the “Add-On Module” menu will display “No Module Detected”. ADD-ON MODULE STATUS ADD-ON MODULE: “... -
Page 17: High Pass Filter
Personal PA DSP FM Wideband Transmitter ® IMPORTANT: Listen to the transmitted audio through the headphone jack, especially when deciding on an appropriate high pass filter. This is a good way to ensure the listening audience is going to receive the highest audio quality. By default, the T45 is shipped in the Music mode. -
Page 18: 1B. Audio Source
Personal PA DSP FM Wideband Transmitter ® To set up the Custom Audio Preset: 1. Press the Menu button. The display will show “AUDIO SETTINGS” in the selection box. 2. Press the “>” button to display “AUDIO SOURCE” in the selection box. 3. -
Page 19: 1C. Audio Input Gain
Personal PA DSP FM Wideband Transmitter ® 1c. Audio Input Gain The Audio Input Gain adjusts the incoming audio level into the T45. This adjustment affects analog and digital audio. Changes to the input level will affect the level indicated by the front panel LED’s when audio is present. To adjust the audio input level: 1. -
Page 20: Rf Settings
Personal PA DSP FM Wideband Transmitter ® 2. RF SETTINGS The RF Settings provide the ability to change the broadcasting Channel, RF Output Power level, and the RF time-out delay. 2a. Channel (or Frequency) The Channel setting allows the channel number or corresponding frequency to be selected. Note: this depends on what display mode the transmitter is in (see Step 3a). -
Page 21: 2C. Rf Time-Out
Personal PA DSP FM Wideband Transmitter ® To change the RF Output Power: 1. Press the Menu button. The display will show “AUDIO SETTINGS” in the selection box. 2. Press the “v” button to display “RF SETTINGS”. 3. Press the “>” button. “RF CHANNEL” will be displayed in the selection box. 4. -
Page 22: 3B. Channel Mode
Personal PA DSP FM Wideband Transmitter ® 3. Press the “>” button to access the Preferences. 4. Press the “>” button to access the “DISPLAY MODE” Setting. The currently selected display mode will be shown in the selection box. 5. Press the “^” or “v” buttons to change the Display Mode to “FREQUENCY” or “CHANNEL”. Note that the setting changes live, it does not need to be “selected”... -
Page 23: 3E. Restore Defaults
Personal PA DSP FM Wideband Transmitter ® the front, and the description is displayed as one of the fields on the main info screen. On the web interface (PPA T45NET only), the description appears on the Home page (Figure 18), making it easy to identify which transmitter the web page is controlling. -
Page 24: Add-On Module (Ppa T45Net Only)
Personal PA DSP FM Wideband Transmitter ® 4. ADD-ON MODULE (PPA T45NET only) The Add-On Module Settings show up in the menu only if the optional ethernet module is installed (PPA T45NET only). This menu provides the ability to view the Status of the add-on module, choose the IP Address Mode (Static or and Dynamic IP Addressing), change the IP Address and Subnet Mask, set/change the Security Password and choose whether or not to display the IP Address on the front display. -
Page 25: 4C. Admin
Personal PA DSP FM Wideband Transmitter ® To change the Subnet Mask: 1. Press the Menu button. The display will show “AUDIO SETTINGS” in the selection box. 2. Press the “v” button repeatedly until “ADD-ON-MODULE” is displayed in the selection box. 3. -
Page 26: Network Setup For Hard-Wired Ethernet Devices (Laptop Or Desktop Pc)
Device Discoverer Tool”. This tool allows the discovery of T45NET devices on a local network and shows their IP Address. a. Once downloaded and installed, open the “Williams Sound Device Discoverer.jar” Tool on the Laptop or Desktop PC. (If the tool doesn’t open you may need to update the PC to the latest version of Java). The T45(s) should show up with it’s... -
Page 27: Figure 15: Williams Sound Device Discoverer Tool (Optional)
DSP FM Wideband Transmitter ® Figure 15: Williams Sound Device Discoverer Tool (optional) b. Open a web browser on the Laptop or Desktop PC. c. In the address bar, type in the IP address of the T45 (static from step 2 or dynamic from step 5) and hit “Enter”. -
Page 28: Network Setup For Wireless Devices (Ipad, Android Tablet, Or Smart Phone)
Device Discoverer Tool”. This tool allows the discovery of T45NET devices on a local network and shows their IP Address. a. Once downloaded and installed, open the “Williams Sound Device Discoverer.jar” Tool on the Laptop or Desktop PC. (If the tool doesn’t open you may need to update the PC to the latest version of Java). The T45(s) should show up with its (their) IP Address (see figure 15). - Page 29 Personal PA DSP FM Wideband Transmitter ® 6. Connect to the Router through Wi-Fi on the Wireless Device. a. Make sure the Wi-Fi is turned ON. b. In Wi-Fi settings, look for the router SSID you got from step 1. c.
-
Page 30: Web Control Interface
Personal PA DSP FM Wideband Transmitter ® Web Control Interface The PPA T45NET provides a web interface (set of web pages) to manage the transmitter settings. These web pages can be accessed over an Ethernet network, either hard-wired or wireless, with most internet browsers. Transmitter settings can be accessed and changed through the front panel controls - and/or this web interface. -
Page 31: Figure 18: Home
Personal PA DSP FM Wideband Transmitter ® Figure 18: Home Page and Event Log The Home Page shows a summary of the T45 status; there are no controls on this page. The Event Log is only active during each browsing session. When the browser is closed, the log is cleared. When the browser is re-opened, a new event logging session begins. -
Page 32: Figure 19: Audio Settings
Personal PA DSP FM Wideband Transmitter ® Figure 19: Audio Settings Page The Audio Settings page displays all current audio settings, as well as corresponding T45 web-based controls. Note: Turning off the Audio Level Monitor may improve performance of the webpage, particularly on mobile devices that have less processing power. -
Page 33: Figure 20: Rf Settings
Personal PA DSP FM Wideband Transmitter ® Figure 20: RF Settings Page The RF Settings page displays all current RF-related settings as well as corresponding T45 web-based controls. Channel or Frequency Select (depends on Display Mode) Transmitting Power Sets time delay for transmitter to stop transmitting if no audio is detected on input(s) and no buttons are pressed. -
Page 34: Figure 21: Network Settings
Personal PA DSP FM Wideband Transmitter ® Figure 21: Network Settings Page The Network Settings page displays NET connectivity settings. Typically these are not needed after initial installation. Dynamic/Static IP Addressing Set static IP Address and Subnet Mask Changes above must be applied to take effect. -
Page 35: Receiver Safety Information
Help Williams Sound protect the environment! Please take the time to dispose of your equipment properly. Product Recycling: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to a electronics recycling center; OR return the product to the factory for proper disposal. -
Page 36: Wideband Fm Receivers (Model Selection Is Optional)
1. Insert two (2) AA batteries ensuring correct polarity. If rechargeable NiMH batteries are to be used with the receiver and a Williams Sound charger, make sure the Alkaline/NiMH switch inside the battery compartment is set to NiMH before charging. -
Page 37: Wideband Fm Receivers (Continued)
1. Insert two (2) AA batteries ensuring correct polarity. If rechargeable NiMH batteries are to be used with the receiver and a Williams Sound charger, make sure the Alkaline/NiMH switch inside the battery compartment is set to NiMH before charging. -
Page 38: Receiver Model Ppa R35-8
If stereo headphones are used, sound will be heard only in one side. The PPA R38 and PPA R37 will work properly with stereo or mono headphones. Williams Sound evaluates each earphone and headphone used with the PPA R38, PPA R37 and PPA R35-8 receivers;... -
Page 39: Belt Clip Installation (All Receiver Models)
Personal PA DSP FM Wideband Transmitter ® Belt Clip Installation (All Receiver Models) To Install: Position the belt clip on the rear of the PPA R37, PPA R35-8, or PPA R38 receivers as shown in Figure 27. Turn the belt clip 180º left or right as shown in Figure 27. -
Page 40: Suggestions For Receiver Management
If the receiver sound becomes weak or distorted, replace the batteries. The indicator light may remain on, even with batteries that are weak. Do not leave dead batteries in the receivers. The chart below shows typical battery life with Williams Sound’s 72-76 MHz... -
Page 41: Troubleshooting
See Figure 7 - Audio Input Level hot buttons. • Check for ground loops or noise on the input signal. See Figure 4 for more information. If you are still having trouble, call your Authorized Williams Sound dealer or representative. Noise in audio “grows” when program is silent •... -
Page 42: Users Must Turn Receiver Volume Controls Way Up (To 4 Or 5) To Get Enough Volume
6. Make sensitive equipment more immune to RFI/EMI. The manufacturers of your audio equipment may offer application notes for this purpose. Williams Sound offers a document giving suggestions for improving RF immunity in existing audio equipment (Technical Bulletin: Buzz Or Hum In The Sound System, FRM 531). -
Page 43: Remote Control Is Not Working Over The Hardwired Ethernet Network
12. Try directly connecting the T45’s Ethernet cable to a PC to verify that the T45 and Ethernet cable are operational. 13. If you have tried all of these steps and still can’t connect, call Williams Sound for additional troubleshooting help. Note... -
Page 44: Remote Control Is Not Working Over Wi-Fi
IP addresses on the network. 15. If you have tried all of these steps and still can’t connect, call Williams Sound for additional troubleshooting help. Note that Williams Sound cannot help in all cases, as there are many variables within networks. -
Page 45: System Specifications Ppa T45, Ppa T45Net Transmitters
Personal PA DSP FM Wideband Transmitter ® System Specifications PPA T45, PPA T45NET Transmitters Dimensions 8.45” W x 8.25” D x 1.72”H (21.5 cm x 21 cm x 4.4 cm) Weight Transmitter: 3.0 lbs (1.36 kg) Shipping Weight: 4.50 lbs (2.04 kg) (Transmitter, Power Supply, Antenna and packaging) -
Page 46: System Specifications Ppa T45, Ppa T45Net Transmitters (Continued)
DSP FM Wideband Transmitter ® System Specifications PPA T45, PPA T45NET Transmitters (continued) Audio Inputs (1x) Combination 3-pin XLR, 1/4” (TRS) jack for Mic or Line Level Analog Audio, Balanced or Unbalanced Line Level, or Microphone with Selectable Phantom Power (1x) XLR for Digital Audio, AES3/EBU, supported sample rates 44.1 kHz and 48 kHz... -
Page 47: System Specifications Ppa R38 Receiver
Personal PA DSP FM Wideband Transmitter ® System Specifications PPA R38 Receiver Dimensions 4.1” x 2.85” x 1.38” (104 x 72 x 35mm) Weight 4.6oz (130g) with batteries. 2.6oz (73g) without batteries Color Black/Silver. Black ABS Plastic case with Aluminum faceplate Battery Type (2) AA Alkaline or (2) AA NiMH Rechargeable Battery Life... -
Page 48: System Specifications Ppa R35-8 Receiver
Personal PA DSP FM Wideband Transmitter ® System Specifications PPA R35-8 Receiver Dimensions 4.1” x 2.85” x 1.38” (104 x 72 x 35mm) Weight 4.6oz (130g) with batteries. 2.6oz (73g) without batteries Color Black Battery Type Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hours battery life or Two (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx 32 hours battery life Current Consumption Nominal 40 mA Operating Freq 72-76 MHz, 8 channels: 72.1, 72.3, 72.6, 72.8, 74.7, 75.4, 75.7, or 75.9 MHz... -
Page 49: System Specifications Ppa R37 Receiver
Personal PA DSP FM Wideband Transmitter ® System Specifications PPA R37 Receiver Dimensions 4.1” x 2.85” x 1.38” (104 x 72 x 35mm) Weight 4.6 oz (130 g) with batteries. 2.6 oz (73 g) without batteries Color Black Battery Type 2 AA Alkaline or 2 AA NiMH Battery Life Two AA non-rechargeable alkaline batteries (BAT 001), approx. -
Page 50: Lifetime Plus Limited Warranty
Williams Sound shall not be liable to any person or entity for any medical expenses or any direct, incidental or consequential damages caused by any use, defect, failure or malfunctioning of the product, whether a claim for such damages is based upon warranty, contract, tort or otherwise, the sole remedy for any defect, failure or malfunction of the products is replacement of the product. - Page 51 Personal PA DSP FM Wideband Transmitter ® This page intentionally left blank...
- Page 52 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2014 Williams Sound, LLC • All Rights Reserved MAN 176C...
