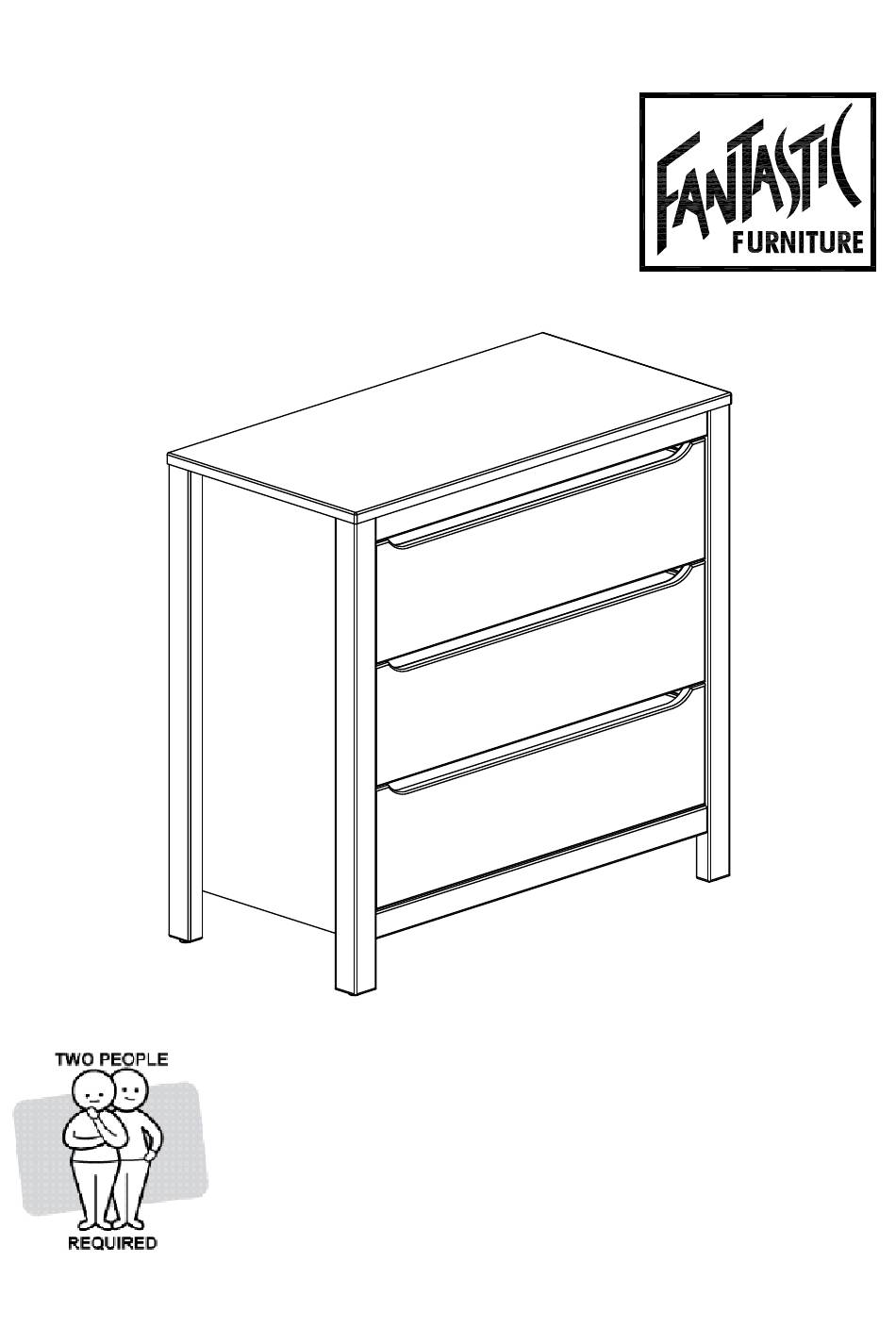

- Page 1 Version 1.0 Cooper Lowboy 3 Drawer www.fantasticfurniture.com.au...
- Page 2 WARNING: ENSURE THE WALL STRAP IS ATTACHED TO AVOID SERIOUS INJURY. To avoid any serious or fatal injury, this product has been provided with a wall strap to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface. Fixing devices are not included since different surface materials require different attachments.
-
Page 3: Assembly Checklist
Assembly checklist Make sure you have all the required tools. Read through the instructions carefully Never use power tools unless instructed. before you begin. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled. -
Page 4: What You Need
What You Need To Assemble the Product Other Tools You Need Phillips Head Screwdriver Right Side Panel Top Panel (P3) (P1) Top Panel Rail (P4) Part LIst Box 1: Back Panel 1 x Top Panel (P1); (P8) 1 x Left Side Panel (P2); 1 x Right Side Panel (P3);... - Page 5 Step 1 You will need 6 x Wooden Dowels (H3) Insert 2 x wooden dowels (H3) into the front rail (P5). Insert 2 x wooden dowels (H3) into the middle back support rail (P6). Insert 2 x wooden dowels (H3) into the bottom back support rail (P7). Step 2 You will need (P2)
- Page 6 Step 3 You will need 3 x Left Runner Phillips head Track (H7) screwdriver (P2) 9 x Wood Screws (H11) Fix 3 x left runner tracks (H7) to the left side panel (P2) with 9 x wood screws (H11) into the pre-drilled holes by tightening with a phillips head screwdriver.
- Page 7 Step 5 You will need 3 x Right Runner Phillips head Track (H8) screwdriver (P3) 9 x Wood Screws (H11) Fix 3 x right runner tracks (H8) to the right side panel (P3) with 9 x woodscrews (H11) into the pre-drilled holes by tightening with a phillips head screwdriver. Step 6 (P6) You will need...
- Page 8 Step 7 You will need 2 x Large Phillips head Cam Nuts (H2) screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 9 Step 9 back panel with lamination facing outside, informative label nearby top Turn the unit upright carefully, slip 2 x back panels (P8) into the grooves on the side panels (P2) & (P3). Step 10 You will need 6 x Large Cam Phillips head bolts (H1) screwdriver...
- Page 10 Step 11 You will need 6 x Large Phillips head Cam Nuts (H2) screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 11 Step 13 You will need (P8) 3 x Wood Phillips head Screws (H12) screwdriver (P8) 4 x Back Panel 4 x Wood Support (H15) Screws (H16) (H12) x 3 Fix the back panels (P8) to back support rail (P6) with 3 x wood screws (H12) by tightening with a phillips head screwdriver.
- Page 12 Step 15 You will need 12 x Large Phillips head Cam Nuts (H2) screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 13 Step 17 Slide the drawer base (P14) into the grooves of the drawer sides (P10 & P11) and the drawer front (P9). Repeat steps for the other two drawers. Step 18 You will need 18 x Wood Phillips head Screws (H4) screwdriver Use wood screws (H4) to fix the drawer back (P13) to drawer sides (P10 &...
- Page 14 Step 19 You will need Phillips head screwdriver 3 x Right Runner 3 x Left Runner (H9) (H10) Fix the left runner (H9) to the left drawer side (P10) and the right runner (H10) to the right drawer side (P11) with wood screws (H11) by tightening with the phillips head screwdriver. Repeat steps for the other two drawers.
- Page 15 Step 21 You will need We strongly advise that you use the wall safety strap provided to prevent the unit toppling. 1 x Wood Screws Phillips head (H4) screwdriver Fix the wall strap (H13) to the back of the top panel (P1) with a wood screw (H4) and sasher (H14) by tightening with the phillips head screwdriver.
- Page 16 PAGE 16 www.fantasticfurniture.com.au...
