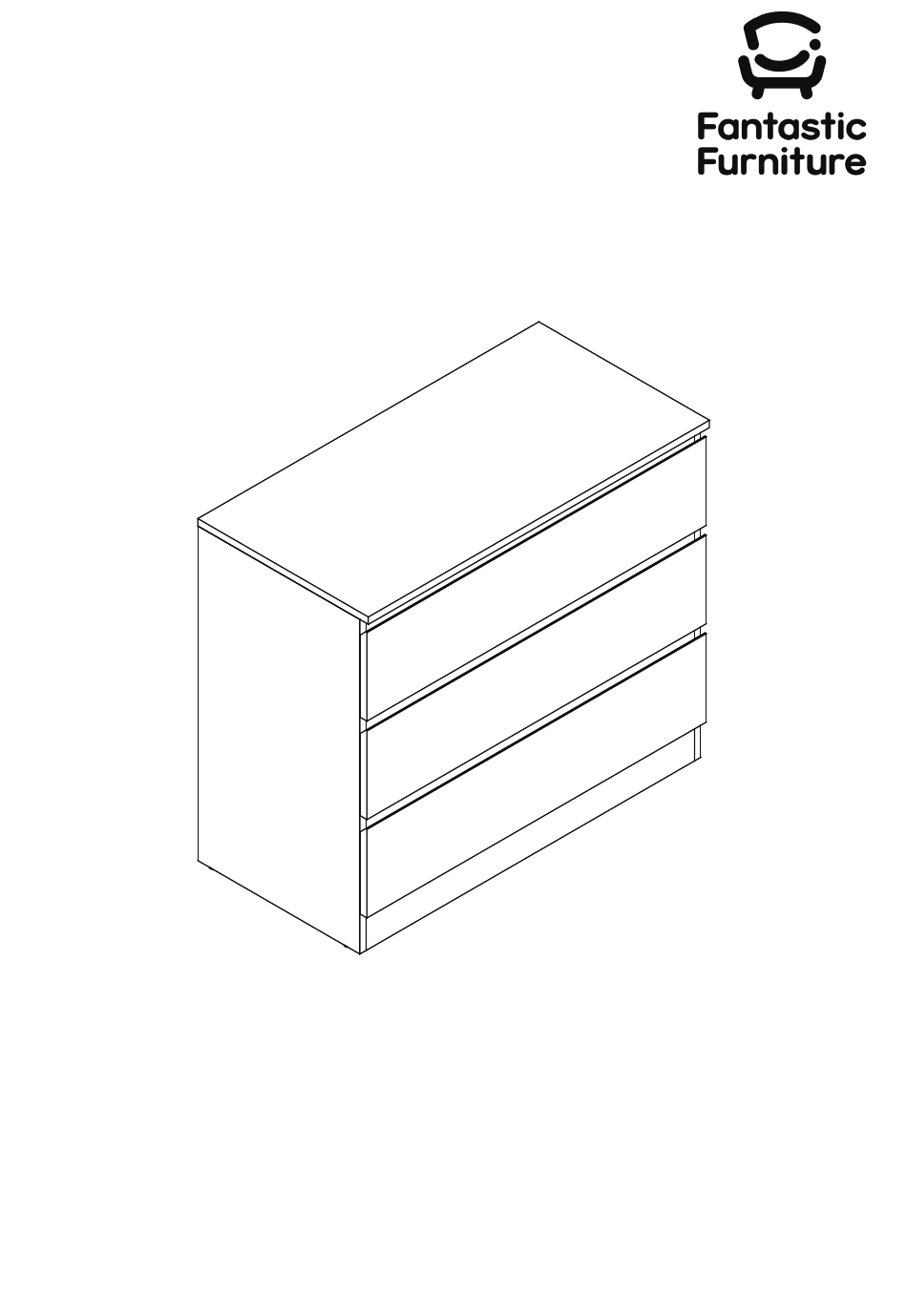

- Page 1 Version 1.0 Como Dresser 3 Drw fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
Top Panel What you need (P1) to assemble the product Rail (P4) 2 x Back Rail Panels (P7) (P9) DO NOT USE Right Side Rail Panel Connect Stick Other tools you need: (P5) (P3) (P10) Phillips head screwdriver; Hammer Rail (P4) Left Side Parts list... - Page 5 Step 1 You will need 3 x CL Runne 9 x Small Tracks (H6) Screws (H5) (P2) Phillips Head Screwdriver Attach 3 x CL Runner Tracks (H6) to Left Side Panel (P2) with 9 x Small Screws (H5) by tightening with the Phillips Head Screwdriver. Step 2 You will need 3 x CR Runne...
- Page 6 Step 4 (P7) You will need (P4) (P8) Phillips Head 4 x Cam Nuts (P5) Screwdriver (H4) (P4) (P6) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 7 Step 6 You will need (P9) 18 x Small Phillips Head (P10) Screws (H5) Screwdriver (P9) Join 2 x Back Panels (P9) with Connect Stick (P10),then put into the groove on the back of the chest,screw it with 18 x Small Screws (H5) Step 7 20mm You will need...
- Page 8 Step 8 You will need 4 x Cam Bolts Phillips Head (H3) Screwdriver (P1) Attach 4 x Cam Bolts (H3) into Top Panel (P1) as shown. Step 9 You will need 6 x Dowels 4 x Cam Nuts (H1) (H4) (P3) Phillips Head Screwdriver...
- Page 9 Step 10 You will need 1 x Dowel 5 x Small Cam (H1) Bolts (H10) (P11) Phillips Head Screwdriver Insert 1 x Dowel (H1) into Drawer Front (P11) Attach 5 x Small Cam Bolts (H10) as shown. This is how a cam nut works..Step 11 The head of the cam (P12)
- Page 10 Step 13 H2 H2 You will need (P12) (P15) 6 x Long Phillips Head Screws (H2) Screwdriver (P13) Attach Drawer Back (P15) to Drawer Sides (P12,P13)with 4 x Long Screws (H2), then attach Drawer Back (P15) to Support Rail (P16) with 2 x Long Screws (H2). Make sure that the groove lines up the whole way around the drawer.
- Page 11 Step 16 Insert the assembled drawers into the corresponding compartments as shown. Ensure the drawers slide easily along the rails. Please make sure your chest is sitting squarely on the floor, then tighten all the screws and bolts – being careful not to over tighten fantasticfurniture.com.au Page 11...
-
Page 12: Job Complete
Step 17 We strongly advise that you use the wall safety strap provided to You will need prevent the unit toppling 1 x Safety Strap 1 x Screw (H12) (H13) Phillips Head 1 x Washer Screwdriver (H14) Attach Safety Strap (H12) to the Top Panel (P1) using 1 x Screw (H13) and 1 x Washer (H14) Step 22 You will need Seek advice from a qualified...
