fantastic furniture Cosmic Manual

fantastic furniture Cosmic Manual

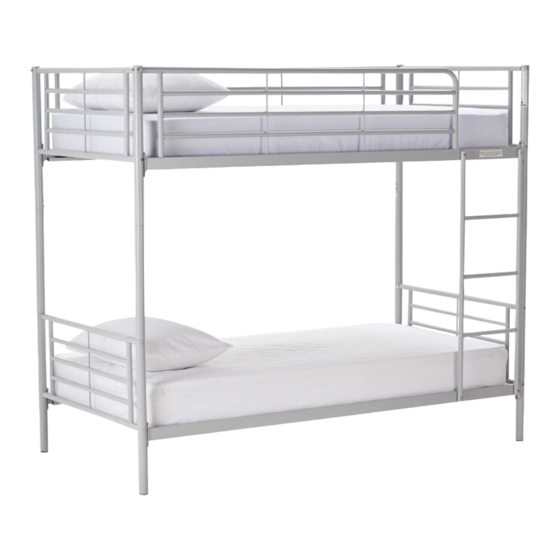

Bunk twin metal
Hide thumbs Also See for Cosmic:

Advertisement

Quick Links

Download this manual
Version 1.1
Cosmic
Bunk Twin Metal

Advertisement

loading

Related Manuals for fantastic furniture Cosmic

Summary of Contents for fantastic furniture Cosmic

  • Page 1 Version 1.1 Cosmic Bunk Twin Metal...
  • Page 4 Slats (P6) Top Post (P2) Panel(P1) Back Guard (P5) Top Post (P2) Front Guard (P4) Top Post (P2) Lower Post (P8) Mid Post (P7) Panel(P1) 4 x End Panels (P1) 3 x Top Posts (P2) Panel(P1) 1 x Top Post (P3) Mid Post (P7) Top Post...
  • Page 5 Step 1 (P7) (P7) You will need: 1 x Allen Key 8 x Large Bolts (H6) (P7) (P7) (H3) (P8) (P8) (H3) (P1) (P1) (H6) (P8) (P8) (H3) Insert 4 x Mid Posts (P7) into 4 x Lower Posts (P8), then attach these to 2 x End Panels (P1) using 8 x Large Bolts (H3) to connect, tightening with Allen Key (H6) to 70%, do not fully tighten yet.
  • Page 6 Step 3 You will need: (H4) 84 x Connectors (H4) (P6) (H4) Attach the 84 x Connectors (H4) to the 42 x Slats (P6). Step 4 (P10 ) (P9 ) Attach the 21 x Slats (P6) to Side Rails (P9 & P10). You will need to press down firmly for the connectors to slot into the holes on the side rails.
  • Page 7 Step 5 You will need: (P5) (H1) 1 x Allen Key 11 x Small Bolts (P2) (H6) (H1) (H1) (P2) (P4) (H1) (P2) (P3) Attach the Front Guard Rail (P4) to the Top Posts (P2 & P3) using 5 x Small Bolts (H1), tightening with the Allen Key (H6) to 70%, do not fully tighten yet.
  • Page 8 Step 7 (P5) (P4) Attach the 21 x Slats (P6) to Front Guard Rail (P4) and Back Guard Rail (P5). You will need to press down firmly for the connectors to slot into the holes on the side rails. Step 8 (P2) You will need: 1 x Allen Key...

  • Page 9: Job Complete

    Step 9 You will need: 4 x Medium Bolts 1 x Allen key (H2) (H6) (P11) (H2) (H2) (H6) Attach Ladder (P11) to the bunk using 4 x Medium Bolts (H2), tightening with Allen Key (H6). Important: Now fully tighten all bolts on the bunk. Step 10 Job Complete! In the interest of our environment please dispose of all packaging thoughtfully.
  • Page 10 Step 11 You will need: 1 x Allen Key (H6) (H6) (H2) Remove the Ladder (P11) from the bunk by loosening and removing all Medium Bolts (H2) with the Allen Key (H6). Step 12 You will need: 1 x Allen key (H6) (H6) (H6)

  • Page 11: You Will Need

    Step 13 You will need: (P2) 4 x Foot Endcaps (H5) (P2) (H5) (P2) (H5) (H5) (P3) (H5) Then insert 4 x Foot End Caps (H5) into the bottom of the Top Posts (P2 & P3). Step 14 (P7) You will need: (P7) 1 x Allen Key (H6)
  • Page 12 Step 15 You will need: 1 x Allen Key 4 x Foot Endcaps (H5) (H6) (H5) (H3) (H6) Re-insert and tighten the 4 x Large Bolts (H3) into the Lower Posts (P8) with the Allen Key (H6). Then insert the 4 x Foot End Caps (H5) into the top of the Lower Posts (P8).
