Summary of Contents for fantastic furniture Cosmic Triple Bunk Bed

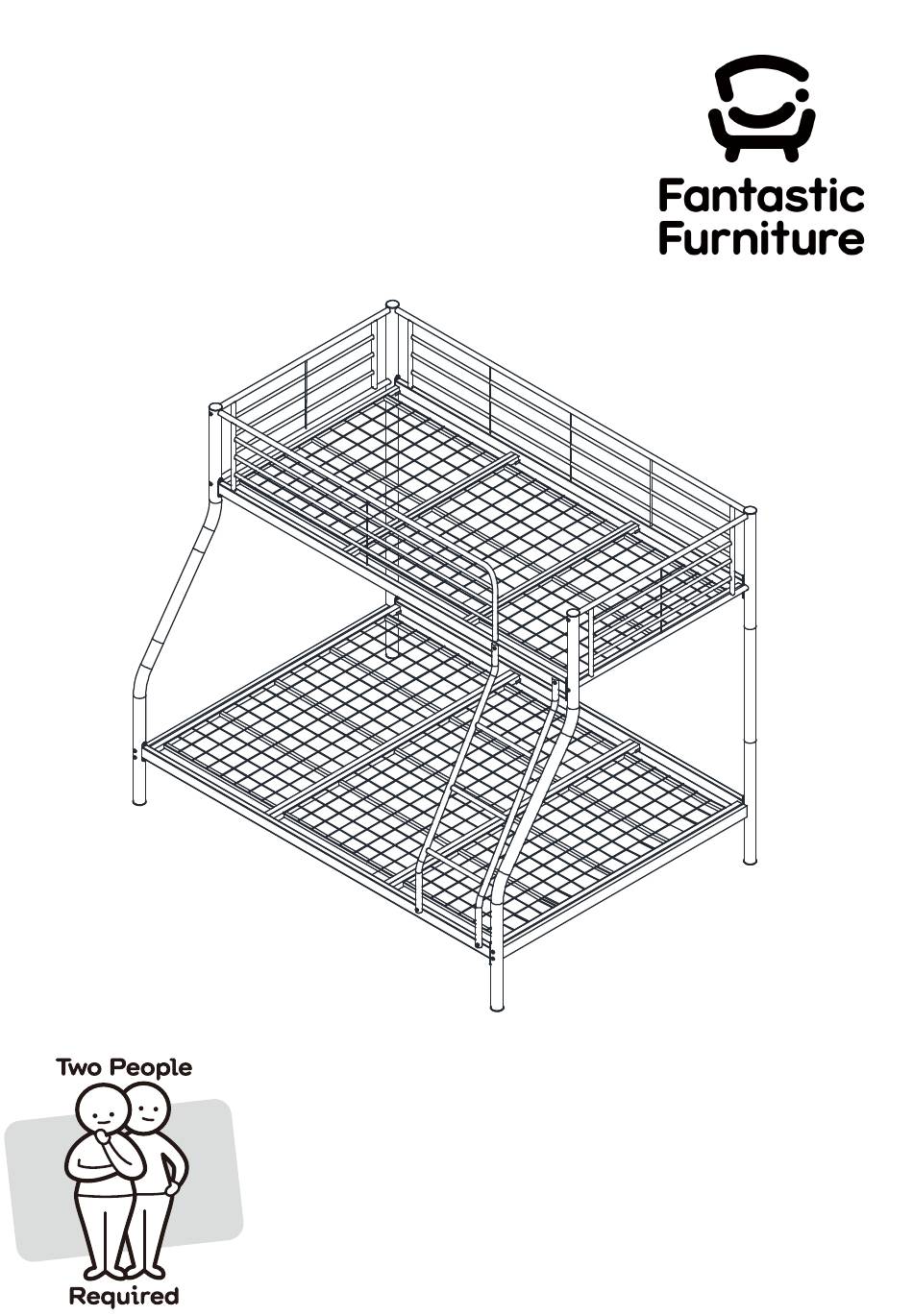

- Page 1 Version 1.1 Cosmic Bunk Triple fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
- Page 3 Assembly checklist R ead through the instructions carefully Ma ke sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten screws Identify and lay out all of the components before you begin assembly .
- Page 4 What you need 3 x Top to assemble the product Mesh Panels (P18) Upper 2 x End Panels Post (P7) (P3) Back Guard Rail (P2) Upper Post (P4) Upper Post (P6) Front Lower Guard Post (P12) Rail Lower (P1) 4 x Mid Upper Post (P10) Posts...
- Page 5 Step 1 (H9)(H1) You will need Left End (H9)(H1) 8 x Bolts Allen Key (P3) (H1) (H5) (H1) (H9) (H9) (H1) 8 x Washers (H9) Right End (H9) (H1) (P7) (H1) (H9) (P3) (P4) (H1) (H9) (H1) (H9) (H1)(H9) (H9) (H1) Attach Upper Posts (P4 &...
- Page 6 Step 3 You will need （H9） （H8） 8 x Bolts 4 x Bolts （H1） (H1) (H8) （H5） （H7） (P12) Allen Key Allen Key (H7) (H5) （H1） 8 x Washers (P11) (P14) (P16) (H9) （H8） （H1） （H1） (P10) (P13) (P16) （H8） Note: Postion of hole for ladder.
- Page 7 Step 5 You will need (H1) (P1) (H6) (H9) (P1) 1 x Bolts 6 x Bolts (H6) (H1) Allen Key 1 x Washer (H5) (H9) (H1) (P15) Attach the Front Guard Rail (P1) to the Upper Posts (P4 & P5) by first slotting the Rails onto the existing bolts in the Posts.
- Page 8 Step 7 (H4) You will need (P18) 12 x Bolts 12 x Bolts (H1) (H2) (H1) Allen Key 24 x Nuts (H4) (H5) (H4) (P19) (H2) Attach the 3 x Top Mesh Panels (P18) to the Guard Rails (P1 & P2) using 12 x Bolts (H1) and 12 x Nuts (H4) as shown tightening with 2 x Allen Keys (H5).
