modway 6412 Manual page 8

MOD - 6412

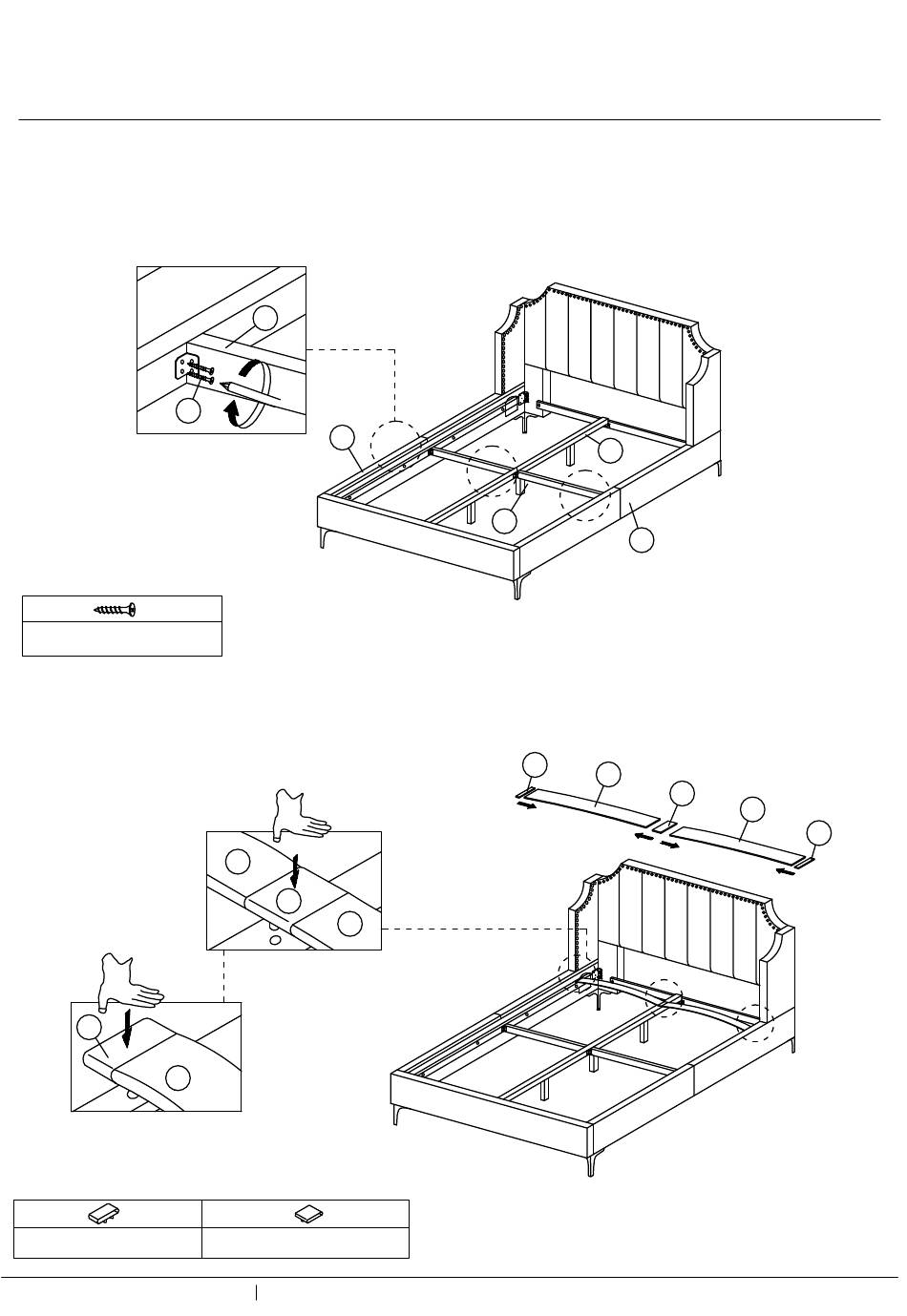

STEP 11
11.1 Insert and secure the Center Support (L) to the Center Rail (J) & Side Rail (F)
using hardware parts WOOD SCREW (12).
12
12. SCREW M3.5 x 16mm x 8pcs
STEP 12
12.1 Insert the Slats (M) into the end SLAT CAP (10) & (11) and fix it to the corresponding
holes on the Side Rail (F) .
Palm
10
M
STEP 12.2
10. BED SLAT SIDE FITTER x 26pcs 11. BED SLAT CENTER FITTER x 13pcs
Customer Service 609-256-9000 www.modway.com
L
F
Screw Driver
Palm
M
11
M
STEP 12.1
J
L
F
10
M
11
M
10
08 of 09
