MOD - 6412

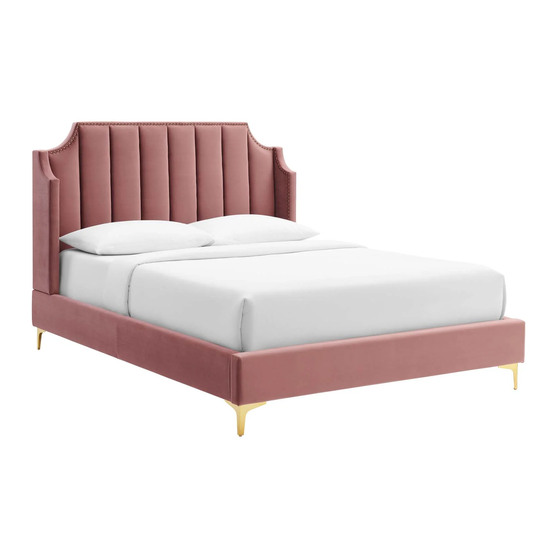

Thank you for purchasing the MODWAY BED!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.
2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 35 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save tools that have been provided.
6. Please keep all fitting out of reach of children.
Component:
A.
HEADBOARD
B.
HEADBOARD LEG
C.
HEADBOARD SUPPORT WOOD
D.
HEADBOARD SUPPORT RAIL
E.
FOOTBOARD
F.
SIDE RAIL
G.
HEADBOARD WING
H.
SIDE RAIL SUPPORT WOOD
I.
BED LEG
J.
CENTER RAIL
K.
CENTER SUPPORT LEG
L.
CENTER SUPPORT
M.
BED SLAT
Customer Service 609-256-9000 www.modway.com
M
x 1
x 2
x 2
x 1
x 1
x 2
x 2
x 2
J
x 4
x 1
x 3
x 2
x 26
Hardware:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
L
K
F
I
E
JCBC BOLT M6 x 20mm
JCBC BOLT M6 x 45mm
JCBB BOLT M8 x 40mm
JCBB BOLT M8 x 45mm
M6 SPRING WASHER
M6 FLAT WASHER
M8 SPRING WASHER
M8 FLAT WASHER
WOOD DOWEL M8 x 30mm
BED SLAT SIDE FITTER
BED SLAT CENTER FITTER
WOOD SCREW M3.5 x 16mm
WOOD SCREW M4 x 20mm
M4 ALLEN KEY (BALL SHAPE)
M5 ALLEN KEY (BALL SHAPE)
A
D
H
8 PCS
14 PCS
6 PCS
4 PCS
8 PCS
14 PCS
10 PCS
10 PCS
4 PCS
26 PCS
13 PCS
8 PCS
2 PCS
1 PC
1 PC
G
C
B
01 of 09
Advertisement
Related Manuals for modway 6412
Summary of Contents for modway 6412
- Page 1 MOD - 6412 Thank you for purchasing the MODWAY BED! Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions. 2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 MOD - 6412 STEP 1 1.1 Attach the Headboard Leg (B) & Headboard Support Wood (C) to the Headboard (A) using hardware part BOLT (3), BOLT (4), SPRING WASHER (7), FLAT WASHER (8) & ALLEN KEY (15). 3. JCBB BOLT M8 x 40mm x 4pcs 4.
- Page 3 MOD - 6412 STEP 2 2.1 Attach the Headboard Support Rail (D) to the Headboard (A) using hardware part BOLT (3), SPRING WASHER (7), FLAT WASHER (8) & ALLEN KEY (15). 2.2 Loosen the pre-inserted bolt on the Headboard (A) & Footboard (E) using hardware part ALLEN KEY (15).
- Page 4 MOD - 6412 STEP 3 3.1 Attach the Side Rails (F) to the Headboard (A) & Footboard (E) using hardware part ALLEN KEY (15). 15. ALLEN KEY (BALL SHAPE) M5 STEP 4 4.1 Attach the hardware parts WOOD DOWEL (9) to the Headboard Wing (G) .
- Page 5 MOD - 6412 STEP 5 5.1 Attach the Headboard Wing (G) to the Headboard (A) using hardware parts BOLT (2) , FLAT WASHER (6) & ALLEN KEY (14). 2. JCBC BOLT M6 x 45mm x 4pcs 6. M6 FLAT WASHER x 4pcs 14.
- Page 6 MOD - 6412 STEP 7 7.1 Attach the Side Rails Support Wood (H) to the Side Rail (F) using hardware parts BOLT (2) & ALLEN KEY (14). 2. JCBC BOLT M6 x 45mm x 8pcs 14. ALLEN KEY (BALL SHAPE) M4 STEP 8 8.1 Attach the Bed Leg (I) to the Headboard (A) and Footboard (E) using hardware parts...
- Page 7 MOD - 6412 STEP 9 9.1 Fasten Center Support Leg (K) to Center Rail (J) attach by screwing the protruding nut into the corresponding holes. STEP 10 10.1 Make sure the sticker "HEADBOARD" faced to Headboard (A) 10.2 Locate Center Rail (J) into the corresponding brackets inside of Headboard (A) and Footboard (E) using hardware parts WOOD SCREW (13) .
- Page 8 MOD - 6412 STEP 11 11.1 Insert and secure the Center Support (L) to the Center Rail (J) & Side Rail (F) using hardware parts WOOD SCREW (12). 12. SCREW M3.5 x 16mm x 8pcs Screw Driver STEP 12 12.1 Insert the Slats (M) into the end SLAT CAP (10) & (11) and fix it to the corresponding holes on the Side Rail (F) .
- Page 9 MOD - 6412 STEP 13 13.1 Carefully position the assembled bed to the desired location by four adults. Assembly is complete. The bed is ready to use now! NOTE: Hardware may loosen over time. Periodically check that all connections are tight.
