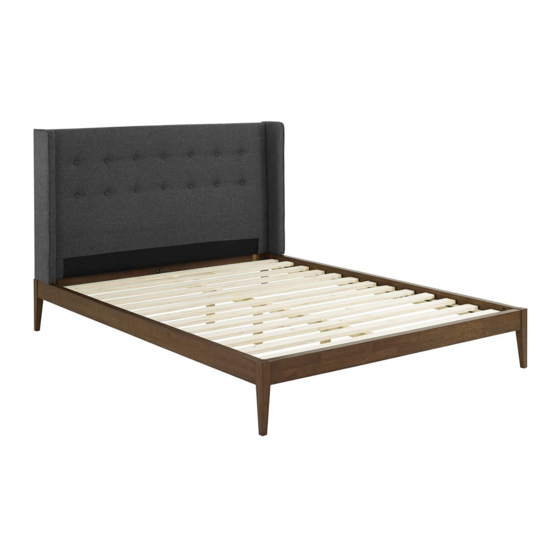

MOD-6003 QUEEN BED
Thank you for purchasing the MODWAY BED!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.
2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save tools that have been provided.
6. Please keep all fitting out of reach of children.

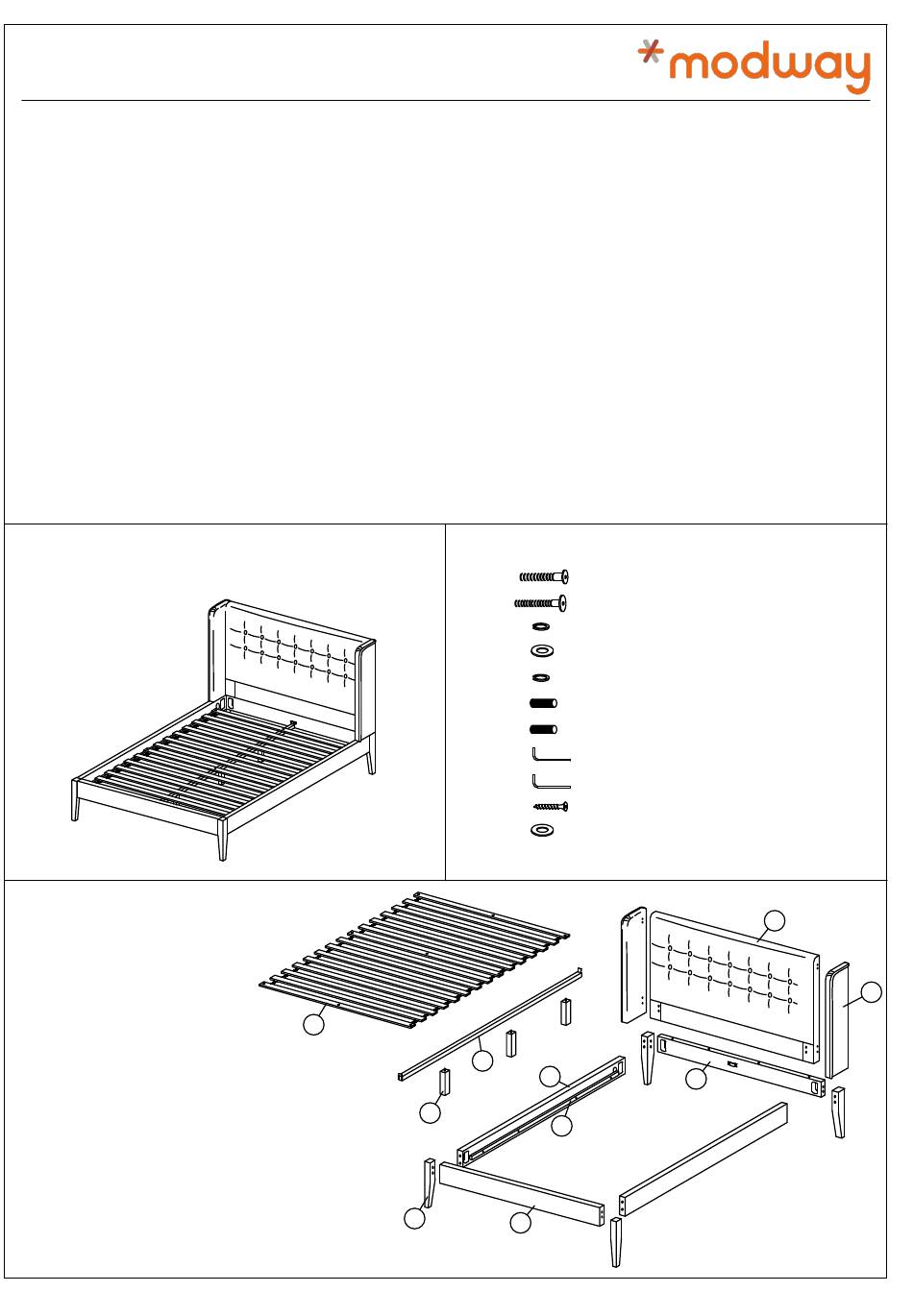

Component:
A.
HEADBOARD
x 1
B.
x 2
HEADBOARD WING (L&R)
C.
HEADBOARD SUPPORT
x 1
D.
FOOTBOARD
x 1
E.
SIDE RAIL (L&R)
x 2
F.
CENTER RAIL
x 1
G.
CENTER SUPPORT LEG
x 3
H.
LEG
x 4
I.
BED SLAT
x 1
J.
SIDE RAIL SUPPORT
x 2
Hardware:
1
2
3
4
5
6
7
8
9
10
11
I
F
G
H
JCBC BOLT M6 x 45
JCBB BOLT M8 x 50
SPRING WASHER M6
FLAT WASHER M6
SPRING WASHER M8
WOOD DOWEL M8 x 30mm
WOOD DOWEL M10 x 30mm
ALLEN KEY (BALL SHAPE) M4
ALLEN KEY (BALL SHAPE) M5
WOOD SCREW M4 x 38mm
FLAT WASHER M8
E
J
D
18 PCS
16 PCS
10 PCS
8 PCS
16 PCS
4 PCS
8 PCS
1 PC
1 PC
9 PCS
16 PCS
A
C
01 of 07
B
Advertisement
Related Manuals for modway MOD-6003
Summary of Contents for modway MOD-6003
- Page 1 MOD-6003 QUEEN BED Thank you for purchasing the MODWAY BED! Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions. 2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 MOD-6003 QUEEN BED STEP 1 1.1 Fasten center support leg (G) to center rail (F) attach by screwing the protruding nut into the corresponding holes. 1.2 Fit wood dowels (6) into HEADBOARD WING (L&R) (B). 6. WOOD DOWEL M8 x 30mm x 4pcs 1.3 Fit wood dowels (7) into LEG (H).
- Page 3 MOD-6003 QUEEN BED STEP 2 2.1 Insert and secure the headboard wing (B) to the headboard (A) using hardware parts 4,3,1 and 8. Repeat the same for other side of headboard wing. (Note : Don't screw tied). STEP A STEP B 1.
- Page 4 MOD-6003 QUEEN BED STEP 3 3.1 Insert and secure the headboard support (C) and footboard (D) to the side rail (E) using hardware parts 2,5,11 and 9. Repeat the same for other side of side rail. STEP A STEP B 2.
- Page 5 MOD-6003 QUEEN BED STEP 4 4.1 Locate center rail (F) into the corresponding brackets inside of headboard support (C) and footboard (D). STEP 5 5.1 Insert and secure the headboard (A) to the headboard support (C) using hardware parts 1,3,4 and 8. Repeat the same for other side of side rail.
- Page 6 MOD-6003 QUEEN BED STEP 6 6.1 Insert and secure the headboard wing (B) to the side rail (E) using hardware parts 1,3 and 8. Repeat the same for other side of side rail. (Finish step 6, Please screw tied the step 2 bolt & step 5 bolt.) 1.
- Page 7 MOD-6003 QUEEN BED STEP 8 8.1 Assemble bed slat (I) into bed frame in between side rail ( E) and center rail (F) screw it using hardware parts 10 . 10. WOOD SCREW M4 x 38mm x 9pcs STEP 9 9.1 Carefully position the assembled bed to the desired location by four adults.
