modway 6412 Manual page 6

MOD - 6412
STEP 7

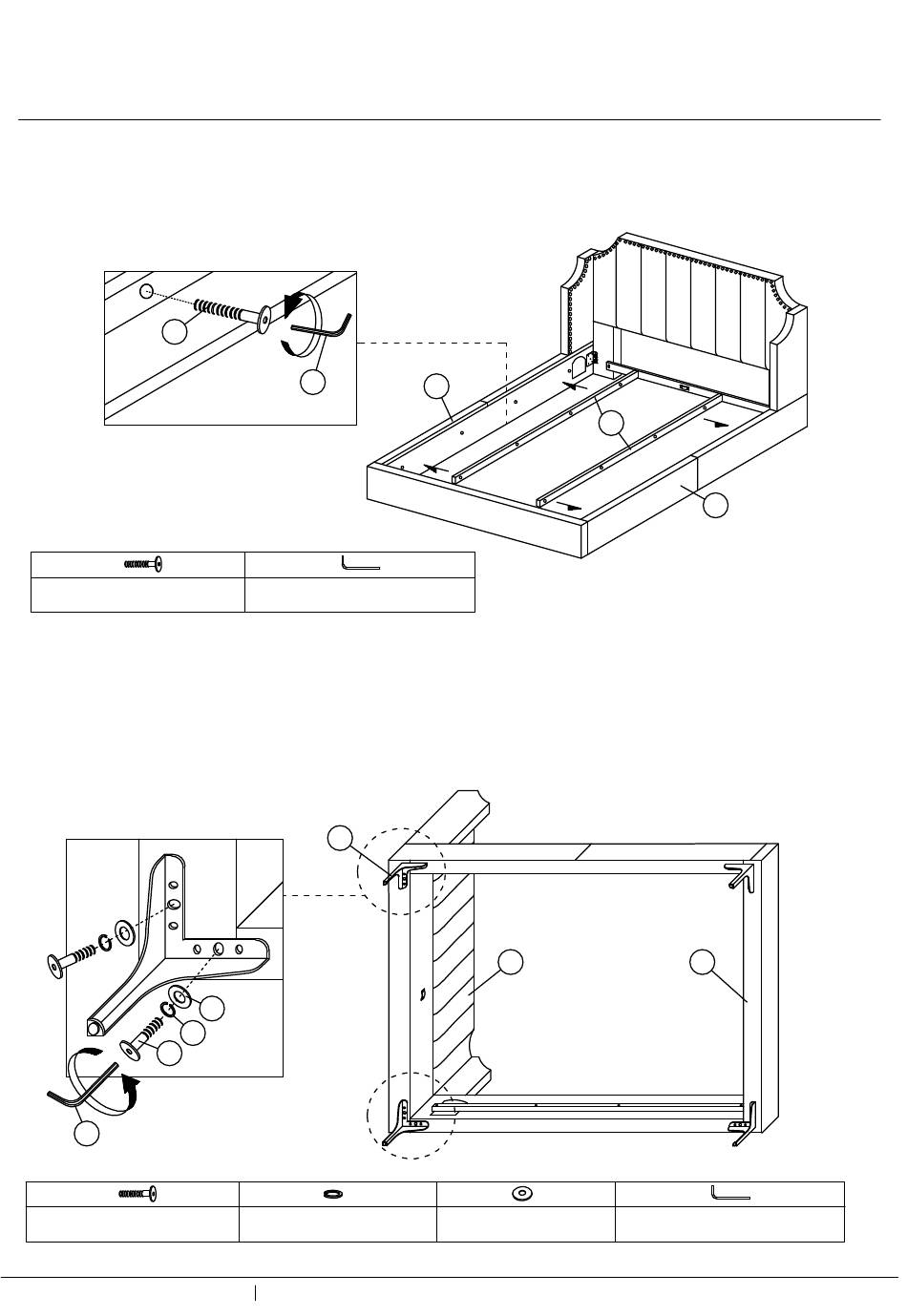

7.1 Attach the Side Rails Support Wood (H) to the Side Rail (F) using hardware parts
BOLT (2) & ALLEN KEY (14).
2
2. JCBC BOLT M6 x 45mm x 8pcs
STEP 8
8.1 Attach the Bed Leg (I) to the Headboard (A) and Footboard (E) using hardware parts
BOLT (1), SPRING WASHER (5), FLAT WASHER (6) & ALLEN KEY (14).
NOTE :
Make sure the floor is clean and smooth,when put down the bed to prevent scratches.
(Need two men to lift)
1
14
1. JCBC BOLT M6 x 20mm x 8pcs
Customer Service 609-256-9000 www.modway.com
14
14. ALLEN KEY (BALL SHAPE) M4
I
6
5
5. M6 SPRING WASHER x 8pcs
F
A
6. M6 FLAT WASHER x 8pcs
H
F
B
14. ALLEN KEY (BALL SHAPE) M4
06 of 09
