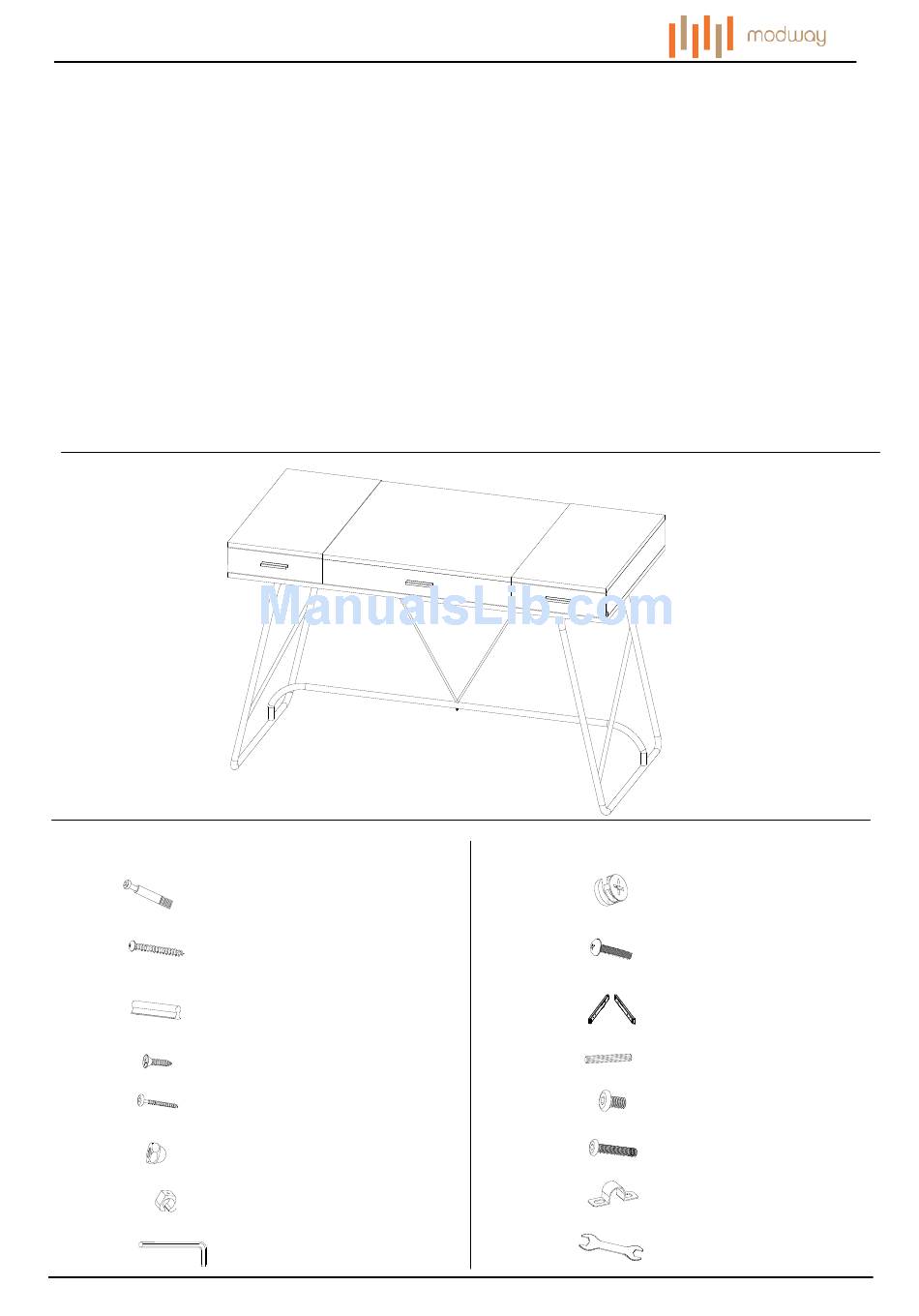

EEI -1321

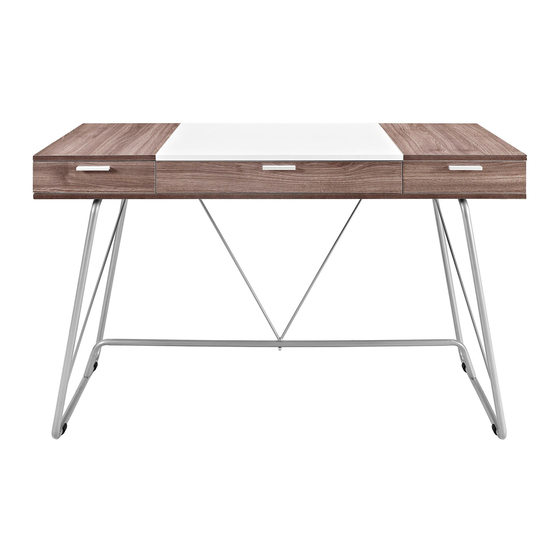

DESK
Thank you for purchasing the MODWAY DESK！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the desk, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 45 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Hardware:
a
c
e
g
j
m
o
q
Customer Service 908-368-1025︱www.modwayfurniture.com
Cam
x18
Screw M4x35mm x12
Pull x3
Screw M4x14mm x24
Bolt M5x55mm x12
Nut
x1
Plastic Pad
x4
Allen Wrench x1
b
Pull Screw M4x18mm
d
f
h
k
n
p
r
Cam Post
x18
x6
Drawer Guides
x3 sets
Dowel
x29
Bolt M6x12mm
x10
Bolt M6x35mm
x4
Connect Metal Plate
x4
Open Wrench
x1
Page 1 of 8
