- Page 1 WatchGuard AP322 Hardware Guide AP322...
- Page 2 Copyright© 2019 WatchGuard Technologies, Inc. All rights reserved. WatchGuard, the WatchGuard logo, LiveSecurity, and any other mark listed as a trademark in the “Terms of Use” portion of the WatchGuard Web site that is used herein are either registered trademarks or trademarks of WatchGuard Technologies, Inc.
-
Page 3: Hardware Specifications

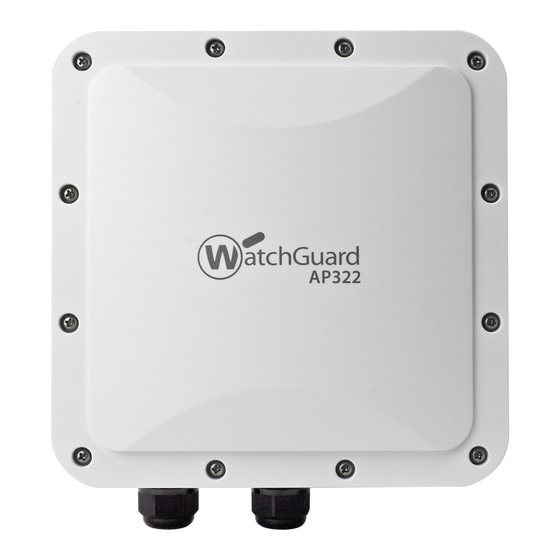

WatchGuard AP322 devices are intended for outdoor use and feature MIMO 802.11ac Wave 1 capability, and dual radios that supports 2.4GHz (802.11b/g/n) and 5GHz (11a/n/ac) to provide wireless clients with enhanced reliability and performance. -
Page 4: About Your Hardware
210mm × 210mm × 67mm Weight 3.22 lb. (1.46 kg) Environmental Requirements To safely install your WatchGuard AP, we recommend that you: Install the device indoors or outdoors, preferably under cover. Make sure the device has adequate clearance for air flow and cooling. -
Page 5: Hardware Description
LAN interface. For more information, see the Fireware Help. Reset Button Resets the WatchGuard AP to factory-default settings. You must use a paper clip or other small object to press the reset button through the hole. -
Page 6: Device Indicators
Hardware Specifications Device Indicators The side of the WatchGuard AP322 has these status indicators: AP Firmware 8.8.1 and Higher Power LAN 1 and 2.4 GHz and 5 GHz Status LAN2 Radios Powered off. No Ethernet Radio inactive. link. Green Powered on. Operating at normal Connected at Radio active. - Page 7 Not powered on or in startup process. Device Indicators in WIPS Mode These indicators are active when the AP is set to dedicated WIPS (Wireless Intrusion Prevention System) mode. For more information about WIPS mode, see the WatchGuard Wi-Fi Cloud help. Power LAN1 LAN2 2.4 GHz...
-
Page 8: Mounting Instructions
Your package includes the AP322 device, pole-mount, and wall-mount accessories. Pole Mount Installation Use the supplied pole-mounting accessories to install the AP322 on a pole. The MAC address and serial number of your AP are printed on a label on the back of the device. ... -
Page 9: Wall Mount Installation
Hardware Specifications Wall Mount Installation Use the supplied wall-mounting accessories to install the AP322 on a wall. The MAC address and serial number of your AP are printed on a label on the back of the device. Make sure you record this information before you mount the AP. -
Page 10: Connect The Ap
To power on and connect the AP322 to the network with PoE+: 1. Connect one end of the network interface cable to the LAN1 port on the AP322. 2. Connect the other end of the network interface cable to an Ethernet jack that provides 802.3at PoE+ power. - Page 11 You can power the WatchGuard AP with an optional Ethernet Power Injector. This PoE+ capable device allows you to power the WatchGuard AP through an existing Ethernet connection. With this feature, you do not have to position your WatchGuard AP near a power outlet.
- Page 12 Hardware Specifications Ethernet Power Injector Specifications Ethernet Power Injector WatchGuard Part # 802.3at PoE+ Injector with AC cord (US/FCC) (WG8599) 802.3at PoE+ Injector with AC cord (CE) (WG8600) 802.3at PoE+ Injector with AC cord (UK) (WG8601) 802.3at PoE+ Injector with AC cord (AUS) (WG8602) Specification IEEE 802.3at/af...
-
Page 13: Legal And Regulatory Information
When removing or installing an appliance, follow the general installation safety instructions. Disclaimer WatchGuard shall not be held liable if the end user alters, modify, or repairs any WatchGuard hardware appliance. Hardware Guide... - Page 14 Beim Entfernen oder Installieren eines Gerätes, nach den allgemeinen Installation Sicherheitshinweise. AVISO DE SEGURIDAD Todos los productos WatchGuard están diseñados y probados para satisfacer estrictos requisitos de seguridad. Estos requisitos incluyen la homologación de productos de seguridad y otras normas de cumplimiento global.
-
Page 15: Limited Hardware Warranty
2. REMEDIES. If any Product does not comply with the WatchGuard warranties set forth in Section 1 above, WatchGuard will, following the receipt of the product you claim is defective and at its option, either (a) repair the Product, or (b) replace the Product with a like or similar product; provided, that you will be responsible for returning the Product and for all costs of shipping and handling. - Page 16 UNDER THE WARRANTY DO NOT VIOLATE ANY THIRD-PARTY AGREEMENT TO WHICH THE ENTITY IS A PARTY. No change or modification of the Warranty will be valid unless it is in writing and is signed by WatchGuard. All WatchGuard products are designed and tested to meet strict safety requirements. These requirements include product safety approvals and other global compliance standards.
-
Page 17: Declaration Of Conformity
Legal and Regulatory Information Declaration of Conformity Declaration of Conformity WatchGuard Technologies Inc. hereby declares that the product(s) listed below conform to the European Union directives and standards identified in this declaration. Product (s): Wireless Access Point, WatchGuard Model AP322 EU Directive(s): Radio &... -
Page 18: Fcc Certification
Übereinstimmung mit der Bedienungsanleitung, kann es Störungen im Funkverkehr verursachen. Der Betrieb dieses Gerätes in einem Wohngebiet wird wahrscheinlich schädliche Interferenzen in dem Fall muss der Benutzer die Störungen auf seine / ihre eigene Kosten zu beheben. WatchGuard AP322... -
Page 19: Industry Canada Certification
Legal and Regulatory Information CE Notice The CE symbol on your WatchGuard Technologies equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU). This equipment should be installed and operated with minimum distance 24cm between the radiator & your body. -
Page 20: Mexico Nom
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 24cm de distance entre la source de rayonnement et votre corps. For Model No.: 0-90 / AP322 Ant. Brand Model No. - Page 21 Legal and Regulatory Information Europe – EU Declaration of Conformity (Wireless) This device complies with the essential requirements of the RED Directive 2013/53/EU. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the RED Directive 2013/53/EU: -EN60950-1/A12:2011+A2:2013 Safety of Information Technology Equipment...
- Page 22 Hereby, WatchGuard Technologies, declares that this AP322 is in compliance with the English essential requirements and other relevant provisions of Directive 1999/5/EC. Español Por medio de la presente WatchGuard Technologies declara que el AP322 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la [Spanish] Directiva 1999/5/CE.
-
Page 23: Rohs Statement
WEEE statutes, and that the recovery of our product per the specific EU country legislative requirements is seamless for our product’s end users. If you have a WatchGuard product that is at its end of life and needs to be disposed of, please contact WatchGuard Customer Care Department at: U.S. Customers: 877.232.3531... -
Page 24: Taiwan Class B Notice
In accordance with the regulations, the products of WatchGuard do not need to be registered for the following reasons: WatchGuard does not import more than 1 metric ton per year of a substance as defined by REACH. WatchGuard products are non-chemical products that are not designed to release any substance under normal and reasonably predictable application. -
Page 25: Japan Vcci Notice (Class B Ite)
Legal and Regulatory Information Japan VCCI Notice (Class B ITE) Hardware Guide... -
Page 26: Gnu General Public License ("Gpl")
General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or WatchGuard AP322... - Page 27 Legal and Regulatory Information a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope.
- Page 28 This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. WatchGuard AP322...
- Page 29 Legal and Regulatory Information 8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded.
- Page 30 Legal and Regulatory Information WatchGuard AP322...
