WatchGuard

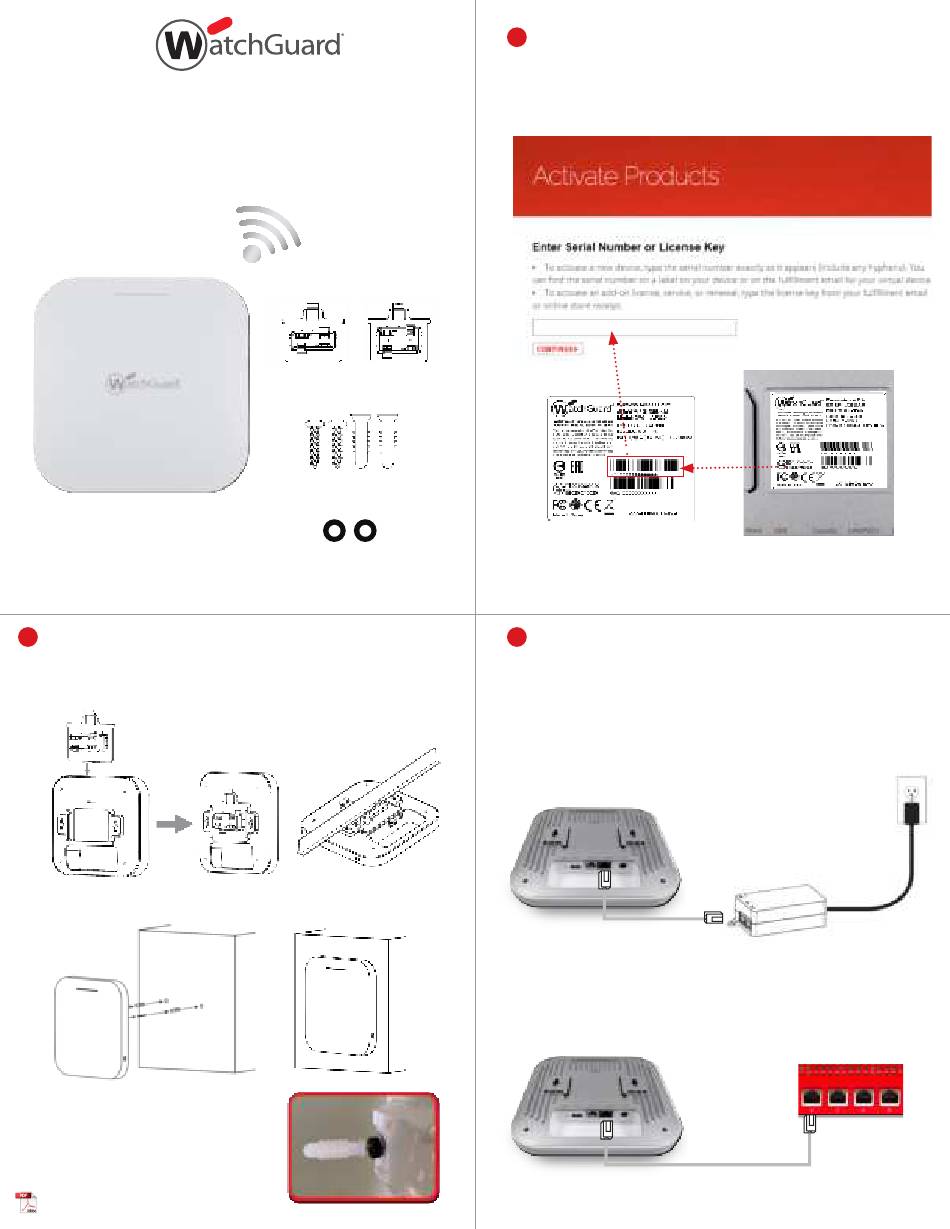

Quick Start Guide

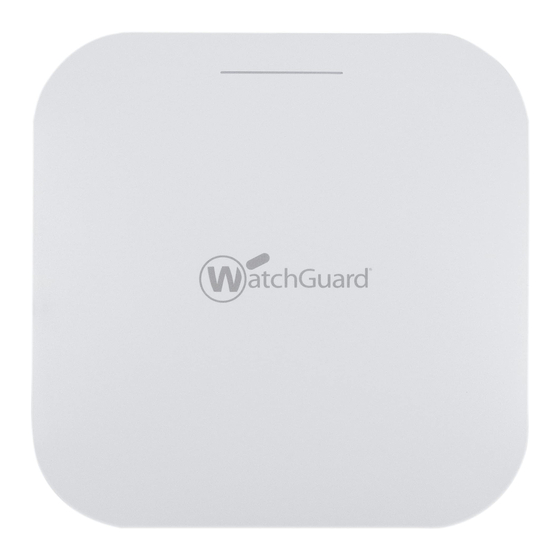

AP330
2
MOUNT THE AP
CEILING MOUNT
WALL MOUNT
Use the included spacers if you mount to a
wall with the 15/16" bracket attached to the
access point.
®
AP
(9/16" T-Rail)
(15/16" T-Rail)
Ceiling Mount Brackets
Wall Mount Screws
Spacers
1
ACTIVATE YOUR AP
GO TO:
watchguard.com/activate
3
CONNECT THE AP
Plug one end of the Ethernet cable from your network into
the LAN PoE+ port on the bottom panel of the AP. Make sure
the other end of the Ethernet cable is connected to your
network through a hub, switch, or injector with PoE+
(802.3at) power enabled.
Access Point connected to PoE+ injector
Access Point connected to switch with PoE+ power
PoE+

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Watchguard AP330

  • Page 1 ACTIVATE YOUR AP GO TO: watchguard.com/activate ® WatchGuard Quick Start Guide AP330 (9/16" T-Rail) (15/16" T-Rail) Ceiling Mount Brackets Wall Mount Screws Spacers MOUNT THE AP CONNECT THE AP Plug one end of the Ethernet cable from your network into CEILING MOUNT the LAN PoE+ port on the bottom panel of the AP.
  • Page 2 Additional information, including a full list of safety approvals, global compliance standards, and EN 55024: 2010+A1:2015 Immunity for ITE EN 55032:2015+A11:2020 certifications can be found in the Hardware Guide for this device located on the WatchGuard website: EN 55035: 2017 EN 61000-3-2:2014 Harmonics https://www.watchguard.com/wgrd-help/documentation/hardware-guides...
